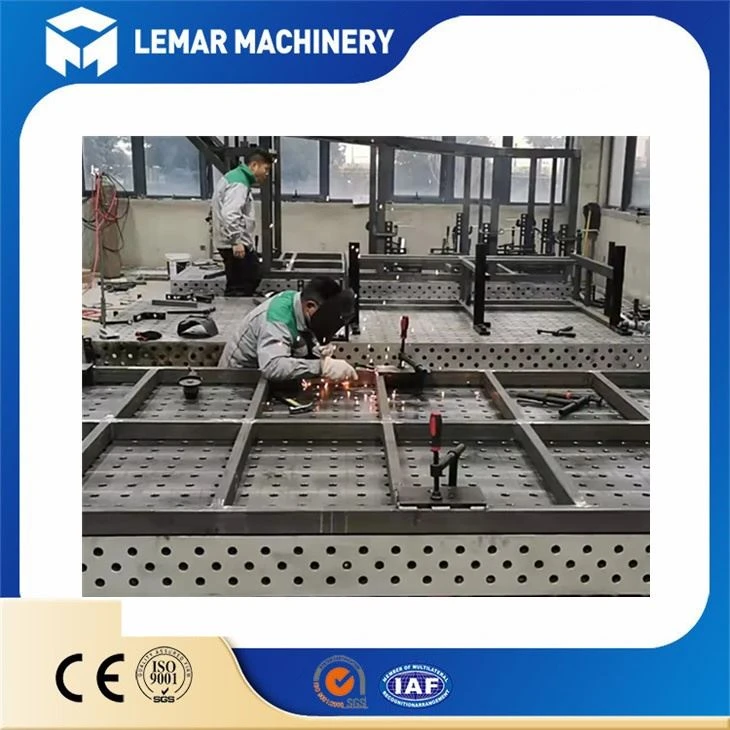

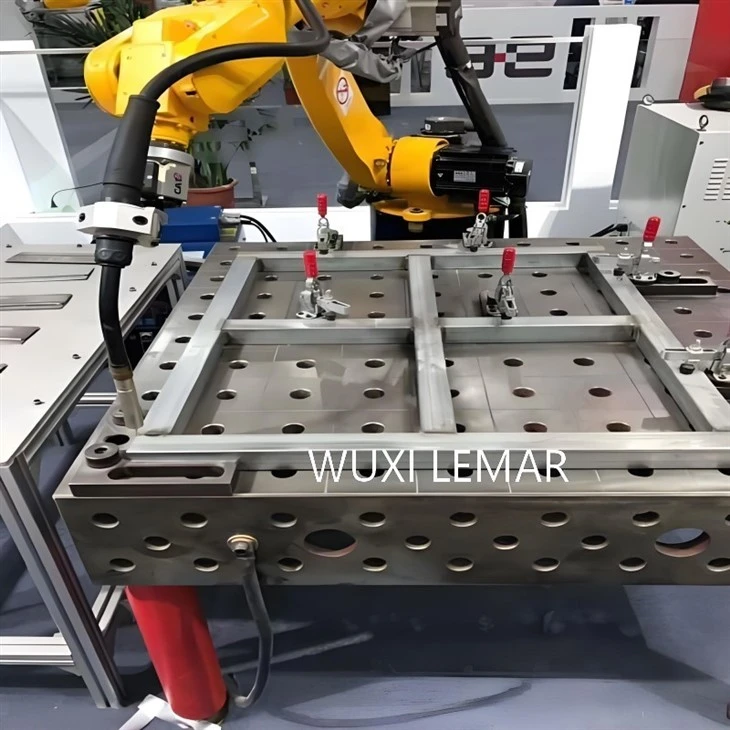

Durable 3D Welding Bench

Product preview

Durable 3D Welding Bench：Through a workbench surface covered with standardized grid holes, when used in conjunction with various functional fixtures and accessories, it can quickly and accurately position and clamp workpieces of almost any shape, thereby enabling operations such as welding, assembly, and inspection.

It is not just an ordinary flat workbench, but a highly modular and flexibly combinable welding fixture system.

Products parameters

table details

Products Description

Main components

A complete 3D welding platform system typically consists of the following components:

Workbench surface:

This is the foundation of the system. The surface is made of high-strength cast iron or steel, precision-machined, and covered with standardized grid holes arranged at certain intervals (such as 100mm x 100mm or 50mm x 50mm). These holes are square, which is the key to achieving 3D clamping.

"Durable" is mainly reflected in the high strength, high wear resistance, and deformation resistance of the tabletop material, ensuring that precision is maintained in long-term, heavy-load industrial environments.

Modular fixtures and accessories:

This is the "soul" of the system. It includes various types of quick clamps, positioning blocks, angle devices, support blocks, pressers, V-blocks, etc.

The connecting ends of these accessories are designed as square tenons that match the grid holes on the table surface. They can be easily inserted into any grid hole and firmly locked with a simple 90-degree rotation.

Basic framework:

It is usually a sturdy steel table frame, used to support the heavy workbench surface and work, and to ensure that the height of the entire platform conforms to ergonomics.

In conclusion, Durable 3D Welding Bench is more than just a "table"; it is a revolutionary flexible manufacturing system. It transforms welding fixtures from the traditional "fixed, dedicated" mode to a "flexible, universal" mode. Through its modular design, it achieves rapid, precise, and cost-effective workpiece clamping, making it an indispensable basic equipment in modern advanced manufacturing and intelligent manufacturing. For any enterprise involved in the welding and assembly of metal structural parts, investing in such a system can usually bring significant long-term returns.
