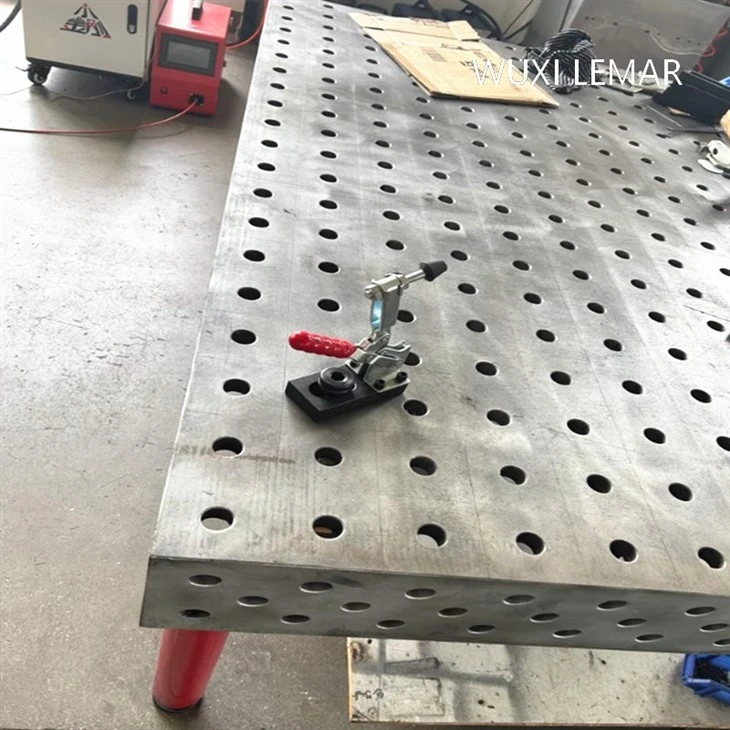

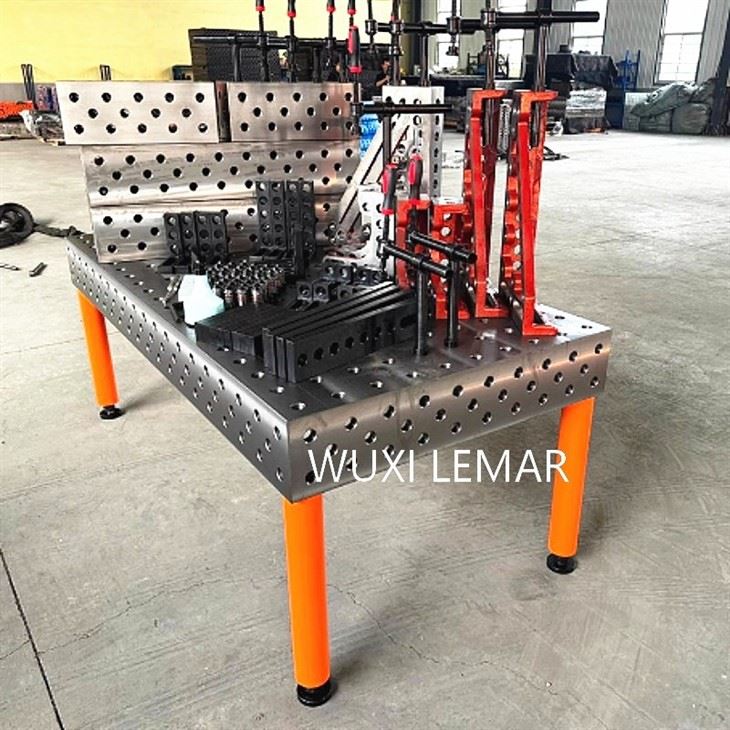

Jointing Table Fixture Welding Table
Core of Jointing Table Fixture Welding Table lies in the precision hole system on its platform.
Working principle:
Positioning: Based on the 3D drawings of the workpiece to be welded, use special positioning blocks, support blocks, angle gauges, etc., to fix them on specific holes of the platform, forming a "mold base" that matches the shape of the workpiece.
Clamping: Use tools such as pressure arms and quick clamps to firmly press the workpiece onto the positioning elements, ensuring that it cannot move at all during the welding process.
Welding: All parts to be welded of the workpiece are in the optimal position, allowing welders to perform high-quality, stress-free welding.
Disassembly and reassembly: After welding is completed, loosen the clamps and remove the workpiece. All fixture components can be easily disassembled for preparing the clamping of the next completely different workpiece.
Products parameters
Products Description
Construction machinery:
Welding of large structural components such as excavators and crane booms.
Automobile manufacturing:
Welding and inspection of body-in-white, chassis, and subframes.
Aerospace:
Assembly and welding of aircraft frames and engine components with extremely high precision requirements.
Rail transit:
Welding of components for high-speed rail and subway car bodies.
Robot welding units:
Serving as standardized and high-precision basic platforms for robot welding.
General equipment manufacturing:
Manufacturing of machine tool housings, racks, and various non-standard equipment.
