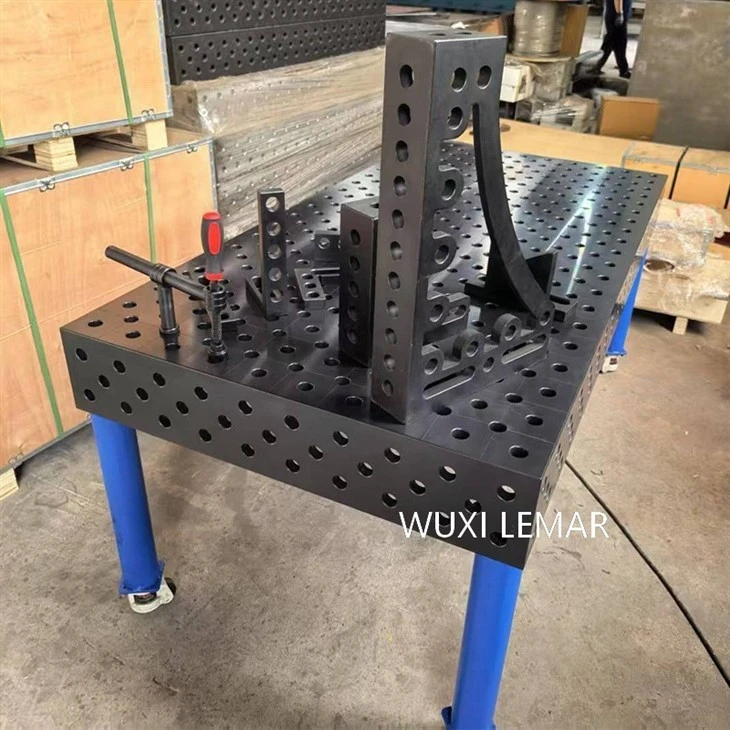

3D Welding Fixture Table Modular System

1. Basic platform (Table/Platen):
◦ Usually a heavy steel structure (such as ductile iron) to ensure rigidity and stability.
◦ The working surface of 3D Welding Fixture Table Modular System is covered with standard grid holes arranged regularly at uniform intervals (such as 100mm, 50mm or 2 inches in imperial units). The most common hole type is D28 countersink (a countersunk hole with a diameter of 28mm, with M16 or 3/4 inch threads at the bottom), and there are other specifications.
◦ The size can be large or small, ranging from desktop size to several meters square. Multiple platforms can also be spliced into a larger working area through special positioning pins and bolts.

2. Modular functional accessories:
◦ Supporting category: square boxes, L-shaped plates, U-shaped blocks, cushion blocks, etc. of various heights, used to raise workpieces.
◦ Positioning category: positioning pins, V-shaped blocks, stoppers, angle rulers, etc., used to determine the position and direction of workpieces.
◦ Clamping category: clamps, pressure rods, quick fixtures, bolts and nuts, etc., used to firmly fix workpieces.
◦ Connecting category: special stepped positioning pins, T-bolts, extension screws, etc., used to accurately and firmly lock accessories on the grid holes of the platform.
◦ Special category: angle adjusters, rotary discs, hydraulic or pneumatic components, etc., used to achieve complex positioning.
