Heavy-Duty Steel | D28 Modular Fixturing System
Height & Leveling Adjustable – Precision Meets Flexibility

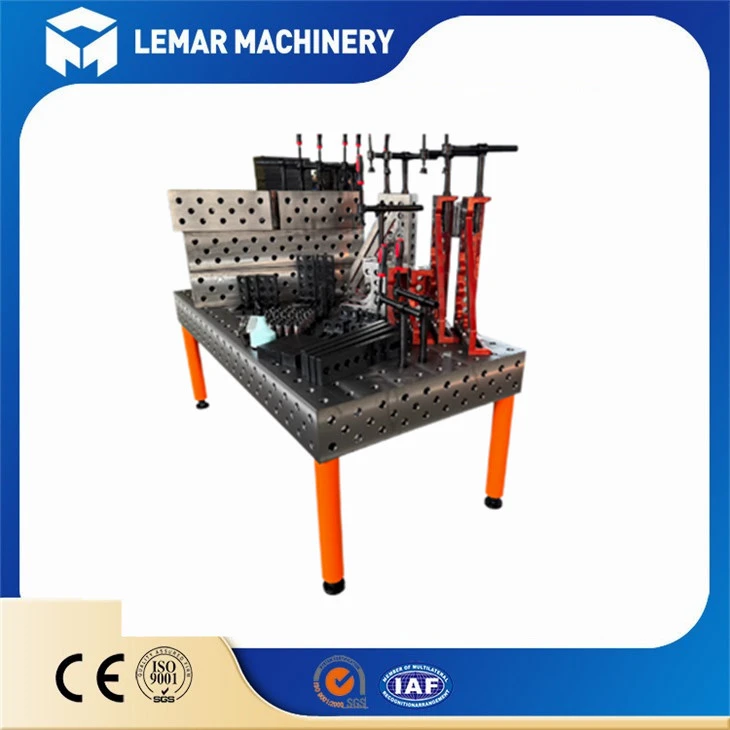

What is an Adjustable Welding Table?
An Adjustable Welding Table is a versatile workbench that combines a precision-ground steel top with height-adjustable legs or leveling feet. Unlike fixed tables, it allows you to change the working height, compensate for uneven floors, or tilt the surface for ergonomic welding positions.

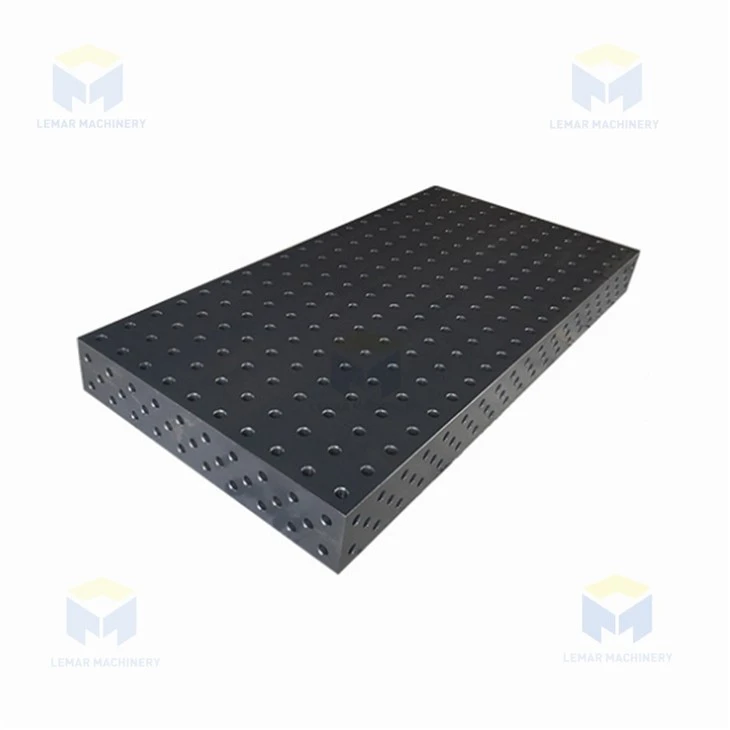

This model features a heavy-duty steel tabletop with the D28 hole system (Φ28mm holes on a 100x100mm grid) – the European standard for modular fixturing. The D28 system gives you instant access to thousands of compatible clamps, stops, and positioning tools.
services we offer
Product repair service
scheduled maintenance service
installation instruction service
programming instruction
product parameters
core advantage

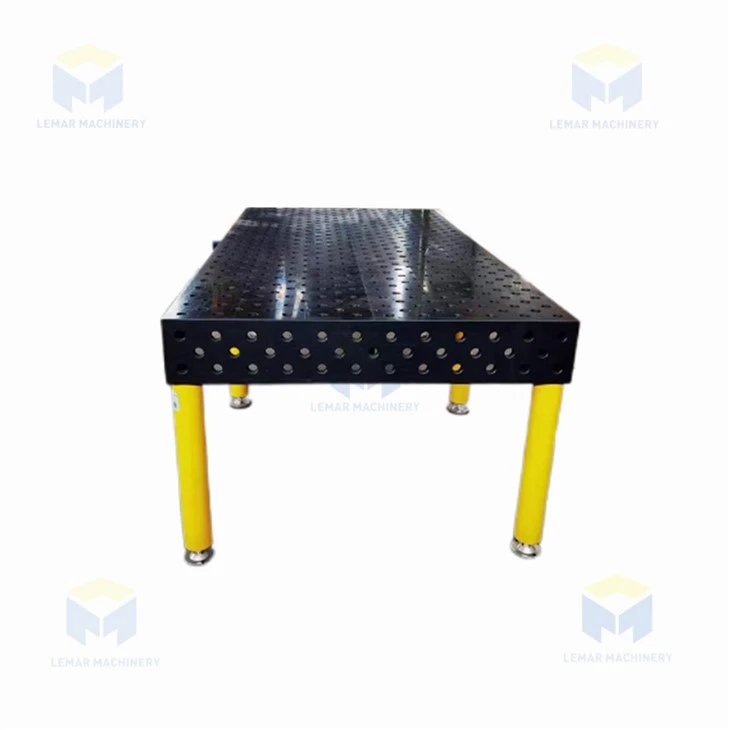

1.Adjustable Height & Leveling
Screw-type leveling feet or pin-lock leg system – adjust working height from approx. 750mm to 950mm (customizable).
Compensates for uneven floors – no more rocking or shimming.
Ergonomic benefit – match the table height to each operator or task, reducing fatigue.
2.D28 Modular Hole System (European Standard)
Φ28mm precision-bored holes on a 100mm x 100mm grid pattern.

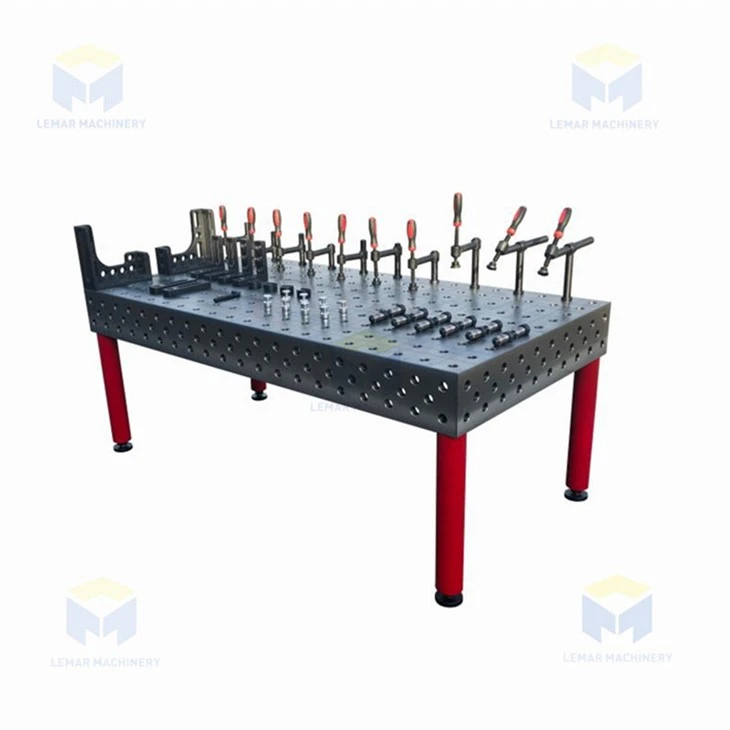

Compatible with all D28 tooling – locking pins, angle brackets, V-blocks, horizontal clamps, and stop blocks.
Quick changeover – reconfigure your fixture in minutes without welding or drilling.
Application Area
The Adjustable Welding Table with D28 holes is the backbone of flexible welding cells. Perfect for:
Custom fabrication shops – one table handles many different workpiece shapes.
Maintenance & repair – quick setups for odd-sized parts.
Prototype & R&D – frequent design changes require adjustable fixturing.
Small-batch production – no dedicated jigs; build fixtures on the fly.
Educational workshops – trains students on modular fixturing concepts.
Company Certification
Customer Feedback
Let us once again express our gratitude to our customers for their support.
Our Packaging
FAQ
Answering the following questions can roughly help you understand our products.
Q:1.Why choose a nitrided workbench over ordinary steel plate?
A:Ordinary plates require anti-spatter spray and rust oil daily. The nitrided surface is chemically hardened; spatter does not stick, and the table will not rust even in humid workshops for 3-5 years.
Q:2.What is the hole diameter? Are the accessories universal?
A: The standard is usually Ø28mm (heavy duty) or Ø16mm (light/medium). All standard clamping kits on the market are compatible. Please confirm diameter with our sales team.
Q:3.Is the 1500x3000mm table perfectly flat?
A: Yes. Factory tolerance is DIN 876/ISO Grade 2. Flatness is ≤0.1mm per square meter. However, if you weld directly on the surface without fixtures, localized heat may cause minor temporary distortion, but it will not permanently warp the plate.
Q:4.How do I clean the holes if spatter gets inside?
A: Nitriding makes the holes smooth. Usually, compressed air blower is enough. For stubborn cases, use a Ø27mm drill bit (by hand) to ream it out.
Q:5.Can I install this on a low-clearance workbench?
A: This 1500x3000 size is heavy. It is best placed on heavy-duty legs or a steel frame base (sold separately or as a bundle). Do not put it on wooden cabinets.
Q:6.What is the lead time?
A:Standard 25mm thickness usually 5-10 days. Custom thickness or special hole patterns require 15-20 days.
Call to Action
📧 Email: evasummer@lemarmetal.com
📱 WhatsApp / WeChat: +8615995269947
💬 Facebook Messenger: Eva Lemarweldingtable
🌐 Official website: www.lemarmachine.com
The adjustable welding workbench can significantly improve the welding efficiency and accuracy through flexible adjustment of height and Angle, especially suitable for multi-variety, small-batch production or complex parts processing. When selecting, it is necessary to comprehensively consider the adjustment mode, bearing requirements and expansion functions.
