Grid Holes Nitrided Surface 3D Welding Table

--Nitrided steel part mesh hole surface | 3D modular welding system | Wear-resistant, rust-proof, high-precision--

🔥Is your welding platform still troubled by wear and rust?

Pain Point	Problem with Ordinary Tables	Our Nitrided Steel Solution
🔩 Hole Wall Wear	Hole diameter enlarges after frequent clamping, causing loose fit	Nitrided treatment, surface hardness ≥ HV 600, wear resistance increased by 3 times
🧪 Rust & Corrosion	Rust preventive oil evaporates, table surface becomes rusty	Dense nitrided layer, excellent anti-rust performance, no frequent oiling required
⚙️ Precision Loss	Flatness deteriorates after long-term use	Low nitriding temperature, no deformation, precision maintained long-term
💰 Maintenance Cost	Frequent grinding, oiling, and clamp replacement	One-time investment, maintenance cost reduced by 70%

If you're fed up with the predicament of welding platforms that "wear out after a year and rust after half a year" -
then this set of nitrided steel mesh hole surface 3D welding platforms is the answer you've been waiting for.
👇 Read on to find out how the nitrided surface makes the welding platform "harder". 👇

What is a nitrided welding platform?

Nitriding is a chemical heat treatment process that infiltrates nitrogen atoms into the surface of steel to form a hard nitrided layer. Unlike traditional anti-rust oil or ordinary coatings, the nitrided layer is a surface-hardened layer integrated with the substrate, which does not peel off, is not easy to wear, and provides long-term rust resistance.

Our Grid Holes Surface 3D Welding Table adopts a steel substrate + precision nitriding treatment, perfectly combining the flexibility of the grid hole surface system with the durability of the nitrided surface, providing professional welding workshops with a truly "durable" tooling platform.

Table Specifications

More details feel free to contact our sales engineer:Eva(Email:evasummer@lemarmetal.com)

16series welding fixture table

28holes 3d welding table

welding table size

Technical Specifications

Parameter	Specification
Product Name	Grid Holes Nitrided Surface 3D Welding Table
Material	Q355B / Q460C High Strength Structural Steel
Surface Treatment	Precision Nitrided
Surface Hardness	HV 550-600
Nitrided Layer Depth	0.15 – 0.25 mm
Hole Specifications	D16 (Ø16mm, 50×50mm Grid) / D28 (Ø28mm, 100×100mm Grid)
Hole Position Accuracy	D16: ≤ ±0.05mm / D28: ≤ ±0.10mm
Flatness	≤ 0.15 mm/m²
Table Thickness	20 / 25 / 30 mm (Customizable)
Load Capacity	5 – 12 Tons (Depending on thickness)
Standard Sizes	1000×600 / 1200×800 / 1500×1000 / 2000×1000 / 2000×1500 mm
Customization Options	Non-standard sizes, special hole patterns, custom thickness
Packaging	Export Wooden Case + Shockproof Protection
Lead Time	Standard Sizes: 7-10 days / Custom Sizes: 15-25 days

Product Display

--See It In Action--

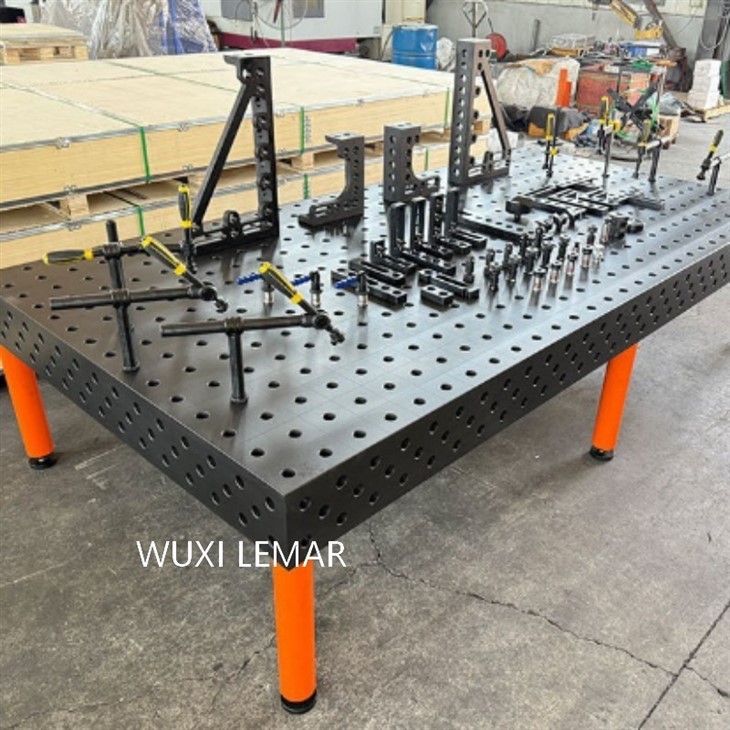

Complete System

Full table with fixture kit display

Heavy Load

Supporting 2000kg steel beam.

3D Fixturing

Angle rulers holding vertical parts.

Bottom structure

Reinforced ribs, solid and durable

Contact now

Applications Area

★ In the precision manufacturing industry, this nitrided welding table is ideal for high-precision welded components. The nitrided surface ensures long-term hole position accuracy, guaranteeing consistent repeat positioning for demanding applications.

★For automotive parts manufacturing, including chassis components and structural parts, the table handles high-frequency clamping with ease. The nitrided hole walls provide exceptional wear resistance, preventing loosening even after thousands of clamping cycles.

★In the construction machinery sector, where workpieces such as excavator arms and loader frames are heavy and often welded outdoors, the nitrided platform delivers excellent anti-rust and corrosion resistance while maintaining stability under heavy loads.

★For mold repair applications involving frequent mold patching and fixture changes, the grid hole surface enables rapid positioning, allowing quick setup for each new workpiece.

★In education and training environments such as welding vocational schools, students use the equipment intensively every day. The nitrided platform is exceptionally durable, standing up to high-frequency use without wear or degradation.

★For marine engineering, including hull components and offshore platform structures, the welding table faces humid and salt spray conditions. The dense nitrided layer provides superior anti-corrosion performance, ensuring long service life in harsh environments.

👉 What is your application scenario? Send an inquiry now to receive targeted recommendations.

Related Certification

CE certification

Business License

Tell us your application and we will recommend the right table for you

Products Packaging

OUR WELDING TABLE Packaging & Shipping

Welding tables in container

Ready for shipment in port

wooden crate meet export standard

◆Wooden case meet export standards

◆Sea freight preferred for heavy tables

◆FOB / CIF / CFR terms available

FAQ

Frequently Asked Questions

Q1:What is the difference between nitriding treatment and ordinary anti-rust oil?

A:Ordinary anti-rust oil is just a surface coating, which is volatile and easy to wear, requiring regular re-oiling. Nitriding is a chemical heat treatment where nitrogen atoms penetrate the surface of the steel to form a hardened layer that integrates with the substrate, is permanently effective, and will not peel off or wear out.

Q2: Is this table magnetic?

A: Yes, ductile iron is ferrous, making it compatible with magnetic clamps and squares.

Q3: Are the fixture components compatible with other brands?

A：Yes. All components are manufactured to the D28 standard, making them fully compatible with industry standard fixturing systems.

Q4: Can I get a custom size?

A: Yes. We support customization of non-standard sizes, special hole distances, and special thicknesses. Please inform us of your requirements when sending an inquiry, and we will provide a customization plan.
