Locating Bar D16 3D Welding Tables

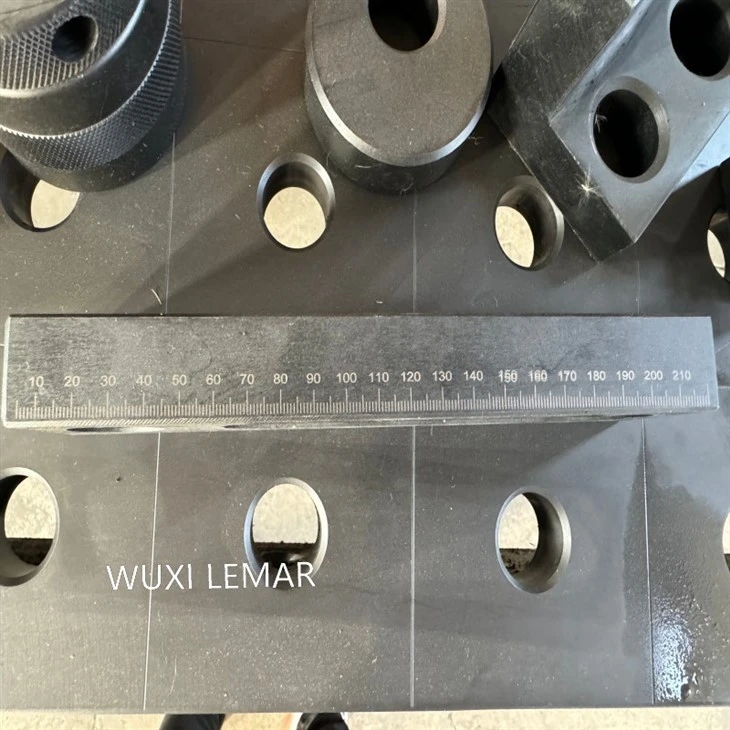

Locating Bar D16 3D Welding Tables 150x30x12 is one of the key components of the 3D Welding Table, which is used to precisely position and fix workpieces or fixtures.
Products Parameters
that's our details
Compatibility
• Suitable for mainstream 3D modular welding workstations (e.g. Bluco, Siegmund, StrongHand Tools, etc.).
• Can be used with M16 bolts, quick clamps, support columns, etc.
Main Function
• Precise positioning: Cooperate with the positioning hole of the 3D welding table to ensure the accurate position of the workpiece or fixture.
• Quick clamping: It can be matched with fixtures, pressure plates, bolts, etc., to achieve quick fixing.
• Modular design: suitable for different welding, assembly and inspection scenarios to improve production efficiency.
Products Application
About our product
(1) Precise Angle Positioning
• Angle ruler material: aviation aluminum or stainless steel, resistant to deformation and high temperature.
• Scale accuracy: laser - engraved scale, minimum division of 0.5°.
• Quick installation: directly fixed on the hole system of the welding table through D16 pins.
(2) Modular Tooling Design
• Free combination: The fixture can be adjusted arbitrarily along the X/Y/Z axes to adapt to special - shaped workpieces such as pipes and sheet metals.
• Reusable: Standardized interface design enables the tooling to be quickly disassembled, assembled, and reorganized.
