Low Tolerance 3D Welding Table
Low Tolerance 3D Welding Table is a modular, high-precision tooling system specifically designed for high-demand metal manufacturing. "Low tolerance" is its core selling point, referring to the extremely high machining accuracy and minimal dimensional errors of all key components of the platform. It quickly constructs a rigid structure in three-dimensional space for positioning and clamping complex workpieces through standardized modules (platforms, cubes, support columns, fixtures, etc.) connected by a high-precision matrix hole system (grid).
Products parameters
Low Tolerance 3D Welding Table's core process is as follows:

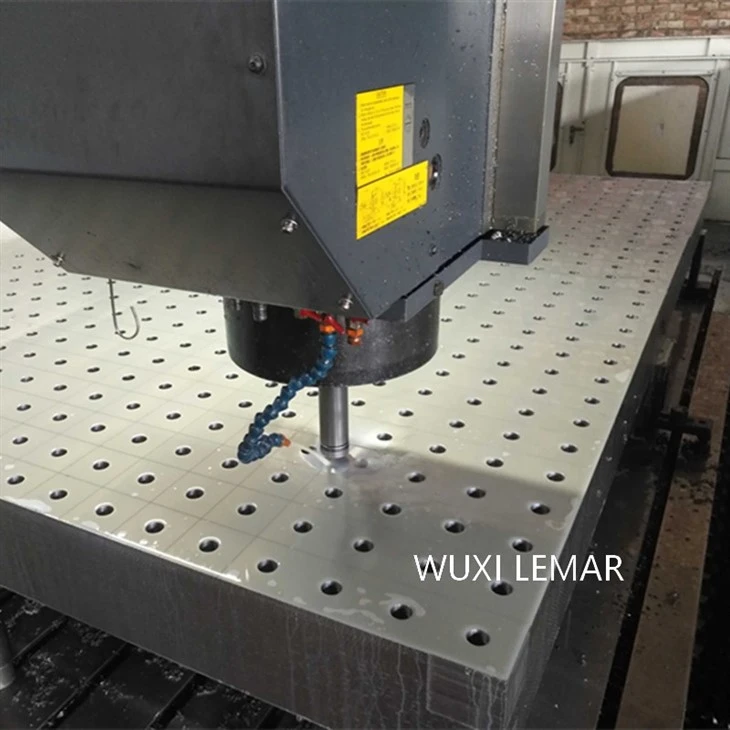

A piece of preprocessed thick steel plate (usually alloy structural steel) is fixed on a CNC machine tool. Under the control of a computer program, all features of the entire table surface, such as the flat surface, grid array holes, reference edges, and T-slots, are machined in one go with high precision.
This is fundamentally different from table surfaces that are processed step by step using small drilling machines or formed by splicing and welding.
Products Display
Products Advantages
Core Advantages
--Low Tolerance 3D Welding Table
• Realizing "Manufacturing as Inspection": Low Tolerance 3D Welding Table's own low tolerance makes it a reliable measurement benchmark. During the clamping process of workpieces, their key dimensions and relative positions are determined with high precision, significantly reducing subsequent inspections and rework.
• Ensuring Absolute Repeatability: Low Tolerance 3D Welding Table provides perfect conditions for robotic welding and automated assembly, ensuring that the assembly accuracy of the 1st product is completely consistent with that of the 1000th product.
• Completely Eliminating Cumulative Errors: All positioning is based on the same high-precision coordinate system, avoiding error accumulation caused by multiple clamping or datum conversion in traditional tooling.
• Maximizing Production Flexibility: On the premise of maintaining extremely high precision, it realizes rapid tooling changeover, perfectly adapting to the high-end production mode of small batches and multiple varieties.
• High Return Throughout the Life Cycle: Although the initial investment is relatively high, the long-term comprehensive cost is significantly reduced by replacing numerous special tooling, reducing waste products, shortening delivery cycles, and improving equipment utilization.
Customer Review
FAQ
FAQ
01.What's the lead time for orders?
02.How to perform daily maintenance on a three-dimensional welding platform?
◦ Professional repair: If the hole wall is damaged, it must be repaired by professionals using special alloy reamers provided by the manufacturer. Do not arbitrarily ream the hole with ordinary drills.
◦ Regular calibration: In extreme operating environments, professional instruments can be used regularly (e.g., annually) to detect the flatness and hole spacing of key points on the table for condition monitoring.
03.How is the product packaged to prevent damage during transportation?
04.What documents do you provide for export?
05. How do I place an order?
06.Which payment methods are supported?
"Low Tolerance 3D Welding Table" is a "precision bridge" connecting high-end design and perfect manufacturing.
It is not just a workbench, but a "reconfigurable precision manufacturing space". It represents a shift in manufacturing philosophy from "manufacturing tooling for products" to "using systematic solutions to meet all tooling needs".
Choosing a low-tolerance 3D welding platform is essentially a strategic investment in product excellence, production agility, and long-term competitiveness. It is a cornerstone equipment in the modern high-end intelligent manufacturing system that ensures quality consistency and process flexibility.
