CNC Machine Made 3D Welding Table
CNC Machine Made 3D Welding Table, which refers to the "3D welding platform manufactured by CNC machine tools", specifically refers to a high-end modular tooling platform whose table body (especially the key working panel) is integrally processed and formed using large precision CNC machine tools (such as large gantry machining centers, CNC deep hole drilling machines, etc.).
Products parameters
CNC Machine Made 3D Welding Table's core process is as follows:

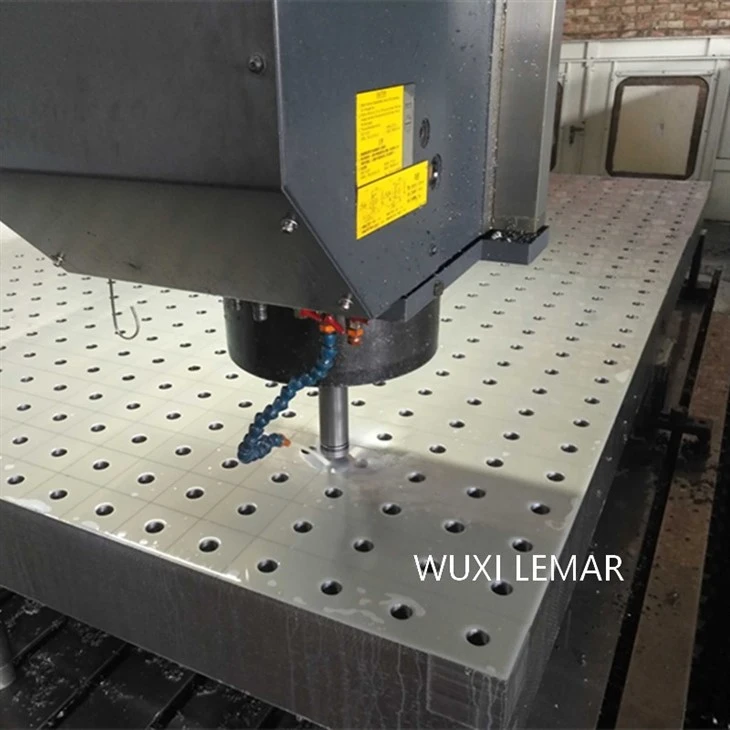

A piece of preprocessed thick steel plate (usually alloy structural steel) is fixed on a CNC machine tool. Under the control of a computer program, all features of the entire table surface, such as the flat surface, grid array holes, reference edges, and T-slots, are machined in one go with high precision.
This is fundamentally different from table surfaces that are processed step by step using small drilling machines or formed by splicing and welding.
Products Description
1. Unparalleled Precision:

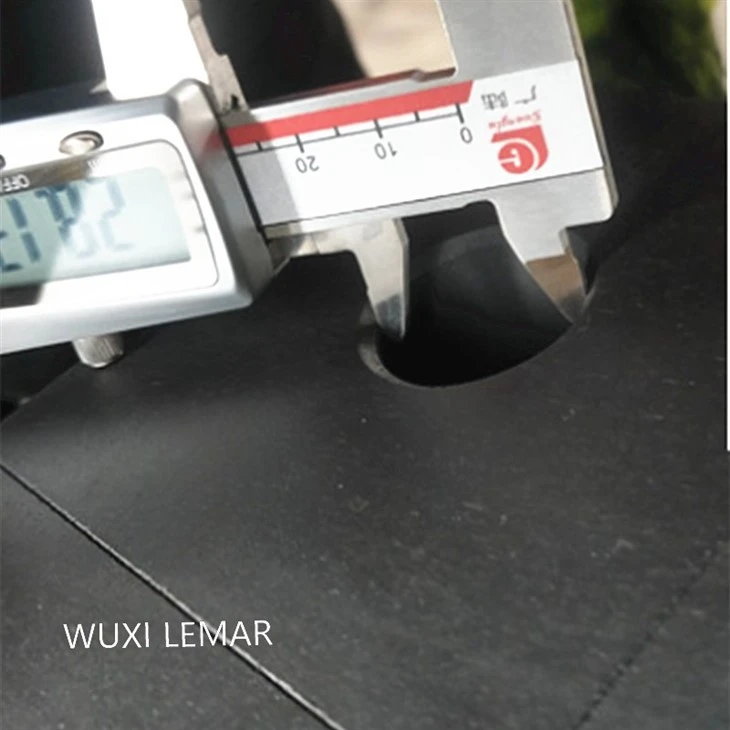

◦ Hole Position Accuracy: This is the greatest advantage. The center distance error of all holes is extremely small, usually controllable within ±0.02mm to ±0.05mm.
◦ Hole Axis Perpendicularity: Each hole has extremely high perpendicularity relative to the table surface, ensuring that the fixture does not tilt after installation.
◦ Flatness: The flatness of the entire large table surface is precisely milled to be uniformly flat, providing a perfect reference plane for workpieces.

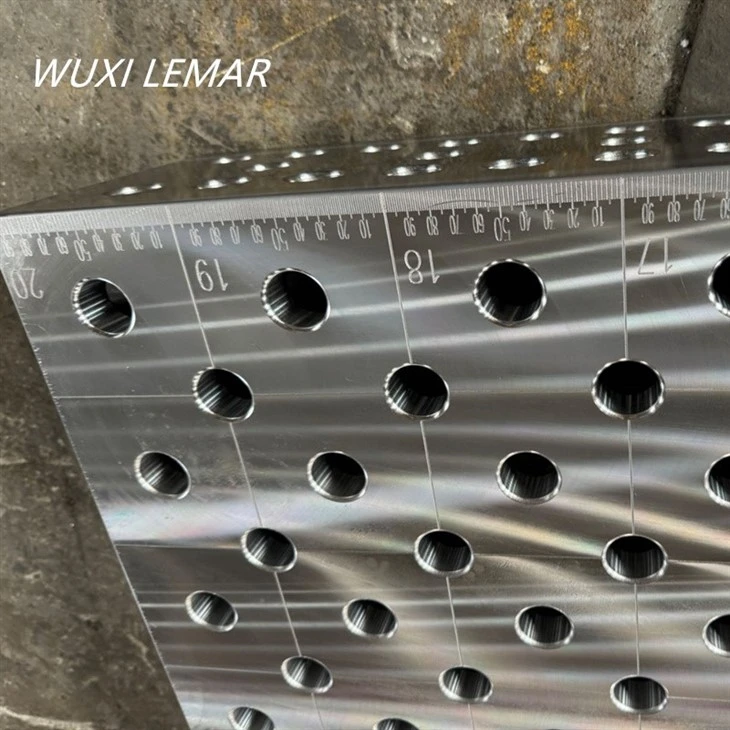

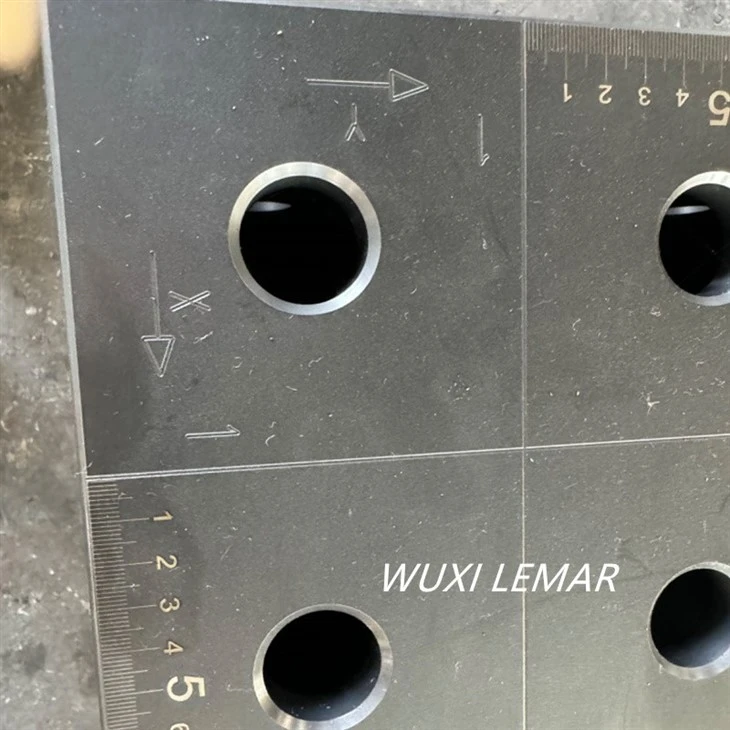

◦ Position Consistency: All features on CNC Machine Made 3D Welding Table surface (such as reference holes, coordinate scales) maintain a strict mathematical relationship with the grid hole system.
2. Excellent Integrity and Rigidity:
◦ One-piece Molding: The table surface is machined from a single piece of steel without welding or splicing, avoiding local deformation and long-term stress release issues caused by welding stress.
◦ Control of Internal Stress in Materials: The raw materials undergo stress-relief annealing, and the CNC machining process also minimizes the generation of new stress through a reasonable process path.
3. Perfect Surface Quality:

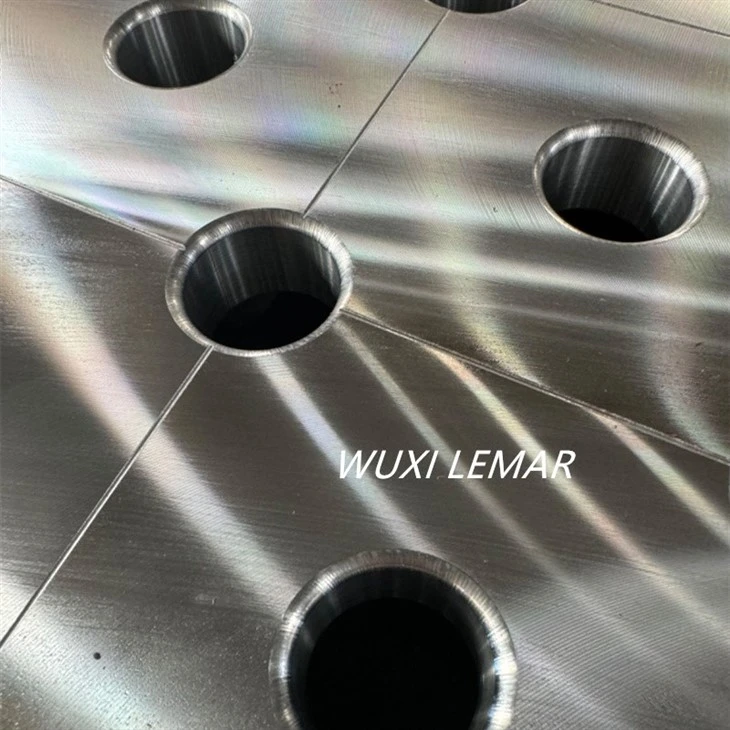

◦ The hole walls are smooth, without burrs or work-hardened layers, making the fixture insertion and extraction smooth and reducing wear.
◦ The table surface has a good finish and is easy to clean.
4. Traceability and Standardization:
◦ CNC machining is based on a unified digital model (CAD), ensuring that the size and accuracy of each worktable of the same model are completely consistent, achieving true "standardization" and "interchangeability".
Products Advantages
Key Advantages
--CNC Machine Made 3D Welding Table
• Born for Automation: Its ultra-high precision makes it an ideal foundation for robotic welding, automated assembly, and optical measurement. Robot programs can be offline programmed based on the digital coordinates of the workbench, ensuring precise execution on-site.
• Ensuring Consistency in Product Quality: The precise positioning datums fundamentally eliminate the cumulative workpiece errors caused by fixture inaccuracies, ensuring every product is identical.
• Extending Service Life: The high-precision holes cooperated with high-quality fixtures result in minimal wear, and the precision decays very slowly after long-term use.
• Improving Work Efficiency: Fixtures can be installed quickly and accurately without repeated debugging, reducing production preparation time.
• Supporting Complex Processes: It can easily realize multi-unit splicing and high-precision integration with positioners, etc., to build complex flexible manufacturing cells.
Customer Review
FAQ
FAQ
01.What's the lead time for orders?
02.How to perform daily maintenance on a three-dimensional welding platform?
◦ Professional repair: If the hole wall is damaged, it must be repaired by professionals using special alloy reamers provided by the manufacturer. Do not arbitrarily ream the hole with ordinary drills.
◦ Regular calibration: In extreme operating environments, professional instruments can be used regularly (e.g., annually) to detect the flatness and hole spacing of key points on the table for condition monitoring.
03.How is the product packaged to prevent damage during transportation?
04.What documents do you provide for export?
05. How do I place an order?
06.Which payment methods are supported?
"CNC Machine Made 3D Welding Table" is a symbol of the qualitative change in the field of flexible tooling from "usable" to "precise and reliable". It is no longer merely a platform for carrying workpieces, but a "process datum" with extremely high geometric accuracy itself.
Its essence lies in perfectly replicating the digital precision in the design onto the physical entity through advanced CNC manufacturing processes. Investing in such a workbench is not just purchasing a tool, but introducing an eternal and credible precision origin into the entire manufacturing system. It is particularly suitable for high-end manufacturing users who regard quality, consistency, and automation efficiency as their core competitiveness.
In short: it represents the most reliable foundation built with the most precise manufacturing methods to meet the most stringent manufacturing needs.
