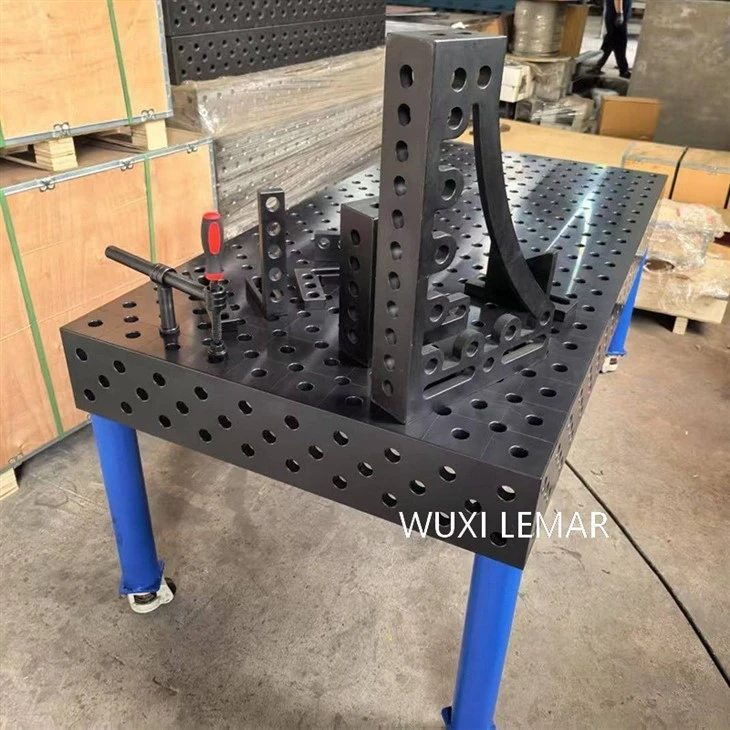

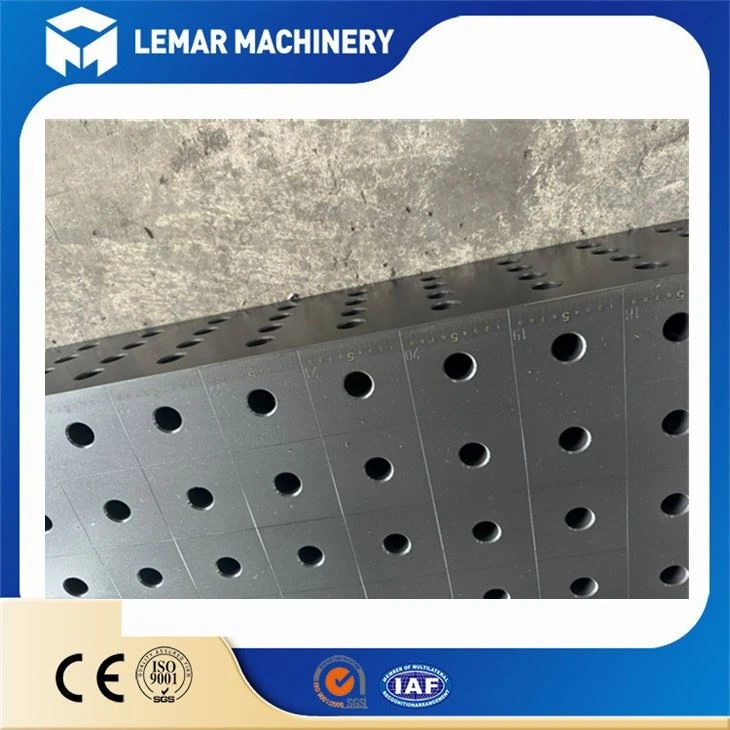

Nitrided 3D Welding Table With Grid Lines
Nitrided 3D Welding Table With Grid Lines is a high-end modular tooling platform that, based on an ordinary cast iron platform, undergoes gas nitriding or ion nitriding heat treatment on its working surface and is etched with auxiliary positioning grid lines.
DM Eva directly for quotation and more details↓↓↓
Products Types
Products Size
1. Nitrided Surface Treatment (Core Feature):
◦ Ultra-high hardness: A layer of extremely hard iron nitride compound is formed on the working surface , and the wear resistance is several times higher than that of ordinary cast iron.
◦ Resistance to welding spatter: The hard surface can effectively resist the adhesion and erosion of welding slag and spatter, making it easier to remove spatter.
◦ Corrosion and rust resistance: The surface is dense, resistant to atmospheric and general medium corrosion.
◦ Scratch resistance: It can resist scratches caused by accidental collisions of tools and workpieces, maintaining the integrity of the reference surface for a long time.
◦ Good thermal stability: The nitrided layer can still maintain its performance under the high temperature generated by welding, and is not easy to deform or soften due to local heating.
2. Etched Grid Lines (Functional Feature):

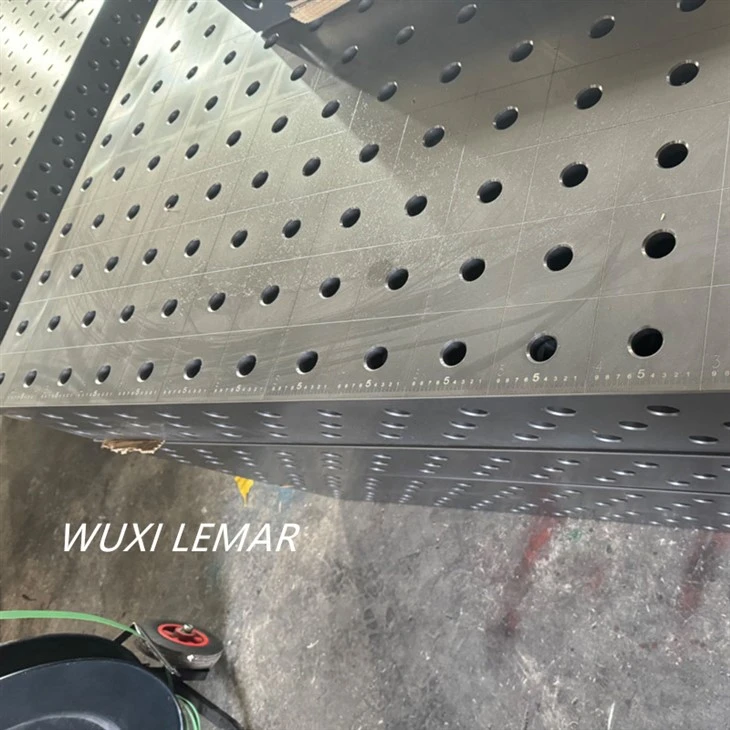

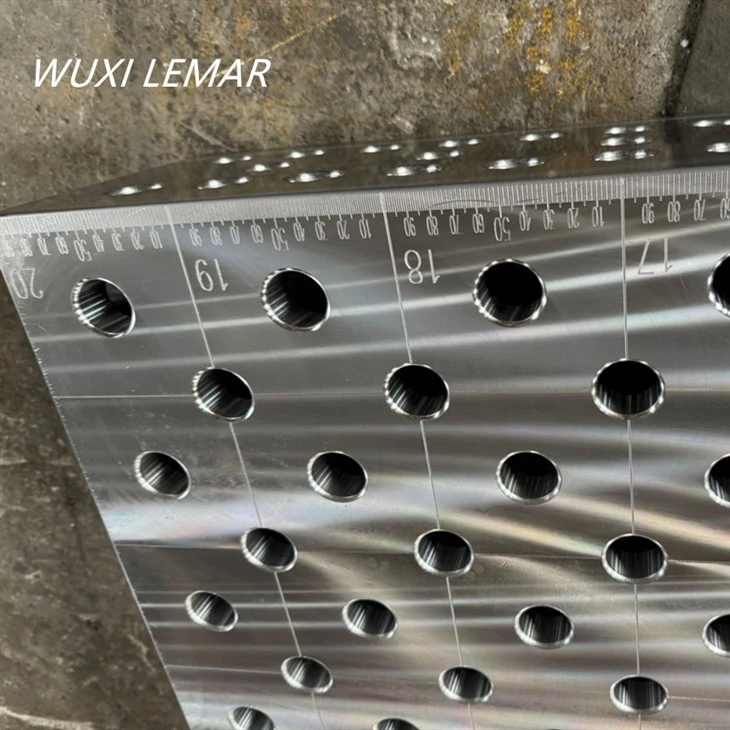

◦ Visual positioning assistance: Grid lines aligned with the positioning holes below are etched on the platform surface (usually one every 100mm or 50mm), which is convenient for operators to quickly and intuitively perform rough positioning and layout planning without frequently using measuring tools to measure hole distances.
◦ Improve construction efficiency: Especially when building large fixtures, the grid lines can greatly shorten the time to find the target hole positions.
3. Inheritance of Basic Performance:
◦ Nitrided welding table itself still has all the characteristics of a high-precision three-dimensional welding platform: high-strength cast iron material, excellent initial flatness (usually ≤0.03mm/m²), and precise D28/D16 standard grid hole system.
Products Workflow
Main Applications
• High-intensity mass production workshops: automobile parts production lines, construction machinery structural parts welding lines, etc., where the platform is used extremely frequently.
• Robot automated welding units: requiring 3D welding table to withstand long-term, stable mechanical contact and spatter.
• Heavy-duty and high-wear working conditions: processing heavy steel parts, stainless steel parts (with strong spatter adhesion) or workpieces with sharp edges and corners.
• Industries with strict requirements for cleanliness and maintenance: such as food machinery and pharmaceutical equipment manufacturing workshops, which require the platform to be easy to clean thoroughly.
• As a "heirloom"-level tooling investment: enterprises hope to make a one-time investment to purchase a set of core equipment that can be used for decades without replacement.
Products Display
Why choose us?
Related Certification
Customer Review
product delivery
Which transportation method we adopt?
We usually send Nitrided 3D Welding Table With Grid Lines abroad by sea shipment.
We will provide relevant documents and materials to assist you in going through the import customs clearance procedures at the local destination port.
After service
We are always here for you
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
Contact us
Nitrided 3D Welding Table With Grid Lines represents the top pursuit of "durability" and "user experience" in the field of modular tooling. By adding a key surface heat treatment process and practical visual aids, it solves two core pain points in high-end production environments: maintaining the long-term integrity of the reference surface and ensuring absolute efficiency in daily operations.
If you are looking for a reliable Nitrided 3D Welding Table With Grid Linessupplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
