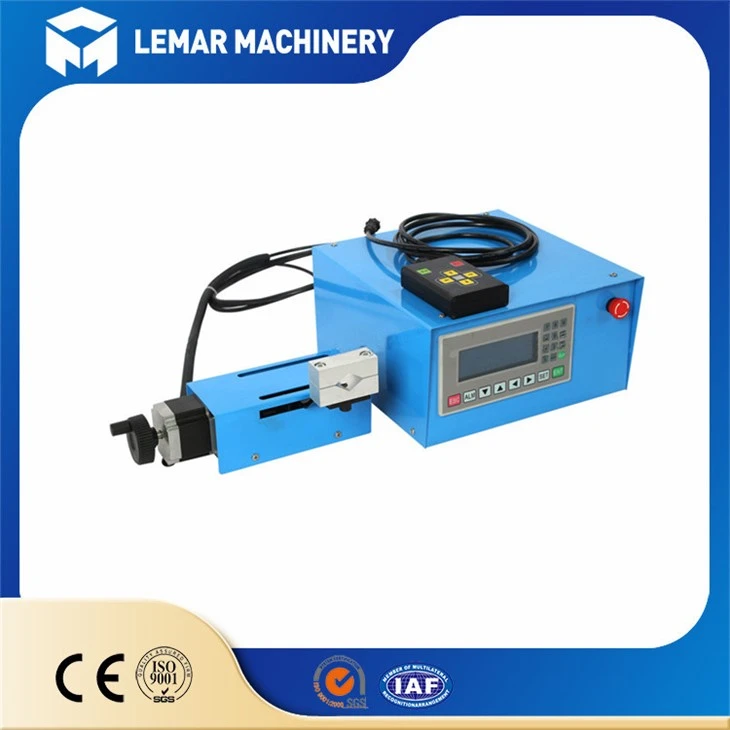

Linear Welding oscillator is a general welding auxiliary equipment. It is mainly used to increase the forming width of a single welding seam,used for relatively wide welding seams, such as groove welds and fillet welds.
It is usually controlled by a high-performance PLC. It gives a digital signal through microcomputer control and drives the stepper motor to drive the ball screw, ultimately achieving precise left-right swing of the welding gun along the direction of the weld.
Products features
Our product details
PLC swing welding oscillator gun shaker linear device automatic welding oscillators
Human machine interface
Text panel and touch screen controls optional.
10 sets of swing programs can be pre-stored, and programs can be switched arbitrarily during the swing process, which is suitable for work scenarios that require multi-layer swings.
Precisely control and adjust weld width
During the swing of the weld seam, the dwell time on the left, right and middle can be automatically adjusted without stopping the machine to increase the local welding time.
Timing function
Timing time is up to 6000s, and the timing function can be canceled at any time; 57 stepper motor has high precision, high performance and stability. The transmission mechanism is ball screw drive, which has stable swing and long service life.
Automatic Linear Welding Oscillator can work alone or online; the input interface can control the start and stop of the oscillation, and the output interface can control the start and stop of the welding machine or other equipment.
