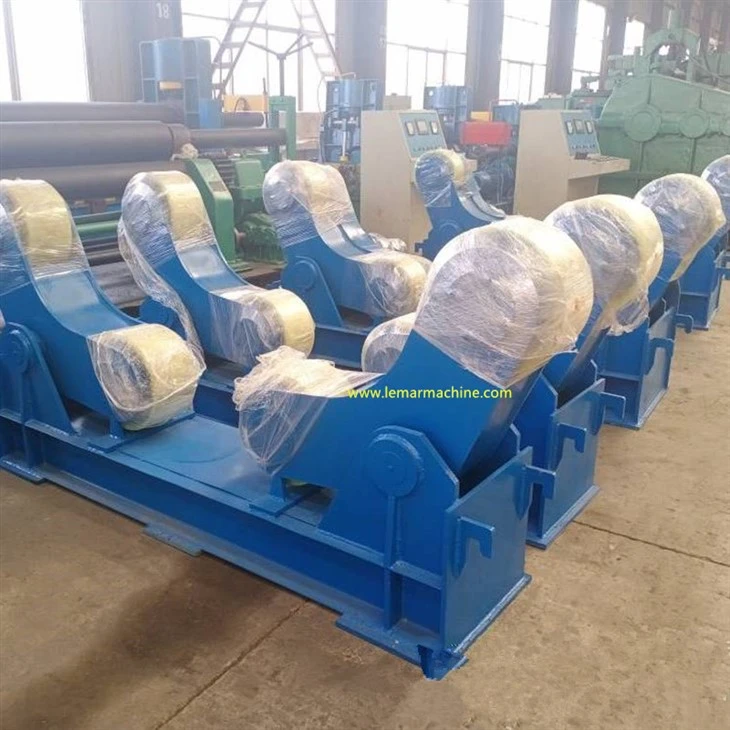

Self adjustable Welding rollers are used for cylinder work piece welding, polishing, assembling and etc.It is one the most popular welding equipments as well as welding positions,welding manipulators.
This Self-adjustable type welding rotator with bubber wheel can be used for cylinder diameter from 500mm to 6000mm.
It is controlled by AC frequency converter and the linear speed is displayed digitally. The machine is advance and reliable.
For special customer need, we can design and manufacture other models accordingly.More questions please feel free to call or mail Wuxi Lemar.
Technical parameters of major equipments:
Type | Max load weight(kg) | Metallic wheel | Rubber wheel | Cylinder D | Roller linear speed(m/h) | Motor power | Way of setting | ||||
ZTG-05 | 5000 | 244 | 20 | 250 | 100 | 250 | 2300 | 6-60 | 0.75 | / | AC frequency conversion stepless speed regulation |
ZTG-10 | 10000 | 294 | 25 | 300 | 120 | 320 | 2800 | 1.1 | / | ||
ZTG-20 | 20000 | 344 | 30 | 350 | 120 | 500 | 3500 | 1.5 | / | ||
ZTG-30 | 30000 | 344 | 30 | 350 | 120 | 500 | 4000 | 2.2 | / | ||
ZTG-40 | 40000 | 394 | 40 | 400 | 120 | 600 | 4200 | 3 | 2*1.5 | ||
ZTG-50 | 50000 | 394 | 40 | 400 | 120 | 600 | 4500 | 3 | 2*1.5 | ||
ZTG-60 | 60000 | 444 | 50 | 450 | 120 | 750 | 4800 | 4 | 2*2.2 | ||
TGZ-80 | 80000 | 494 | 60 | 500 | 120 | 850 | 5000 | 4 | 2*3 | ||
ZTG-100 | 100000 | 494 | 80 | 500 | 120 | 1000 | 5500 | 5.5 | 2*3 | ||
ZTG-150 | 150000 | / | / | 600 | 280 | 1100 | 6000 | 7.5 | 2*4 | ||
ZTG-250 | 250000 | / | / | 700 | 300 | 1200 | 7000 | 11 | 2*5.5 | ||
