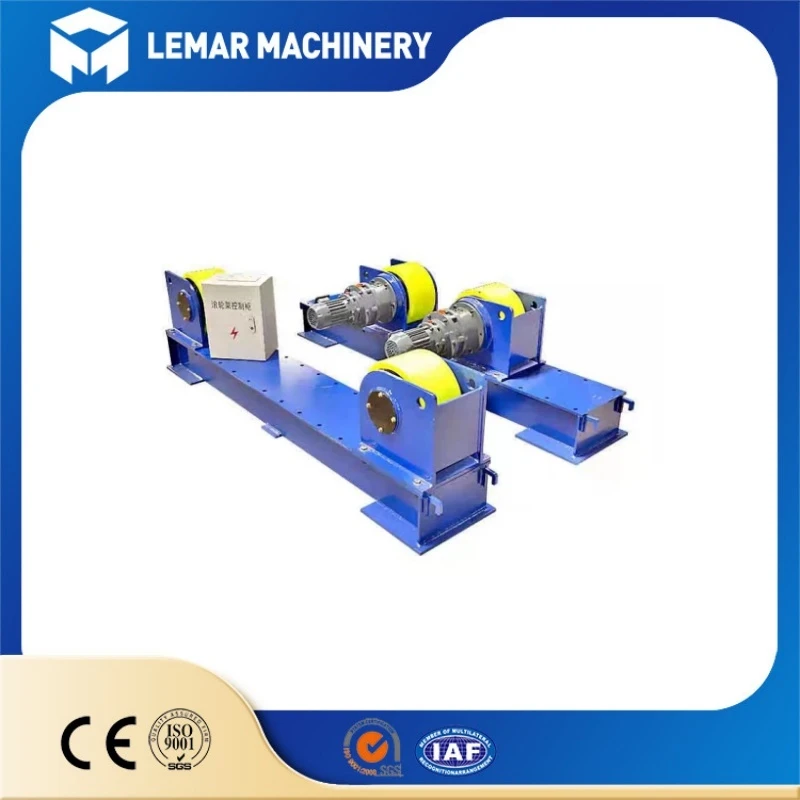

Compact and practical, this 5-ton adjustable welding roller frame takes little floor space. It suits regular workshops and various working sites. Easy to install and operate, it provides steady rotation and firm support for cylindrical workpiece welding.
More Details contact us
Products Introduction
- This 5-ton adjustable welding roller frame is designed for medium-duty cylinder welding.
- With reasonable structure, it saves floor space and fits most factory workshops. The roller spacing is freely adjustable to accommodate workpieces of different diameters.
- It runs smoothly with strong load capacity, ensuring stable rotation during welding.
- Simple installation and user-friendly operation make it a reliable helper for tank, pipe and pressure vessel fabrication.
Product parameters
|
Item |
Specification |
|---|---|
|
Model |
5T Adjustable Welding Rotator |
|
Rated Load |
5000KG (5 Ton) |
|
Applicable Workpiece Diameter |
250mm - 1800mm |
|
Roller Size |
Φ250×120mm (PU Roller) |
|
Linear Speed |
100-1000mm/min (Stepless Adjustable) |
|
Motor Power |
0.75KW × 2 |
|
Speed Control Mode |
VFD Frequency Conversion |
|
Adjustment Method |
Manual Step Adjustment |
|
Configuration |
1 Drive Unit + 1 Idler Unit |
|
Power Supply |
380V/50Hz 3Phase (Customizable) |
Product accessories
Standard Accessories
1. Driving unit + Idler unit
2. VFD control box with handheld pendant
3. Complete power and control connecting wires
4. Installation accessories & fixing bolts
5. User manual & product qualification certificate
Optional Accessories
1. Wireless remote controller
2. Anti-drift correction device
3. Protective cover for motor and reducer
4. Extended connecting cables
5. Customized heightening bracket
Products advantages
High-Precision Synchronous Rotation
Dual motors achieve synchronous drive, the rotating error is extremely small, ensuring uniform welding bead and beautiful welding molding.
Anti-Slip & Anti-Deviation Performance
Optimized roller structure design increases friction, effectively preventing thin-walled workpiece slipping and axial deviation during rotation.
Ultra-Stable Operation
Integrated heavy-duty base effectively resists welding vibration, no shaking during high-speed and low-speed operation, greatly improving welding qualification rate.
High Adaptability & Expandability
Manual spacing adjustment covers multiple workpiece specifications, reserved interface can match welding manipulator, automatic welding system and preheating equipment.
Application aspect
1. Pressure Vessel & Tank Processing Suitable for conventional welding, assembly and surface treatment of small and medium-sized storage tanks and ordinary pressure vessels.
2. Pipeline & Pipe Fabrication Perfect for circular welding and polishing of steel pipes, pipe fittings and pipeline structural parts.
3. Boiler & Thermal Equipment Ideal for processing boiler cylinders, heat exchangers and various thermal equipment cylindrical components.
4. Environmental Protection Equipment Widely used for welding and manufacturing sewage treatment tanks, biogas tanks and environmental protection vessels.
5.General Metal Machining Applicable for cylindrical metal parts welding, derusting, polishing and assembly in machinery manufacturing workshops.
Products Description
Company Certification
Customer feedback
FAQ
Q:What is the maximum load of this 5T welding rotator?
A:The rated load is 5 tons, suitable for conventional medium and small cylindrical workpieces. Overload operation is not recommended to extend machine service life.
Q:Can I adjust the roller distance for different workpieces?
A:Yes. It adopts manual step adjustment, which can match different cylinder diameters from 250mm to 1800mm, flexible for various workshop jobs.
Q:Will the PU roller scratch the workpiece surface?
A:No. The steel-core PU roller features high elasticity and anti-scratch performance, perfectly protecting stainless steel, painted and polished workpieces.
Q:Can this equipment prevent workpiece axial deviation?
A: Yes. Optimized roller friction design effectively avoids slipping and drifting during rotation. It can also be equipped with an automatic anti-drift device for higher precision requirements.
Q:What kind of workpieces is this rotator suitable for?
A:It is widely used for pipes, tanks, boilers, environmental protection vessels and ordinary pressure vessel cylindrical welding and polishing.
Q:What after-sales support can we get?
A:We provide 12-month warranty, 24/7 online technical support, complete spare parts supply and lifelong technical consultation.
