Products Description

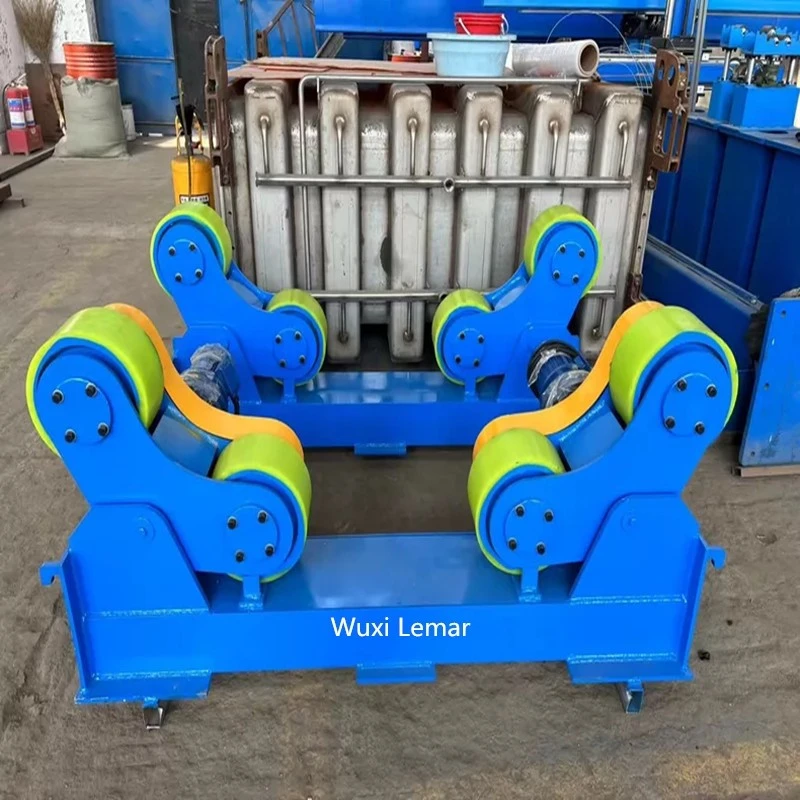

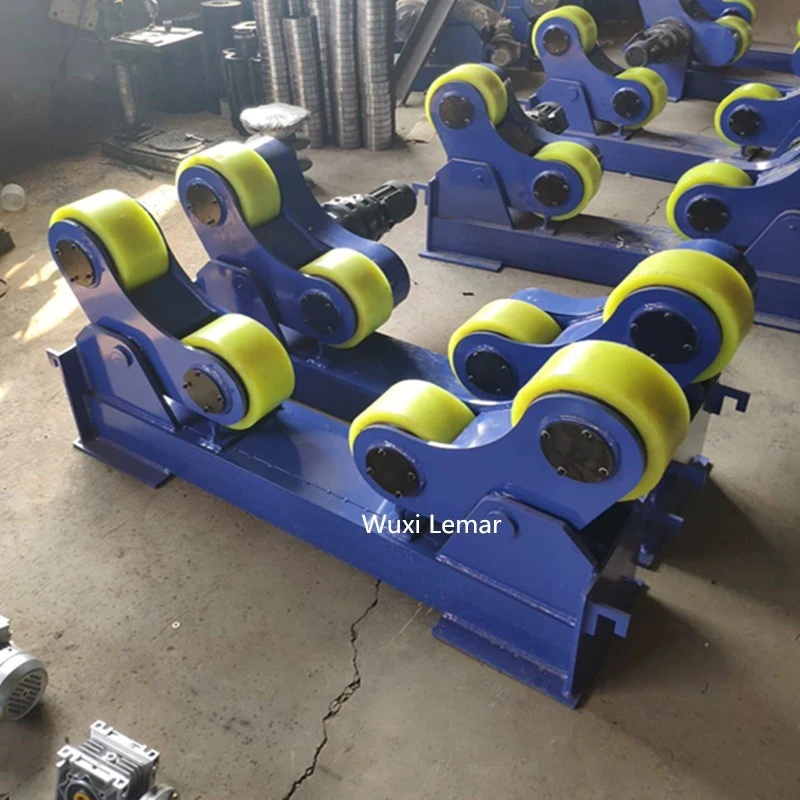

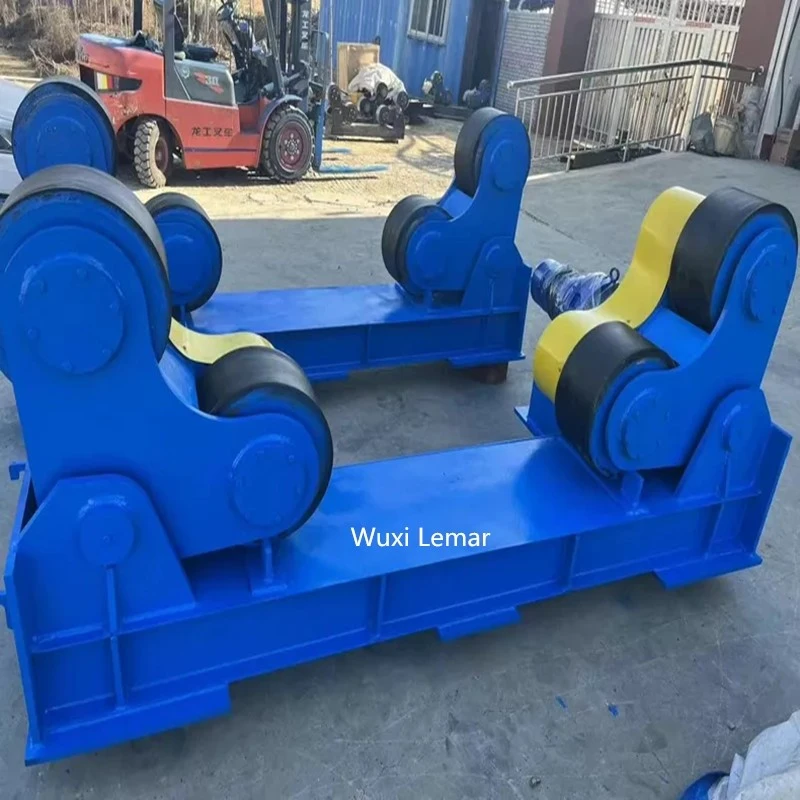

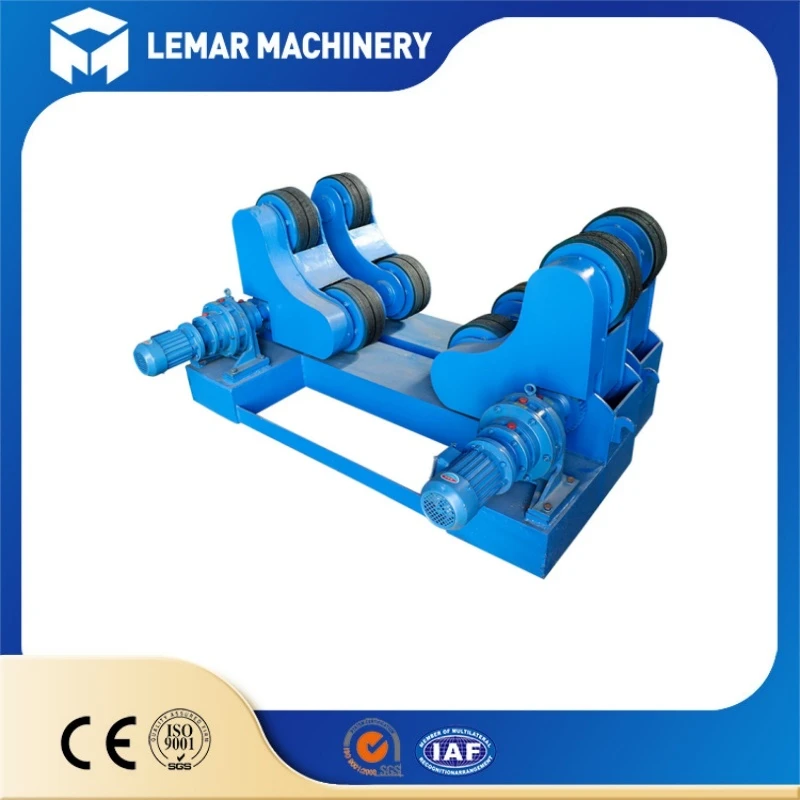

- This 10 Ton Storage Tank Turning Roll is professional equipment dedicated for storage tank fabrication and circumferential welding.
- Self-adjusting roller structure automatically adapts to different tank diameters without manual calibration.
- Provides stable uniform rotation to ensure smooth and neat welding seams on storage tank bodies.
- Perfect match for automatic welding systems for mass production of liquid storage tanks.
Technical Parameters
| Item | Specification |
|---|---|
| Model | ZTG-10 Storage Tank Turning Roll |
| Rated Load | 10 Ton |
| Applicable Workpiece Diameter | 300mm – 3000mm |
| Roller Material | PU Anti-scratch Roller / Cast Steel Roller Optional |
| Driving Mode | Dual Motor Synchronous Drive |
| Control System | VFD Stepless Speed Regulation |
| Application | Storage Tank, Chemical Tank, Fuel Tank Girth Welding |
| Custom Voltage | 380V/400V/415V/480V Available |
Core Advantages
Application Scope
Stainless Steel Storage Tank Manufacturing
1.Suitable for girth welding of stainless steel water tanks, sanitary storage tanks and thin-wall liquid storage vessels.
Fuel & Petroleum Storage Tank Production
3.Ideal equipment for cylindrical shell welding of diesel tanks, crude oil storage tanks and fuel buffer tanks.
Anti-corrosion Chemical Tank Fabrication
2.Used for rotary welding and surface finishing of chemical medium storage tanks and anti-corrosion reaction tanks.
General Industrial Cylinder Workpiece Processing
4.Adapt to rotary welding, lining and polishing of all kinds of cylindrical tank bodies used in environmental protection, metallurgy and water treatment industries.
Optional Configuration
Wireless Remote Control
Portable remote pendant for easy speed adjustment during storage tank welding.
Equipment Linkage Interface
Supports synchronous connection with automatic welding machines and manipulators.
High Temperature Resistant Rollers
Supports synchronous connection with automatic welding machines and manipulators.
Customized Extended Base
Extended base design to support ultra-long storage tank workpieces.
Customer feedback
Products Description
Product Certificate
Frequently Asked Questions
Q1: Does this set include both driving unit and idler unit?
+
-
A1: Yes. One complete set contains one driving frame and one driven frame, ready for supporting storage tanks directly.
Q2: Can the turning roll prevent the storage tank from axial drifting while rotating?
+
-
A2: The self-aligning structure effectively reduces workpiece drifting. For strict anti-creep demand, we provide optional anti-drift design.
Q3: What safety protection devices are equipped on the machine?
+
-
A3: It is equipped with overload protection for motor to avoid damage caused by overweight storage tank workpieces.
Q4: How should we maintain the turning roll for long-term stable operation?
+
-
A4: Regular lubrication for bearings and reducers is required. Keep rollers clean without welding slag and oil contamination.
