Product Description
Small Welding Positioner is mainly used for lifting, rotating, and tilting the worktable to place the workpiece in the best position for welding and assembly. It can be used for various automatic or manual welding, butt welding or surface welding of pipes, and welding of pipes. Shafts, discs, cylinders, etc., have the advantages of compact size, beautiful appearance, light weight, and convenient operation. Can provide positioner and robot or welding manipulator interface to realize welding automation.
Specification
MODEL | BWJ-10 |
Horizontal Capacity Loading | 10Kg |
Vertical Capacity Loading | 5Kg |
Rotating Speed | 2-16r/min |
Tilt Range | 0~90° |
Table Dimension | 180mm |
Table Height | 232mm |
Motor Power | 20W |
Weight | 10kg |
Power Input | 1PH 220V 50~60Hz |
Adapter chuck | KC-65/KC-80 |
Feature

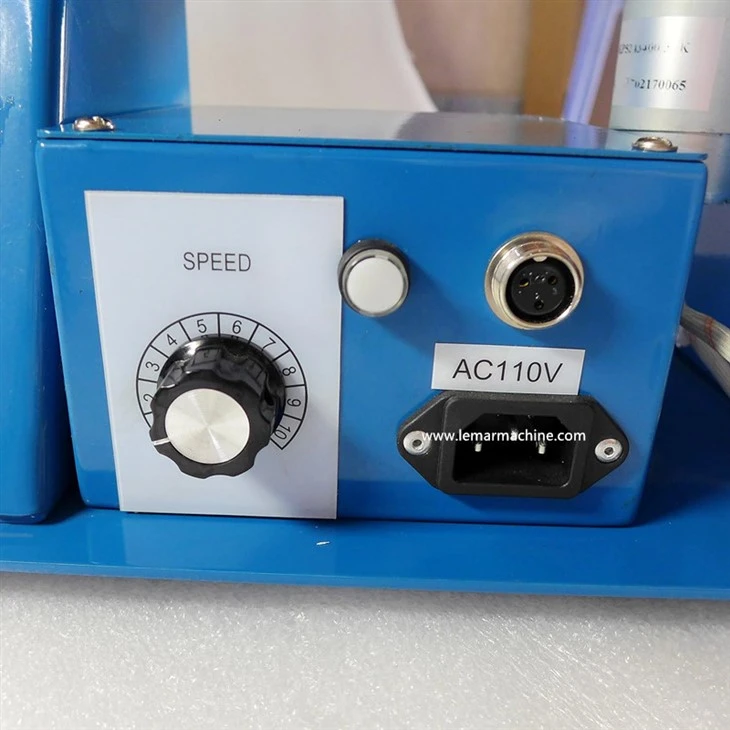

1. The rotating structure of this positioner is driven by a DC motor, which can realize stepless speed regulation.
2. The worm gear rotating structure has a self-locking function, and the worktable can be steplessly rotated between 0-90°.
3. This mini positioner has a special anti-electromagnetic design, which reduces the high frequency interference of TIG welding and effectively improves the welding quality.
4. It can be equipped with self-controller to control working status and working time, realize linkage of positioner and welding machine.
5. It can be equipped with an adjustable welding torch bracket to fix the position of the welding torch.
6. Optional rail and pneumatic suction head to realize the self-clamping function of the workpiece.
Operating Regulations of Welding Positioner
1. When start the welding positioner pls Follow the welder's operating procedures.
2. When installing and disassembling the workpiece, check whether the circular pressure plate has been taken out and whether the pressure plate has been retracted to prevent the workpiece from damaging the fixture.
3. When hoisting the workpiece,welding positioners must be stable and level, and there can be no large swings to prevent the workpiece from colliding with the fixture, so as not to damage the fixture.
4. When hoisting the workpiece, the sling must be properly installed before the sling can be removed from the workpiece.
5. When disassembling the workpiece, the workpiece must be hoisted firmly with a sling before the workpiece can be loosened.
6. When the workpiece falls on the fixture, welding positioners should be handled gently, and there should be no excessive impact on the fixture and the positioner.
7. Workpiece installation must be positioned as required, all fixture nuts and bolts must be tightened, and the pressure plate must be pressed tightly. After the installation is completed, a trial run and inspection are required. After the installation is confirmed, the formal operation can be carried out.
8. Before turning, check whether there are other objects in the working turning range to avoid collision.
9. After the workpiece is turned to the working position, the power switch must be turned off and the power supply must be cut off to prevent malfunction.
10. When installing the workpiece, pay attention to the work center and not deviate from the center of gravity.
11. Do not carry overweight or overload.
12. When the workpiece needs to be ascended and welded, the ascending pedal of welding turntable positioner must be used, and the ascending pedal must be placed securely before the ascending operation can be performed.
