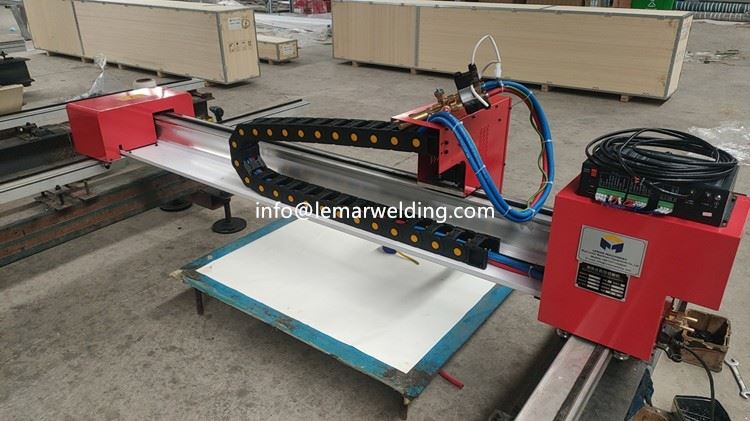

Dual Drive CNC Plasma Cutting Machine adopts high-strength aluminum alloy longitudinal rail and cross arm, and two motors are driven bilaterally. It has the advantages of large cutting range, stable operation, unlimited extension of longitudinal rail and low price of portable CNC cutting machine. It is welcomed and praised by the majority of users.
The electrical part adopts well-known brands in the industry, equipped with high-precision screw lifter and Shanghai Fangling CNC system.
Products spesification
|
NO. |
Entry name |
Reachable index |
|
1 |
Effective cutting width |
1500mm Guide rail spacing - 500mm |
|
2 |
Effective cutting length |
3000mm Longitudinal track length - 500 mm |
|
3 |
Empty travel speed |
0-8000mm/min |
|
4 |
Plasma cutting material |
Carbon steel, stainless steel |
|
5 |
Plasma cutting speed |
0-3000mm/min |
|
6 |
Lifting distance of torch |
≤250mm |
|
7 |
Lifting mode of plasma cutting torch |
Automatic rise and fall of arc voltage |
|
8 |
Straightness of guide rail |
0.4mm/10000mm |
|
9 |
Intersection offset tolerance |
±0.5mm |
|
10 |
Straightness tolerance |
±0.2mm |
|
11 |
Roundness tolerance |
±0.5mm |
|
12 |
Diagonal tolerance |
±0.5mm |
|
13 |
Acceptance standard of whole machine accuracy |
Comply with JB / t5102-1999 |
