Product Description:

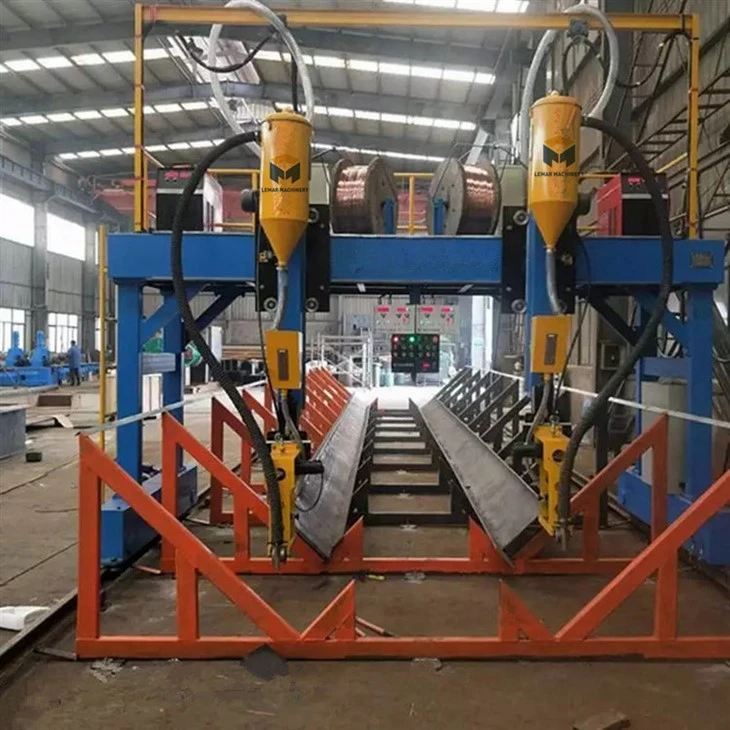

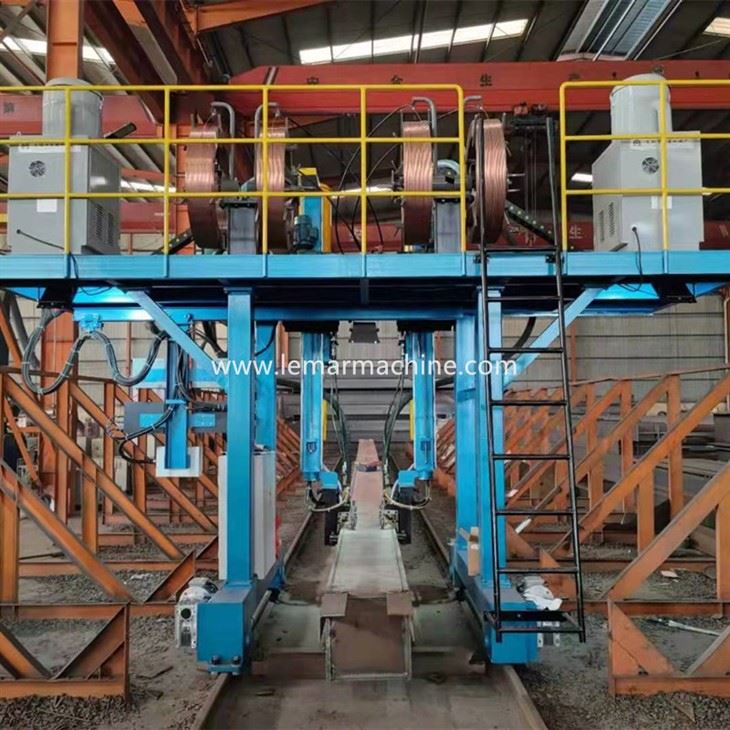

Automatic Steel H Beam Welding Machine can weld back and forth to improve work efficiency. Increase the height of the web according to user needs.
Product Feature:
This column welding machine adopts the submerged welding method.
One of the biggest advantages of submerged arc welding is that it can prevent hot materials from splashing and splashing on workers. Another benefit is that the flux can prevent high levels of radiation from being emitted into the air. Submerged arc welding does not need to increase the welding pressure. It is very suitable and fast to weld thin metal plates together and form a firm fusion between the welds. High productivity, high repeatability and high quality are the advantages of this machine
Product Specifications:
Model | SXBH-20 |
Rail gauge | 2000mm |
Web height | 200~2000mm |
Flange width | 200~800mm |
Work-piece length | 4000~15000mm or as user's request |
Model of welding machine | Two sets of ZX5-1000 automatic submerged arc welding machine |
Welding type | Boat-type welding |
Welding speed | 0.15~1m/min |
Returning speed | 3m/min |
