Products Description

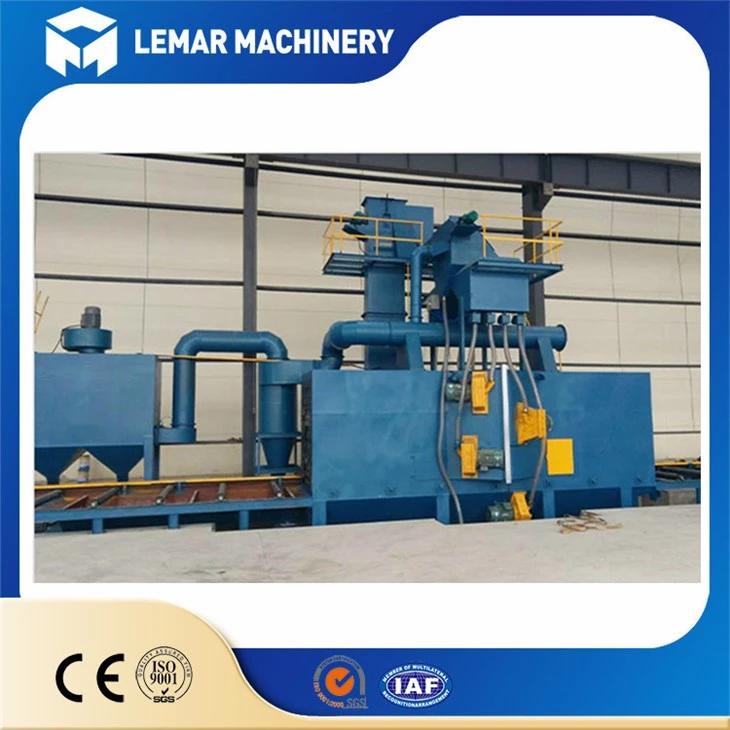

Roller through type shot blasting machine is mainly used for the removal and cleaning of high-stress size parts and surface corrosion of large I-beam, H-beam and other steel structures in construction, bridges and other industries.

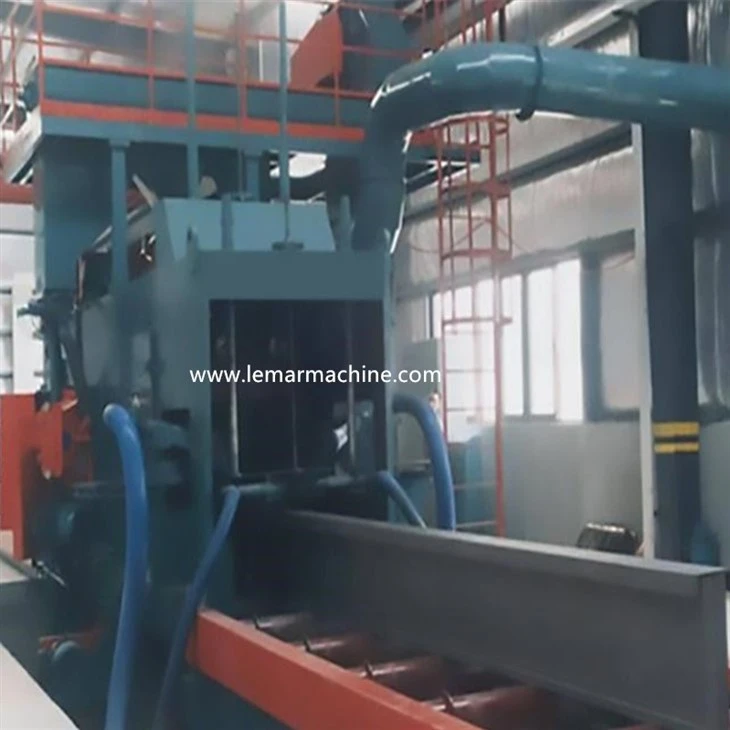

This machine is a roller conveyor type high-performance shot blasting cleaning equipment. During the cleaning process, the reducer drives the conveyor roller to send the workpiece into the shot blasting area in the cleaning room. All sides of the workpiece are subject to multiple blasting shots from different directions in the space structure. Due to the impact and friction of the dense and powerful projectiles of the pill assembly, the oxide scale and dirt on it quickly fall off, and the steel surface obtains a bright surface with a certain roughness. At the same time, due to the intensive and powerful impact of the workpiece, the stress of the workpiece is eliminated and the deformation of the workpiece is avoided.
Consists of:
Shot blasting room
Blast cleaning heads(8,10 or 12)
Bucket elevator

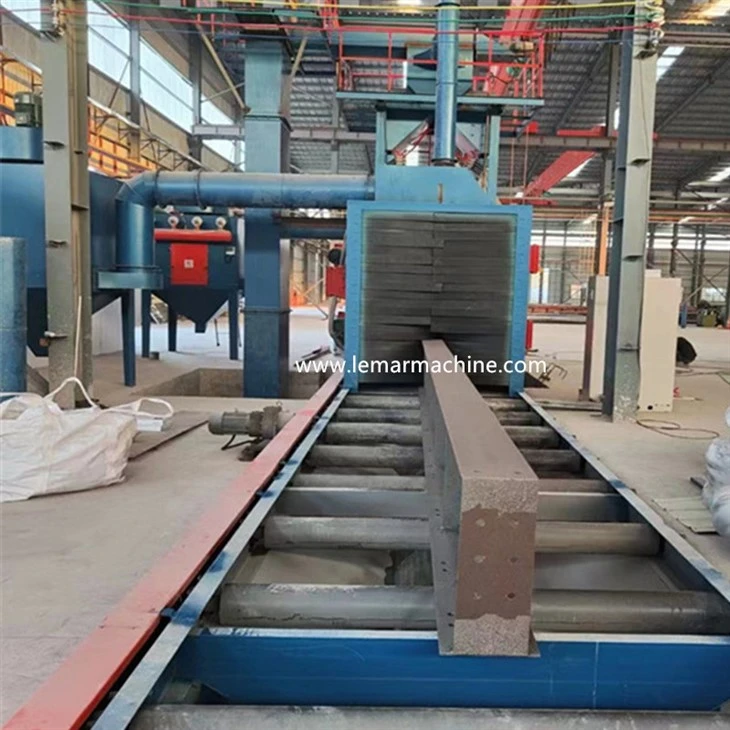

Roller conveyor
Abrasive Storage System etc.
Products Specification
| Model | HP1530 | |
| Workpiece dimention | section length*width (mm) | 1500*3000 |
| Length (m) | 8 or 12 | |
| Quality standard | surface cleaness | A-BSa2-Sa2½ |
| Shot-blaster | number (pc) | 8 |
| Power (KW) | 8*11 | |
| Inlit and outlet conveyor | loading capacity kg/m | 1000 |
| Convey speed (m/min) | 0.5-5 | |
| Circulation quantity (T/h) | 120 | |
| Overall power (kw) | 145 | |
| Pit depth (m) | 1.9 | |
| Main frame length*width*heigh (mm) | 7895*3200*3760mm |
Products Features
Our advantage
Swiss GF technolog Elevator
The lifting wheel of the elevator is deviated 50mm toward the exit direction, which can increase the lifting rate of the elevator to more than 95%.
A photoelectric detection device is installed on the lower shaft of the elevator to detect the working status of the elevator.
Swiss GF technology separator
With three-stage separation function (pure pellets, mixture and sand mixture)
The sand content in the pure qualified pellets of the beams separated by the H beam blaster is <1%, and the amount of qualified pellets in the waste is <1%
Strong Loading rollers
Each part of the roller is equipped with independent motor control and transmission, and can be adjusted through frequency conversion to strictly ensure the synchronization of the entire line of drive.
German DISA Blaster
Composed of impeller, blades, directional sleeve, introduction pipe, guard, shaft seat, etc
Blasting speed can be adjusted through the frequency converter to meet the requirements of different workpiece roughness
Company Details
Wuxi Lemar Machinery Equipments Co., Ltd. is a supplier specializing in welding equipment, CNC cutting equipment, steel structure automated production lines, shot blasting equipment, CNC processing equipment, etc.
We are committed to the update and improvement of equipment, and have participated in many steel structure projects and pipeline operation projects at home and abroad. After years of development and accumulation, our products cover all parts of the country and are exported to Europe, the United States, Southeast Asia, the Middle East and other countries. If you want When purchasing complete H-beam equipment, we will be your best choice!
