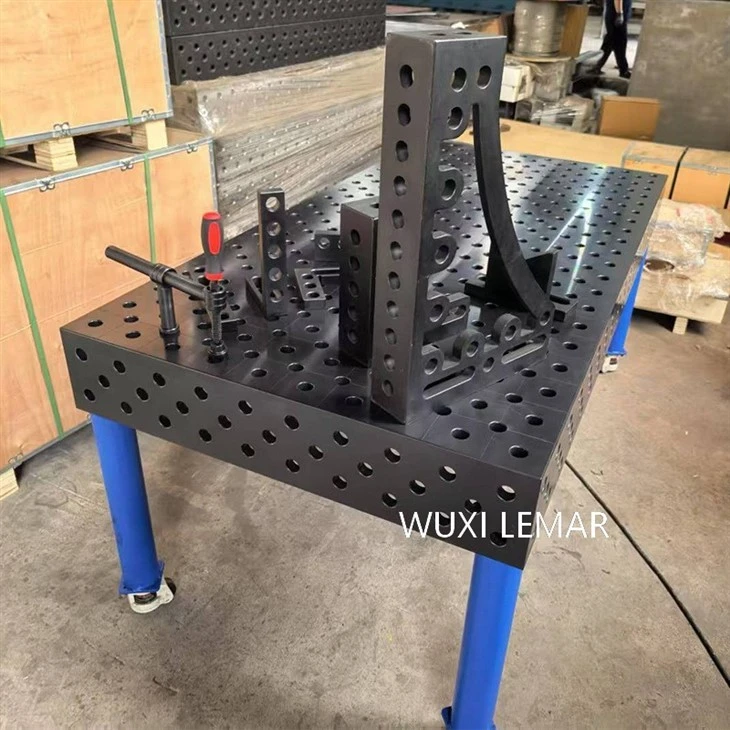

3D Flexible Welding Fixture System
3D Flexible Welding Fixture System is a modular and reconfigurable tooling system, specifically designed for accurately positioning and clamping metal workpieces of various shapes and sizes in a three-dimensional space, facilitating welding, riveting, or assembly operations.
DM Eva directly for quotation and more details↓↓↓
Products Types
Products Size
1. Planning and Design: Based on the 3D digital model or drawings of the workpiece, plan the layout of the fixture in special software (or even CAD software) and select appropriate components.
2. Construction: On the actual base modular welding platform, install positioning components, supporting components, and clamping components into the grid holes according to the plan, just like building blocks.
3. Clamping and Calibration: Place the workpiece, use positioning components to determine its datum, and then fix it with clamping components. It is usually necessary to use measuring tools (such as dial indicators) for position calibration.
4. Welding Operation: Workers or robots weld the accurately positioned workpiece.
5. Disassembly and Reassembly: After welding is completed, loosen the fixture and take out the workpiece. Most components can be disassembled for use in building fixtures for the next different workpiece.
Products Application
Main application fields
This system is widely used in industries that require high-precision and multi-variety welding:
• Automobile manufacturing: body frames, chassis, subframes, new energy vehicle battery cases, etc.
• Construction machinery: excavator booms, loader frames, crane structural parts, etc.
• Rail transit: high-speed rail/subway car body skeletons, bogie frames, etc.
• Aerospace: aircraft components, engine brackets, satellite structural parts, etc.
• Heavy equipment: wind power towers, large frames, pressure vessels, etc.
• General metal processing: any sheet metal and steel structure manufacturing involving complex welding.
Why choose us?
Related Certification
Customer Review
product delivery
Which transportation method we adopt?
We usually send 3D Flexible Welding Fixture System abroad by sea.
After service
We are always here for you
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
Contact us
If you are looking for a reliable 3D Flexible Welding Fixture System supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
