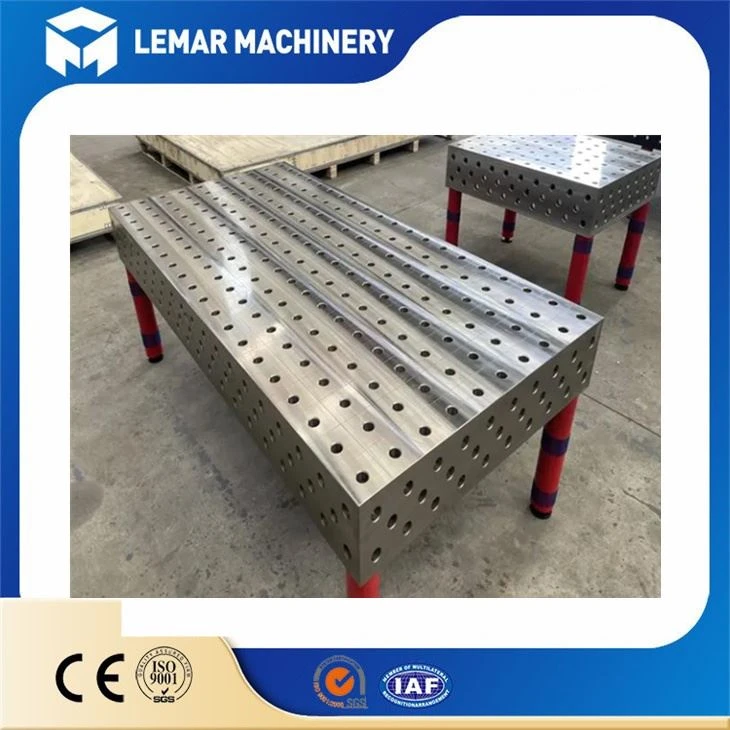

3D Welding Table With Grid Holes
3D Welding Table With Grid Holes is a highly standardized modular welding tooling system. Its core feature is that a series of standardized, high-precision grid holes are arranged on the workbench surface and the surrounding sides according to precise mathematical coordinates. These holes are usually counterbores or threaded holes, which are used for the quick installation and positioning of various clamps, supports, and positioning elements, thereby achieving precise three-dimensional spatial fixation of the welded workpieces.
DM Eva directly for quotation and more details↓↓↓
Products Types
Products Size
We offer customization and OEM services. Contact Eva for details.
3D Welding Table With Grid Holes is essentially a "mechanical coordinate system" or "materialized working grid".
• Platform as Datum: The platform itself is a large, high-precision datum plane (usually precision milled and heat-treated).
• Holes as Coordinate Points: Each grid hole represents an accurate coordinate position in space (for example, a grid system with a spacing of 100mm or 50mm).
• Components as Actuators: By installing various standardized fixture components (support blocks, angle devices, pressing arms, locating pins, etc.) on these coordinate points, special welding fixtures adapted to different workpiece shapes and sizes can be quickly constructed.
Products Workflow
Typical Workflow
1. Process Planning: In CAD software (or dedicated offline programming software), based on the digital model of the platform, design the virtual clamping of the workpiece and determine the installation coordinates of each fixture component.
2. Platform Preparation: Depending on the size of the workpiece, it may be necessary to connect multiple platform units into a single whole using locating pins and bolts.
3. Component Selection and Installation: According to the design scheme, select appropriate supporting, positioning, and clamping components from the component library, and firmly install them at the specified grid hole positions using T-nuts, bolts, and washers.
4. Workpiece Clamping and Calibration: Place the workpiece, use the fine-tuning mechanism on the components for final alignment and centering, and then lock it.
5. Welding Operation: Perform welding. Due to precise positioning, deformation can be effectively controlled and dimensions can be guaranteed.
6. Disassembly and Reconfiguration: After the workpiece is completed, loosen the fixture, remove the workpiece, and clean up the welding slag. Repeat steps 1-4 for the next workpiece.

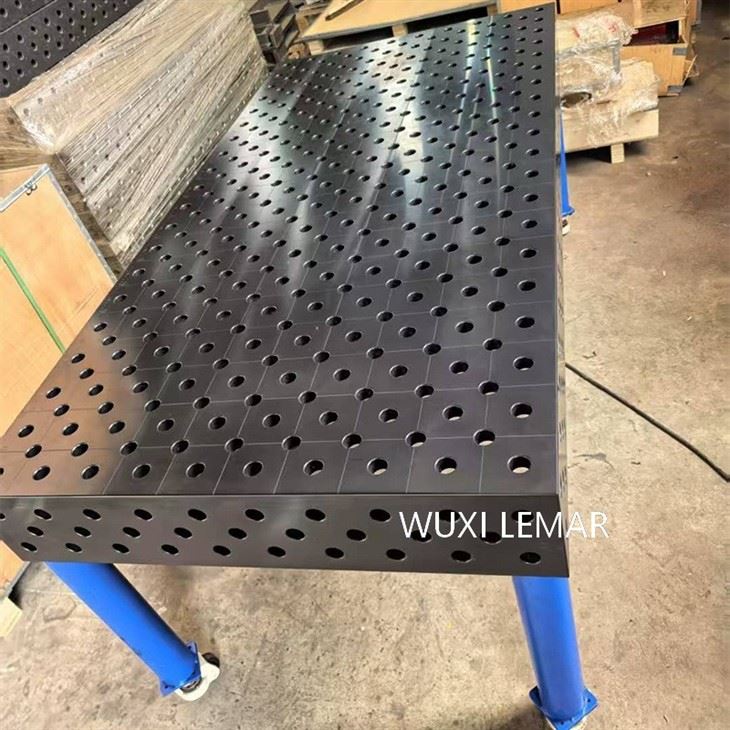

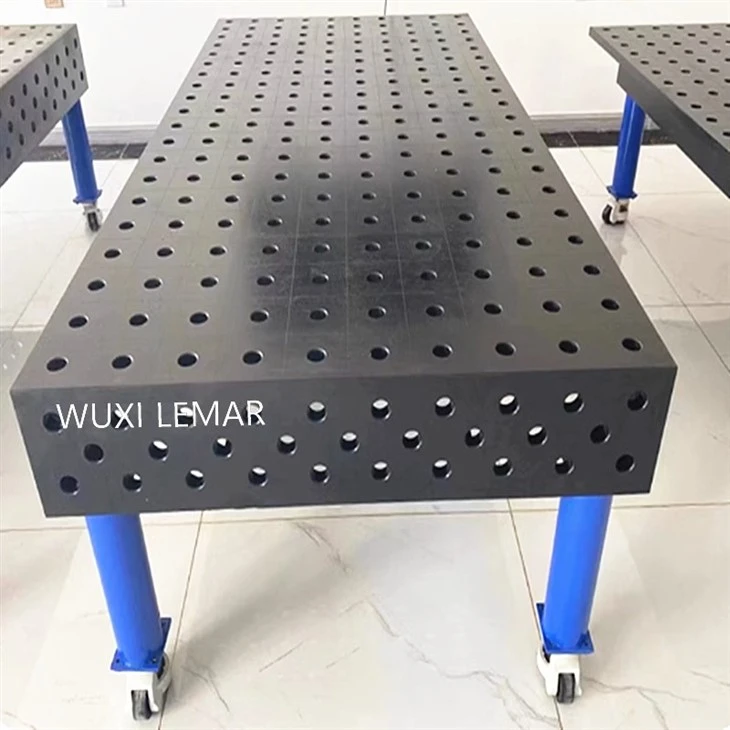

Products Display
Related Certification
Customer Review
product delivery
Which transportation method we adopt?
We usually send 3D Welding Table With Grid Holes abroad by sea.
At the same time, we will provide you with various documents required for customs clearance at the destination.
We usually use CIF/FOB/EXW trade terms, and if you have special requirements, we will also solve them for you.
After service
We are always here for you
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
3D Welding Table With Grid Holes is a physical embodiment of modern advanced manufacturing concepts:
• What it is: a modular, high-precision, reconfigurable physical coordinate system platform.
• Core value: It responds to production uncertainties with flexibility and speed, reducing production preparation time from "months/weeks" to "days/hours", perfectly meeting the current market demand for multiple varieties, small batches, and fast delivery.
• Essence: It is not just a tool, but also a transformation of production methodology-shifting from manufacturing special tools for products to quickly serving products with a universal tool system.
It is a key infrastructure connecting traditional welding processes with digital and flexible intelligent manufacturing, and plays an indispensable role as a "flexible bearing unit" in Industry 4.0 and intelligent manufacturing systems.
