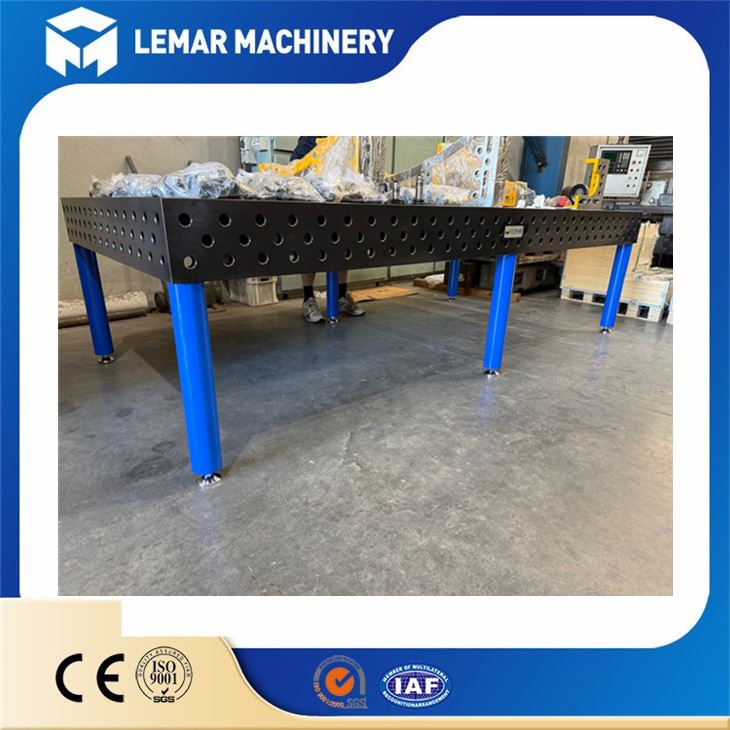

Steel Welding Table With Clamps
Steel Welding Table With Clamps is a specialized metal processing platform equipped with a standardized fixture system. It consists of a thick tabletop made of high-strength steel (usually with regularly arranged positioning holes or grooves) and a series of quick clamping devices, providing precise, stable, and repeatable clamping solutions for welding, assembly, and fitter work. This type of workbench is an upgraded version of the traditional simple welding platform, and its core value lies in improving work quality and efficiency through systematic tooling.
DM Eva directly for quotation and more details↓↓↓
Products Types
Products Size
We offer customization and OEM services. Contact Eva for details.
★ Precision Tabletop Structure
◦ Tabletop Types: Common types include those with matrix circular holes (D28/16mm system), T-slots, or square hole grids.
◦ Materials and Processing: High-quality structural steels such as Q355/HT300 are used, subjected to stress-relief annealing and precision machining with large milling machines to ensure flatness during long-term use.
◦ Standardized Grids: The hole spacing is usually multiples of 50mm, 100mm, or 2 inches, forming infinite positioning points.
★ Modular Fixture System
◦ Quick Fixtures: Including lever-type, screw-type, toggle clamps, etc., which can be operated with one hand and provide clamping forces ranging from hundreds to thousands of kilograms.
◦ Functional Accessories: V-blocks, angle gauges, stoppers, support columns, locating pins, etc., used for positioning workpieces of different shapes.
◦ Integrated Grounding: Steel Welding Table With Clamps is designed with dedicated grounding terminals or provides a good welding current loop through the tabletop itself.
★ Rigid and Stable Design
◦ Heavy-Duty Structure: Thick plate tabletop (usually ≥15mm) welded with a reinforced rib box-type base, featuring strong deformation resistance.
◦ Multi-Functional Configuration: Optional tool drawers, hangers, casters (with locking function), etc., can be equipped.
Products Workflow
Typical Workflow
1. Process planning: Analyze the workpiece drawing and determine the positioning datums and clamping points.
2. Fixture setup: Install accessories such as positioning stoppers and support columns on Steel Welding Table grid.
3. Workpiece clamping: Place the workpiece and use quick clamps to press it from the optimal direction.
4. Welding operation: Perform welding while the workpiece is rigidly fixed.
5. Disassembly and conversion: Loosen the clamps to remove the workpiece, and quickly reorganize the accessories for the next operation.
Products Display
Related Certification
Customer Review
product delivery
Which transportation method we adopt?
We usually send Steel Welding Table With Clamps abroad by sea.
At the same time, we will provide you with various documents required for customs clearance at the destination.
We usually use CIF/FOB/EXW trade terms, and if you have special requirements, we will also solve them for you.
After service
We are always here for you
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
Steel Welding Table With Clamps is an efficiency multiplier in modern sheet metal and structural part manufacturing. It has successfully transformed welding operations from "craftsmanship" that relies on personal experience into a "manufacturing process" that can be standardized and streamlined. Its value lies not only in providing a sturdy working surface but also in offering a modular and flexible clamping system, enabling small and medium-sized workshops to produce with efficiency and precision close to that of professional tooling lines.
