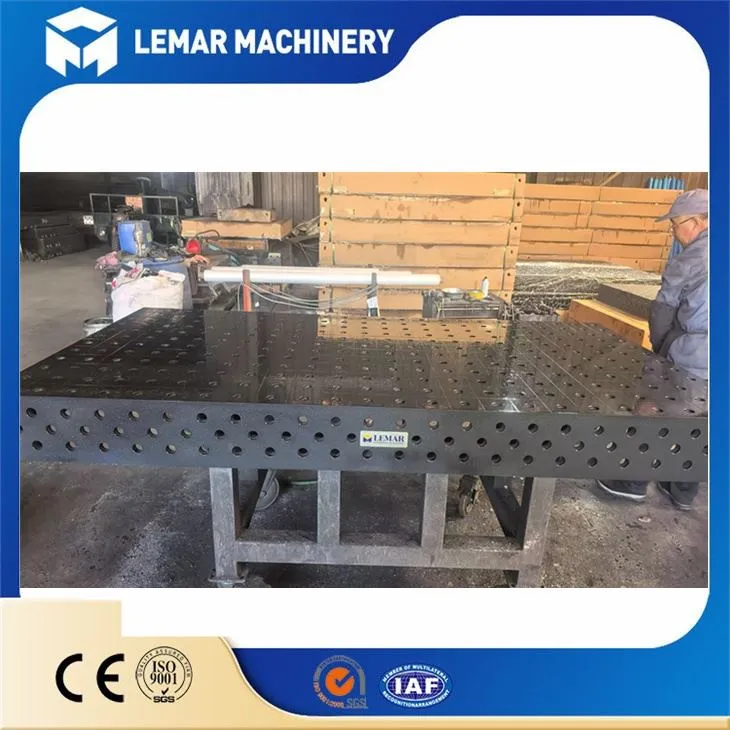

3D Welding Table For Modular Fixturing

1. 🧱 Cast Iron Material – Deformation Resistant and Vibration Absorbing
• Advantage: Made of high-strength HT250 cast iron with natural aging treatment, resulting in low internal stress. Its deformation under welding heat is only 1/3 that of ordinary steel platforms.
• Actual Benefit: Maintains flatness (±0.1mm/m²) for a long time without frequent calibration.

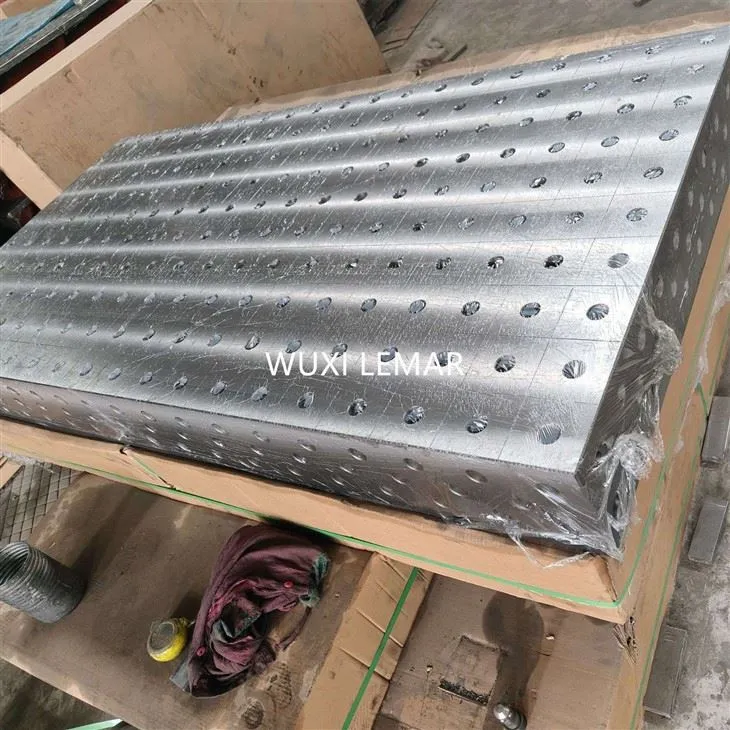

2. 📐 High-Precision 28mm Hole Grid System
• Advantage: Standard hole spacing of 100×100mm, hole diameter of 28mm, with hole position tolerance of ±0.05mm.
• Actual Benefit: Fully compatible with fixture accessories from international brands such as Siegmund and Demmeler, supporting plug-and-play usage.

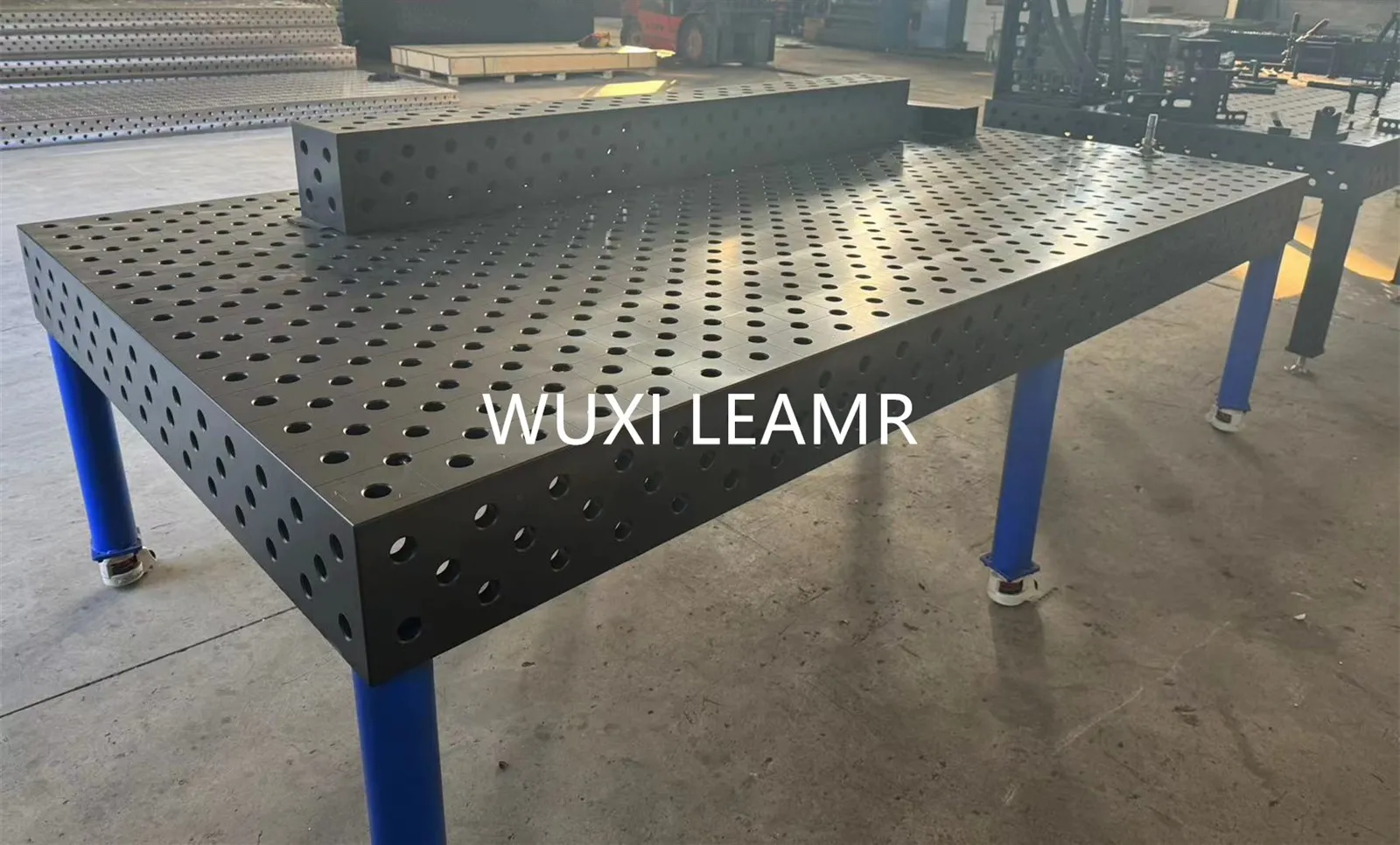

3. 🔄 Five-Sided Machining Design
• Advantage: Fixtures and stops can be mounted on the top, front, rear, left, and right sides of the worktable.
• Actual Benefit: Ideal for welding irregular parts, pipe racks, and frame structures without repeated workpiece flipping.

4. 🛡️ Wear Resistance and Long Service Life
• Advantage: Hole walls treated with high-frequency quenching (HRC 45-50), surface coated with anti-rust oil or optional blackening/chromium plating.
• Actual Benefit: With daily frequent clamping, hole positions remain stable for more than 5 years.

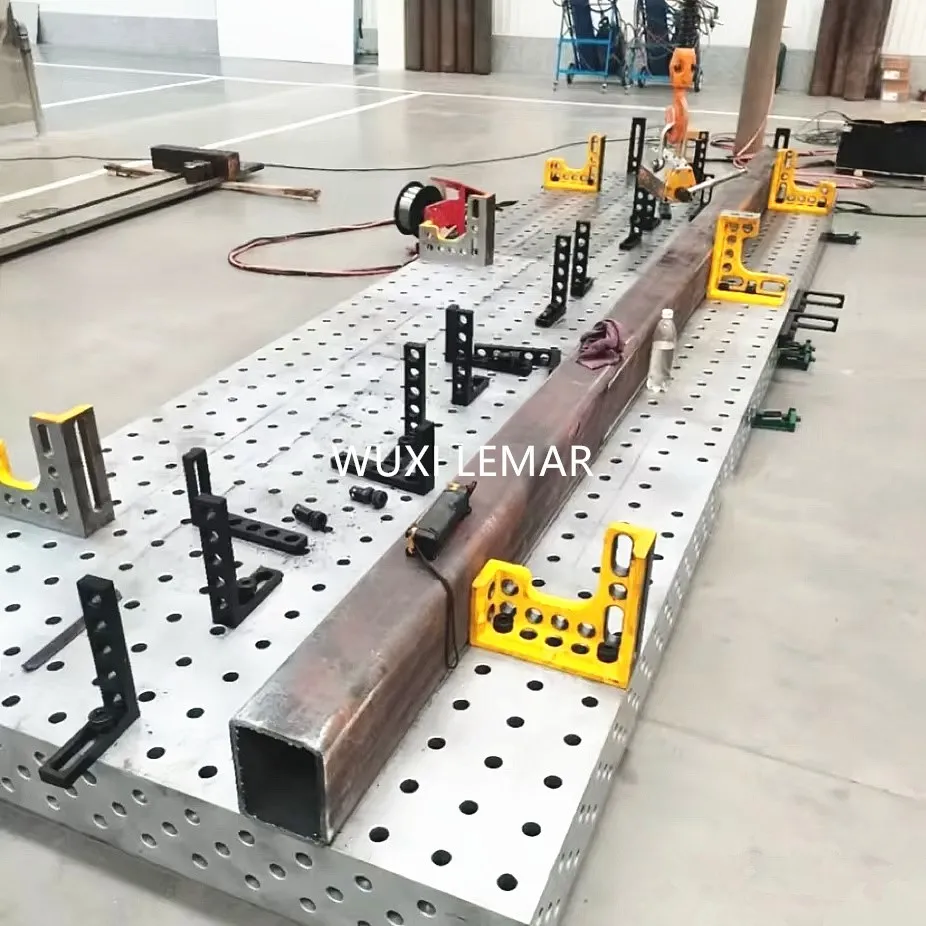

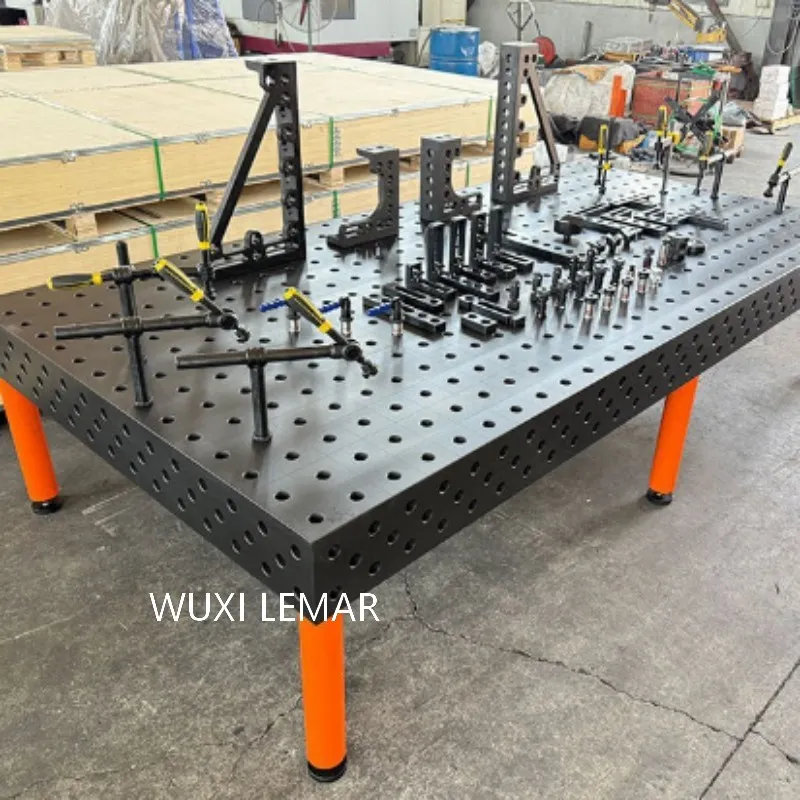

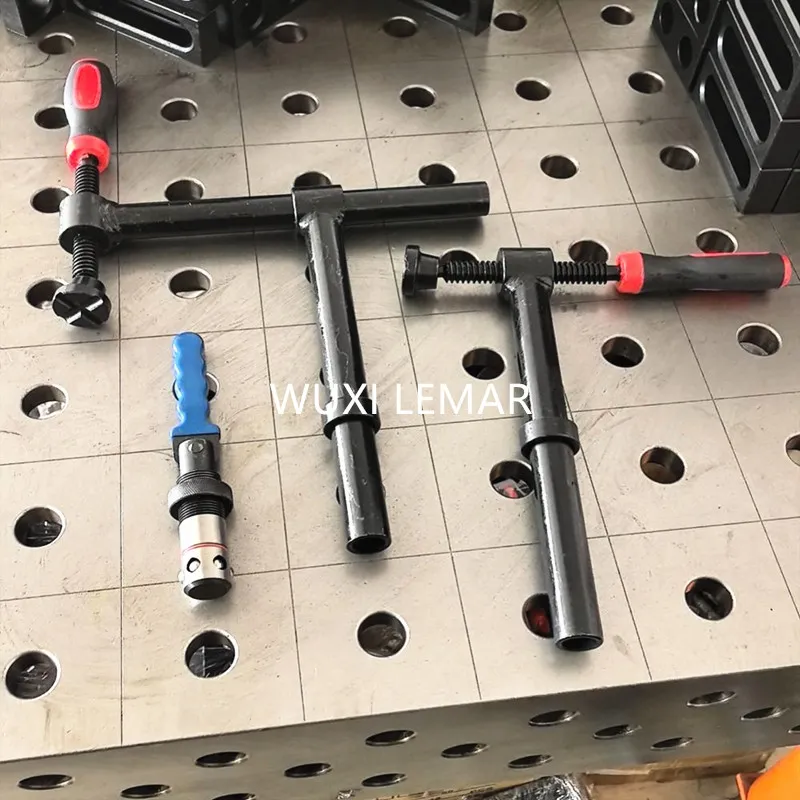

5. 🔧 Compatible with Full Range of Modular Fixtures
• Advantage: Adaptable to over 30 types of accessories including eccentric stops, quick clamps, positioning squares, V-blocks, support rods, etc.
• Actual Benefit: A single platform covers over 90% of welding fixture requirements, eliminating the need for custom fixtures for each workpiece.

6. 📦 Standardized Sizes + Customization Service
• Advantage: Standard sizes: 1000×600mm, 1500×1000mm, 2000×1000mm; customizable hole positions, dimensions, and thickness.
• Actual Benefit: Low-volume customization with no MOQ limit to meet special workpiece requirements.
