Flat Ground Steel Table with Legs

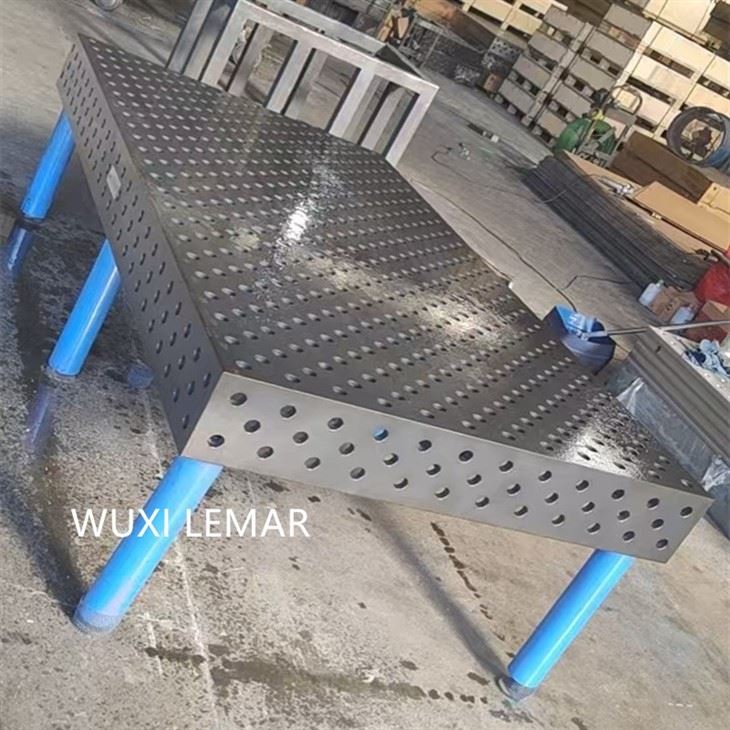

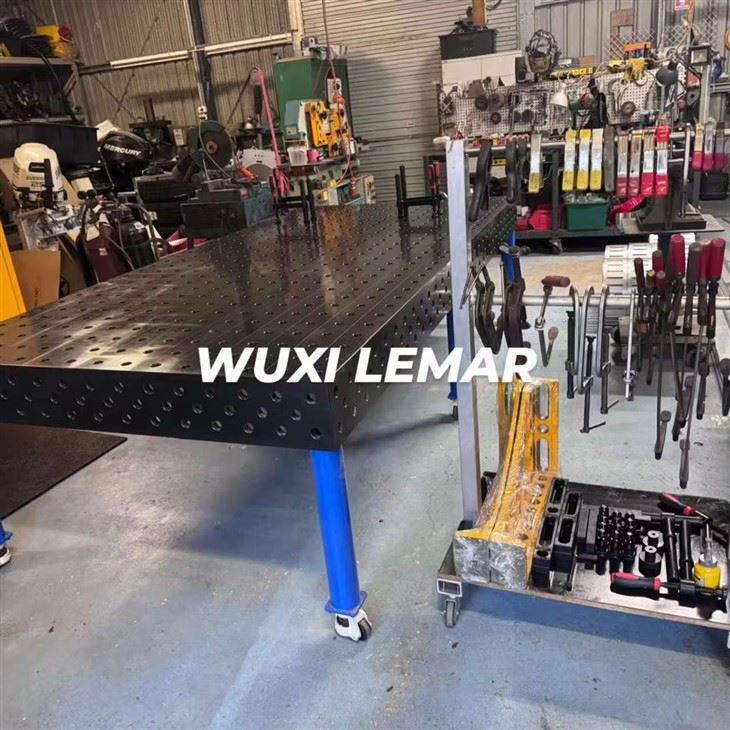

Flat Ground Steel Table with Legs is a steel platform with supporting legs and a tabletop that has undergone precision grinding. Its core value lies in providing a solid, flat, and stable reference working surface.
DM Eva directly for quotation and more details↓↓↓
Products Size
Products Type
We offer customization and OEM services. Contact Eva summer for details.
Related Accessories
Our Welding table accessories
Screw clamp
Locating bar
Magnetic bolt
Disc horizontal quick clamp
Locking pins
Angle ruler
Products Features
Main Structure and Features
1. Tabletop:
◦ Material: HT300 cast iron or Q355 steel.
◦ Process: Overall stress relief treatment, followed by precision surface grinding. The flatness tolerance can usually reach the level of 0.05mm to 0.1mm per meter.
◦ Surface treatment: Nitriding, blackening, chrome plating, or painting is applied to improve rust resistance and aesthetics.
2. Support structure:
◦ Legs: Usually welded from heavy-duty square steel or I-beam, with a sturdy structure.
◦ Crossbeams and reinforcing ribs: Dense crossbeams and reinforcing ribs are welded at the lower part of the tabletop, which is the key to preventing the tabletop from deforming under load and ensuring its long-term flatness accuracy.
◦ Anchor bolt adjustment: The bottom of the legs is usually equipped with adjustable anchor bolts to compensate for uneven ground and ensure the entire workbench is stable without shaking.
3. Optional functions:
◦ T-slots: The tabletop of some models is machined with T-slots for installing bolts and pressure plates to fix workpieces or light fixtures.
◦ Lifting lugs: Facilitate handling and installation.
◦ Tool drawers or shelves: Increase storage functions.
4. Core upgrade: Optional fixture system
◦Tabletop pre-drilled hole array: After grinding, 16mm or 28mm through holes and surrounding positioning threaded holes are machined on the tabletop at standard intervals of 50mm or 100mm.

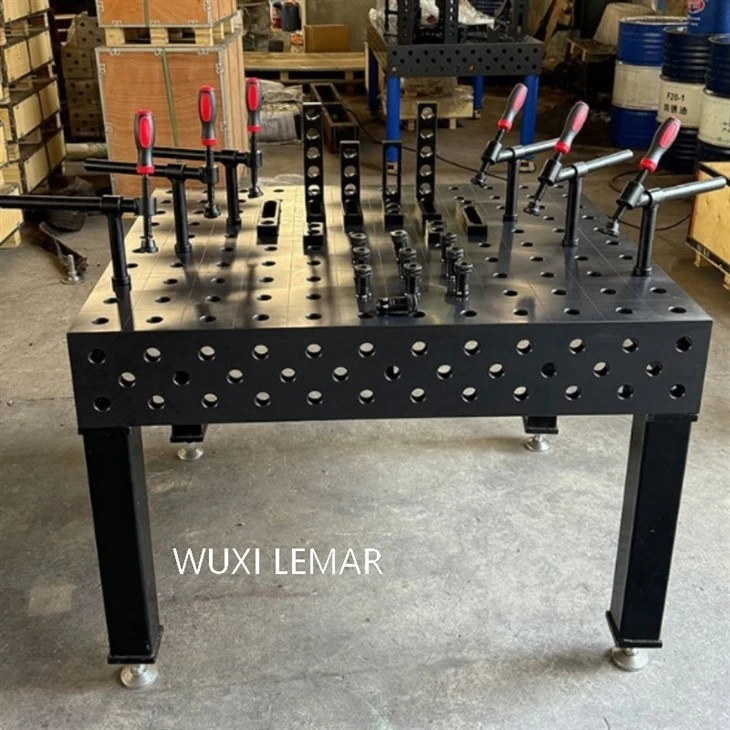

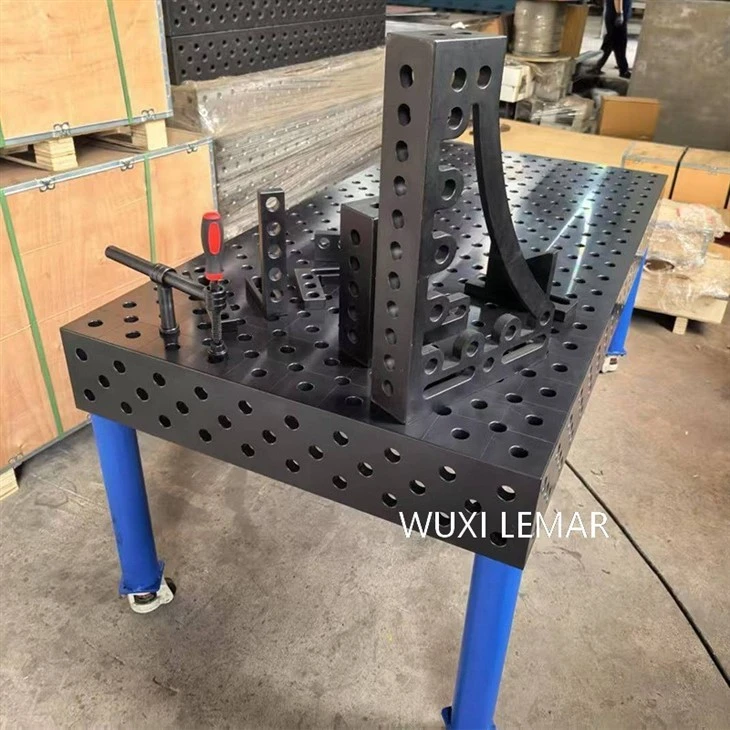

◦Once equipped with these standard hole systems, users can utilize a vast ecosystem of modular tooling accessories (such as positioning blocks, quick clamps, support columns, etc.) to achieve fast, precise, and repeatable positioning and clamping of workpieces.
Why choose us?
Related Certification
Customer Review
FAQ
1.How is the product packaged to prevent damage during transportation?
We use pallets with moisture-proof and rust-proof packaging. The surface of the pallet will be coated with rust-proof oil and covered with rust-proof paper. Protective pads will be added to the precision working surfaces to avoid scratches. For large platforms, they are packaged in flat forms, combined with reinforced steel straps to prevent deformation during transportation. At the same time, the lifting points and moisture-proof, collision-prevention marks are marked.
2.What certifications are required for exporting to the EU / the US?
To export to the EU, one needs to obtain the CE certification to ensure that the products comply with the relevant mechanical safety standards of the EU; for exporting to the US, there is no mandatory exclusive certification, but it must meet the local mechanical safety regulations and the import requirements of the customs for industrial equipment. In addition, auxiliary documents such as raw material traceability labels and mechanical test reports can be provided as needed to facilitate customs clearance.
3.Can you provide the necessary documents for customs clearance, such as the origin certificate?
We can provide all the customs clearance documents, including the origin certificate, commercial invoice, packing list, quality certificate, etc. If any special documents are needed, we can communicate in advance to customize them, helping the goods smoothly pass through the customs inspection in the destination country.
4.Which payment methods are supported?
We support various commonly used payment methods in international trade, including telegraphic transfer (T/T), Western Union remittance, letter of credit, and third-party escrow payment, etc. The specific payment ratio can be determined through negotiation based on the order amount.
If you are looking for a reliable 3D Welding Table supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
