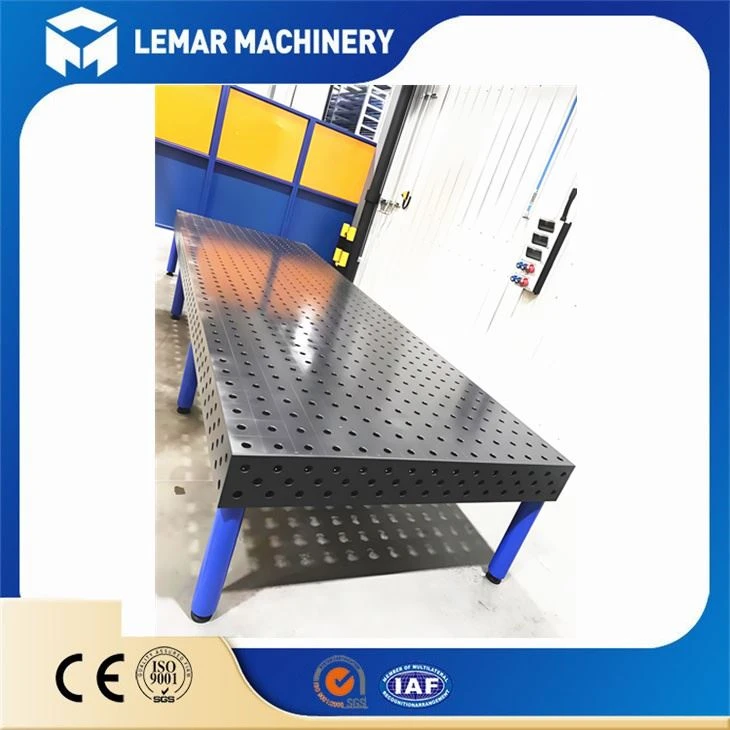

Hole Array Welding Fixture Table
Hole Array Welding Fixture Table is a modular, high-precision fixture base plate. Its core feature is that the table top is covered with standardized threaded holes arranged regularly according to a standard grid (usually with a spacing of 100mm or 50mm).
Its essence is the foundation of a universal and reconfigurable three-dimensional fixture system. Users can utilize these holes and cooperate with various standardized fixture modules (such as right-angle blocks, clamps, locating pins, support blocks, V-shaped blocks, etc.) to quickly and flexibly build special fixtures suitable for welding or assembling specific workpieces.
DM Eva directly for quotation and more details↓↓↓
Products Type
We offer customization and OEM services. Contact Eva summer for details.
Related Component
| Main Component | Description / Specifications |
|---|---|
| Platform Body | Typically made of high-quality cast iron, alloy steel, or stress-relieved steel. Features extremely high flatness, straightness, and dimensional stability. The table surface is precision-milled and heat-treated to ensure long-term resistance to deformation. |
| Standard Hole Array | Specifications: • D28 Standard: Hole Ø28mm, Thread M16, Grid Spacing 100mm ±0.02mm. • D16 Standard: Hole Ø16mm, Thread M12, Grid Spacing 50mm. • Other standards (e.g., imperial sizes) also exist. Type: Typically counterbored design, allowing bolt heads to sit below the table surface for unobstructed workpiece placement. |
| Standardized Functional Modules | • Positioning Elements: Locating pins, stop blocks, V-blocks, angle plates, etc. • Clamping Elements: Quick-action clamps, screw clamps, toggle clamps, etc. • Supporting Elements: Shims/parallels of various heights, support columns, angle brackets, etc. • Connecting Elements: T-bolts, stepped pins, locating dowel pins, etc. |
| Frame & Accessories | • Frame: Robust steel support structure, usually with leveling feet. • Accessories: May include chip trays/chutes, tooling carts, lifting devices, etc. |
Our Welding table accessories
Screw clamp
Locating bar
Magnetic bolt
Disc horizontal quick clamp
Locking pins
Angle ruler
Products Features
Main Features and Advantages
• Exceptionally high flexibility: One Hole Array Welding Fixture Table system can meet the clamping needs of numerous workpieces with different shapes and sizes, replacing a large number of special welding fixtures. It is particularly suitable for production modes with multiple varieties, small batches, and variable production lines (such as engineering machinery, rail transit, aerospace, and heavy equipment manufacturing).
• High repeat positioning accuracy: The standardized high-precision hole system ensures that each built fixture has consistent accuracy (up to ±0.05mm), guaranteeing stable product welding quality.
• Shortened production preparation time: Compared with the traditional design and manufacturing of special fixtures (which takes several weeks to months), the use of the hole system platform can complete the construction and verification of fixtures within hours or days, greatly accelerating the new product introduction (NPI).
• Reduced costs: Eliminates the expenses for designing and manufacturing special fixtures as well as the costs for warehousing management. Functional modules can be reused, resulting in a high long-term return on investment.
• Improved welding quality: Rigid clamping effectively controls welding deformation; precise positioning ensures the assembly gap and relative position between components, providing a perfect foundation for robotic automated welding.
• Promotion of standardization and 5S management: All components are standardized, making the workplace neat and orderly, and easy to manage.
Why choose us?
Related Certification
Customer Review
FAQ
1.How is the product packaged to prevent damage during transportation?
We use pallets with moisture-proof and rust-proof packaging. The surface of the pallet will be coated with rust-proof oil and covered with rust-proof paper. Protective pads will be added to the precision working surfaces to avoid scratches. For large platforms, they are packaged in flat forms, combined with reinforced steel straps to prevent deformation during transportation. At the same time, the lifting points and moisture-proof, collision-prevention marks are marked.
2.What certifications are required for exporting to the EU / the US?
To export to the EU, one needs to obtain the CE certification to ensure that the products comply with the relevant mechanical safety standards of the EU; for exporting to the US, there is no mandatory exclusive certification, but it must meet the local mechanical safety regulations and the import requirements of the customs for industrial equipment. In addition, auxiliary documents such as raw material traceability labels and mechanical test reports can be provided as needed to facilitate customs clearance.
3.Can you provide the necessary documents for customs clearance, such as the origin certificate?
We can provide all the customs clearance documents, including the origin certificate, commercial invoice, packing list, quality certificate, etc. If any special documents are needed, we can communicate in advance to customize them, helping the goods smoothly pass through the customs inspection in the destination country.
4.Which payment methods are supported?
We support various commonly used payment methods in international trade, including telegraphic transfer (T/T), Western Union remittance, letter of credit, and third-party escrow payment, etc. The specific payment ratio can be determined through negotiation based on the order amount.
If you are looking for a reliable Hole Array Welding Fixture Table supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
