Gas Cylinder Welding Machine is a special machine suitable for gas cylinder circumferential seam welding. It consists of a welding positioner, a pneumatic welding torch holder, a pneumatic tail top and a wire gauge with an effective welding length of 1.5 meters. It can be equipped with a variety of welding power sources such as TIG MIG LASER for automatic welding.
Functions of each component
Welding Positioer
Loading from 10kg~300kg

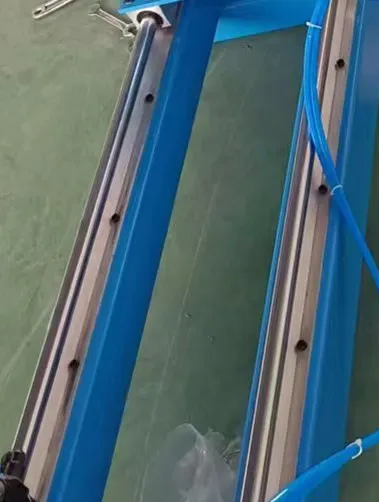

Wire Guage
Ensure consistency
Support Roller
Support Long pipe
Pneumatic tail
Tighten and keep concentric
Positioner Description
| Model | 30kg Welding positioner | 30kg Timing Welding Positioner | 30kg CNC Welding Positioner |
| Loading capacity | 30kg | 30kg | 30kg |
| Positioner diameter | 315mm | 315mm | 315mm |
| Drive motor | DC 110V 80W | DC 110V 80W | 57 Step Motor |
| Hole diameter | 25/65mm | 25/65mm | 25/65mm |
| Tilt angle | 0-100° | 0-100° | 0-100° |
| Rotating speed | 1-15 or 0.5-5rpm | 1-15 or 0.5-5rpm | 0.01-5rpm |
| Standard | Positioner+control box+Pedel switch+Power+Manual+Certificat | ||
| Optional | Welding chuck;Welding torch holder;Pneumatic tail;Support roller | ||
Note:The body color, positioner diameter and speed of the Gas Cylinder Welding Machine can be customized according to the customer's workpiece requirements.
