Products Introduction

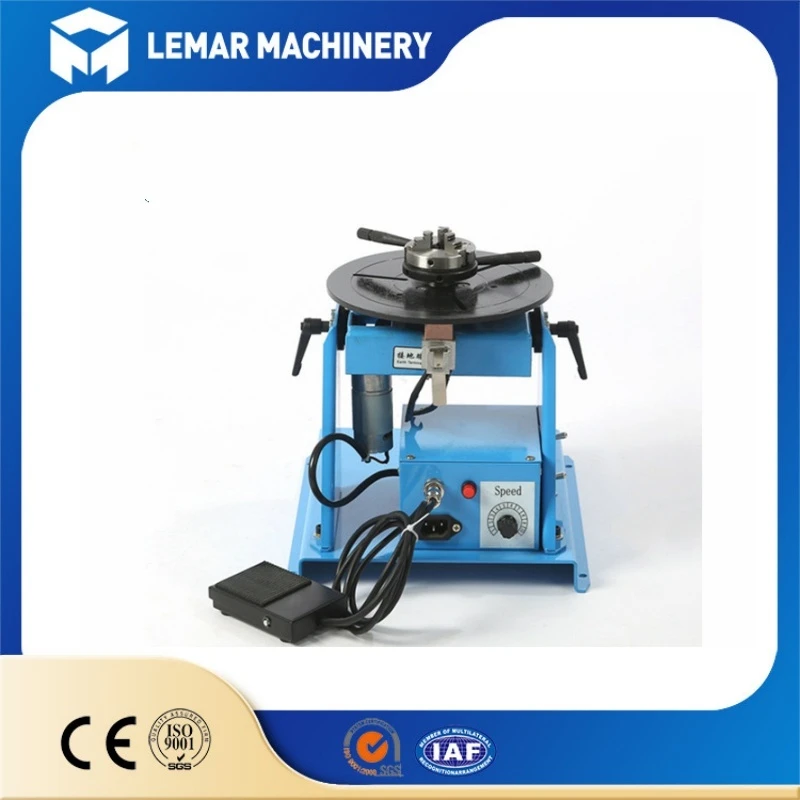

This 10kg Welding Rotary Turntable is a compact light load welding rotating platform designed for small flanges, tiny pipe fittings and miniature hardware parts.
Equipped with stepless speed regulation and 0-90° tilting function, the mini rotary welding table delivers stable uniform rotation, greatly improving annular welding quality and workshop efficiency for small batch production.
Technical Parameter Table
| Item | Specification |
|---|---|
| Model | BY-10 |
| Rated Load | 10kg Horizontal / 5kg Vertical |
| Core Name | 10kg Welding Rotary Turntable |
| Type | Mini Rotary Welding Table |
| Tilting Range | 0°–90° Self-locking Adjustment |
| Rotation Speed | 2–10 RPM Stepless Adjustable |
| Standard Chuck | 65mm 3-Jaw Lathe Chuck |
| Motor Power | 20W DC Low Noise Motor |
| Control Mode | Control Box + Foot Pedal Switch |
| Standard Power | 220V/50Hz, Custom 110V/60Hz Available |
| Application | Small pipe, flange, hardware, sensor annular welding & polishing |
Our advantage
Rated 10kg load, lightweight mini rotary welding table, save workshop placement space

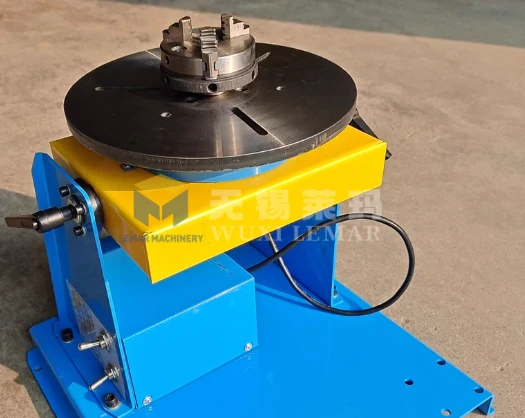

0-90° adjustable tilting angle with self-locking worm gear, lock any welding position steadily
Stepless variable rotation speed, wide speed range to fit TIG/MIG annular welding demands

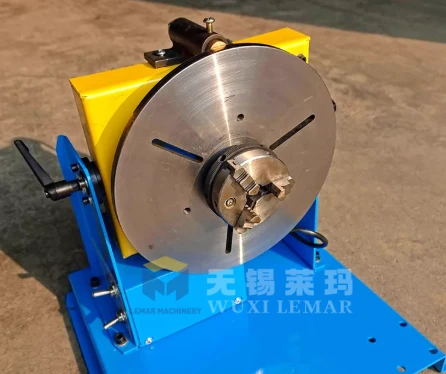

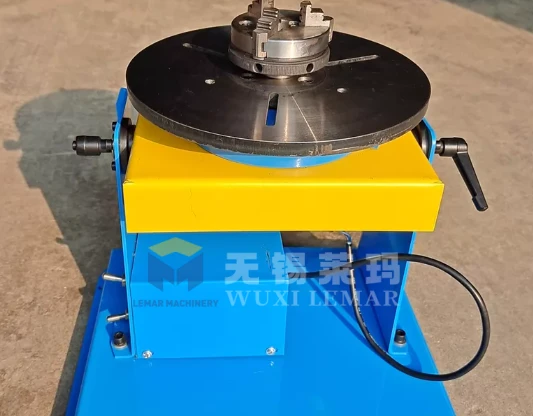

Standard 3-jaw chuck for fast clamping small pipes, flanges and round hardware
Foot switch control free operators' hands, simple operation for new workers
Low vibration & low noise design, this bench top welding turntable reduces welding reject rate
Complete voltage customization, suitable for global small welding production lines
Sealed dustproof housing prevents welding spatter damage and prolongs machine service life
Buying Guide For Light Welding Turntable
Choose 10kg Welding Rotary Turntable if all workpieces weight below 10kg, avoid oversize heavy positioner waste cost
Foot pedal control design is recommended for long-time continuous small parts welding
Select mini rotary welding table with tilting function for multi-angle annular welding
IConfirm local power voltage before ordering, we support customized voltage for bench top welding turntable
Application Scope
This 10kg Welding Rotary Turntable is widely used in light metal processing, hardware manufacturing, instrument fitting and pipeline maintenance.
The portable welding rotary positioning table fits circumferential welding of tiny stainless pipe, small flange parts, miniature cylinder accessories.
Besides welding, the bench top welding turntable also supports workpiece polishing, grinding and assembly inspection, multi-purpose for small workshop daily use.
Turntable stops rotating suddenly
Reason: Loose foot switch wire, overload protection triggered
Solution: Reconnect control cable, remove overweight workpiece and restart the mini rotary welding table
Unstable rotation speed
Reason: Poor power contact, DC motor agingSolution: Switch to stable industrial power supply, inspect motor circuit of the 10kg Welding Rotary Turntable
Tilting angle can not lock
Solution: Tighten the positioning bolt on the miniature pipe welding rotator
Customer feedback
Company Certification
Product packaging
Frequently Asked Questions
Q1: What is the max load of this 10kg Welding Rotary Turntable?
+
-
A: Horizontal rated load 10kg, vertical bearing 5kg, ideal for tiny light cylindrical workpieces.
Q2: Can this mini rotary welding table tilt to any welding angle?
+
-
A: Yes, 0-90° adjustable tilting with self-locking structure, fix any angle securely.
Q3: Is foot switch standard equipped for the bench top welding turntable?
+
-
A: Foot pedal is standard matching, free your hands during welding operation.
Q4: What welding methods can this rotary turntable match?
+
-
A: It perfectly adapts TIG, MIG and argon arc welding for small circular workpieces.
Q5: Can we customize the working voltage of the turntable?
+
-
A: Sure, we support custom voltages like 110V/60Hz to meet different national standards.
