Product Description

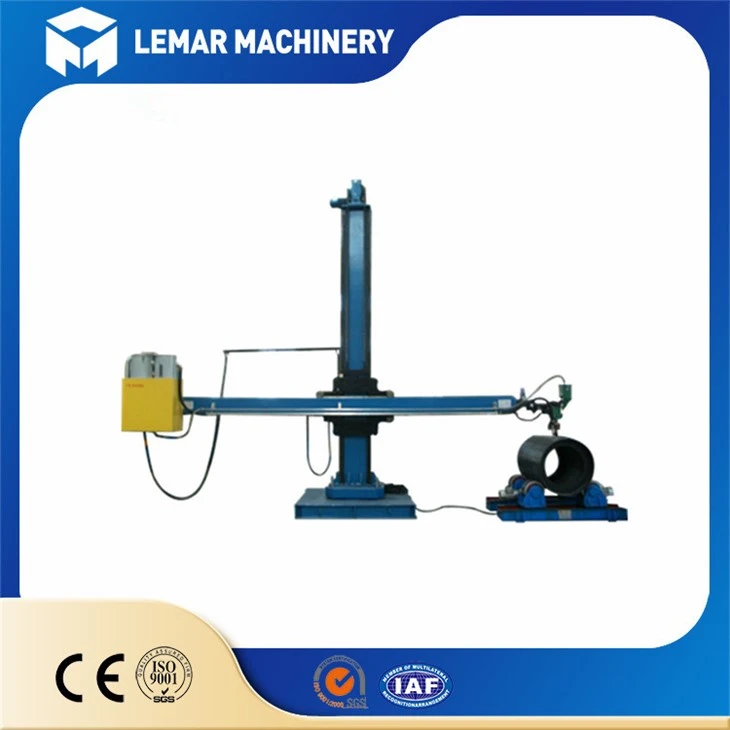

This 6060 Series Welding Manipulator hand has the characteristics of flexible, convenient and fast lifting and lowering of the workpiece. The machine can be customized according to customer requirements.
Specification:
Model: HJ6060
Effective boom extension stroke:4~9m
Effective boom vertical stroke:6m
Boom extension speed:120-1200mm/min
Boom elevation speed:1000mm/min
Column rotation degree:180°(manual)
End loading:200KG
Trolley travel speed:2000mm/min
Centre distance:1560mm
Cross adjusting device:Up/down:100mm Left/Right:100mm
Feature
The welding manipulators can be customized and produced.
The column and boom are welded parts, and the column adopts tempering welding with high precision.
The cantilever lift is equipped with a safety fall protection device.
The horizontal slider of the welding torch is installed in front of the boom to realize the vertical and horizontal adjustment of the welding torch.
There is a ladder on the column for easy maintenance. The staff stayed on the platform.
Suitable for various welding processes of TIG/MIG/SAW.
The wireless remote control can be configured according to customer requirements, which is easy to use.
