CE Approved Welding Fume Extractor
Introduction
A welding fume purifier is an industrial air purification device used to capture, filter, and purify harmful fumes, gases, and particulate matter generated during the welding process at the source (such as near the welding torch). Its main purpose is to protect the health of workers and improve the air quality in the workshop.
The "CE" mark is a mandatory safety certification mark for products entering the EU market. For welding fume purifiers, obtaining CE certification means:
1. Compliance with specific EU directives/regulations.
2. Undergoing conformity assessment: Manufacturers have designed, tested, and conducted risk assessments on products in accordance with regulatory requirements, and issued corresponding technical documents.
3. Legal permission: It is a "passport" for products to circulate freely in the EU market.
Products Parameters
Standard Technical Features
| Item | Specification |
|---|---|
| Power Supply | 380V / 50Hz |
| Cleaning System | Automatic pulse-jet filter cleaning |
| Compressed Air | 0.4 – 0.6 MPa |
| Filter Type | High-efficiency industrial cartridge filters |
| Configuration Options | D1 (no extraction arm) / A1 (1 arm) / A2 (2 arms) |
Specification Overview
| Series | Models | Airflow (m³/h) | Power (kW) | Filter Area (m²) | Size Class | Recommended Application |
|---|---|---|---|---|---|---|
| LMS-020 C Series | 1500 / 2200 / 3000 | 1500–3000 | 1.5–3.0 | 8–15 | Compact | Single welding station, small workshops |
| LMS-020 S Series | 2200 / 3000 | 2500–3000 | 2.2–3.0 | 15 | Standard | Multiple stations, fabrication workshops |
| LMS-020 L Series | 3500 | 3000–3500 | 4.0 | 20 | Large | Heavy welding, high fume concentration |
Need help selecting the right model?
Contact Eva | Lemarmachine Factory
📞WhatsApp: +86 159 9526 9947
Products Advantage
that's our Advantages
Importance of Using CE Approved Welding Fume Extractor
1. Protecting Workers' Health: Welding fumes contain metal oxides such as manganese, chromium, nickel, and fluorides. Long-term inhalation can lead to "welder's lung" (metal dust deposition disease), pneumoconiosis, asthma, and even cancer. Effective suction is the primary protective measure.
2. Legal Compliance: In the EU and many countries and regions that have adopted similar regulations, providing a safe working environment for workers is a statutory obligation of employers. Using CE-certified equipment is important evidence to prove that they have fulfilled this obligation.
3. Improving Production Efficiency: A clean working environment can enhance visibility, reduce errors, and improve employees' comfort and morale.
4. Reducing Maintenance Costs: Reducing the spread of fumes in the workshop can lower the load on the entire plant's ventilation system, keep machinery and equipment clean, and reduce maintenance.
5. Environmental Protection: Preventing pollutants from being emitted into the outdoor atmosphere.
Products Choosing
Points to Note When Selecting
1. Verify the authenticity of the CE mark: Check if there is a clear CE mark on the product nameplate and instruction manual, and request the EU Declaration of Conformity from the manufacturer.
2. Match application requirements: Select a model with appropriate air volume, suction power, and arm length based on the welding process (MIG/MAG, TIG, manual arc welding), materials, operating frequency, and space size.
3. Pay attention to the filtration system: Understand the filter element level (such as H14 HEPA), service life, and replacement cost. For stainless steel or special alloy welding, attention should be paid to the filtering capacity for specific substances such as chromium and nickel.
Products Transport
Which transportation method should we adopt?
We offer flexible shipping solutions and collaborate with reliable logistics partners:
Shipping methods: Depending on the volume, weight of CE Approved Welding Fume Extractors and your requirements, we can arrange road transportation, railway transportation or sea transportation.
Division of responsibilities:
Ex Works (EXW): Customers pick up the goods themselves or designate a freight forwarder to pick up the goods at the factory, and the transportation risks shall be borne by the customers.
Cost, Insurance and Freight/Free on Board (CIF/FOB, etc.): We will be responsible for arranging transportation to the designated port, and the specific terms shall be subject to the contract.
Door-to-door service: We can provide all-inclusive logistics services to deliver goods to the designated location (additional quotation is required).
Loading and unloading suggestions: It is recommended to use a forklift for loading and unloading. The fork teeth must be aligned with the slots or supporting wood at the bottom of the packing box. Single-point lifting or collision is strictly prohibited.
daily Maintenance
• Routine Maintenance: Clean the pre-filter of CE Approved Welding Fume Extractor every week and check the clogging of the filter cartridge every month.
• Filter Element Replacement: Replace the filter element when the differential pressure gauge shows ≥1000Pa.
• Safety Warning: Do not use non-explosion-proof models in an environment with flammable gases.
Our Service Processes
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6

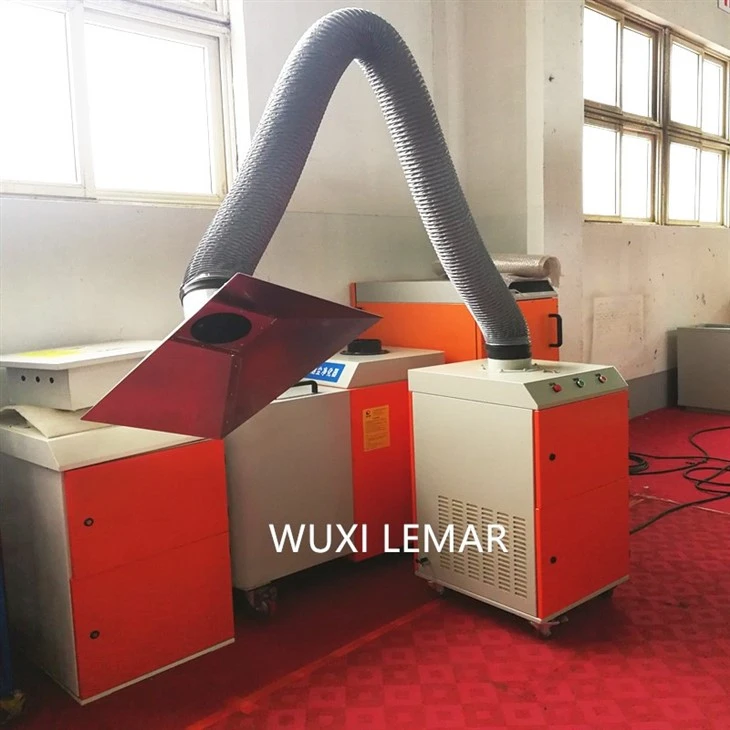

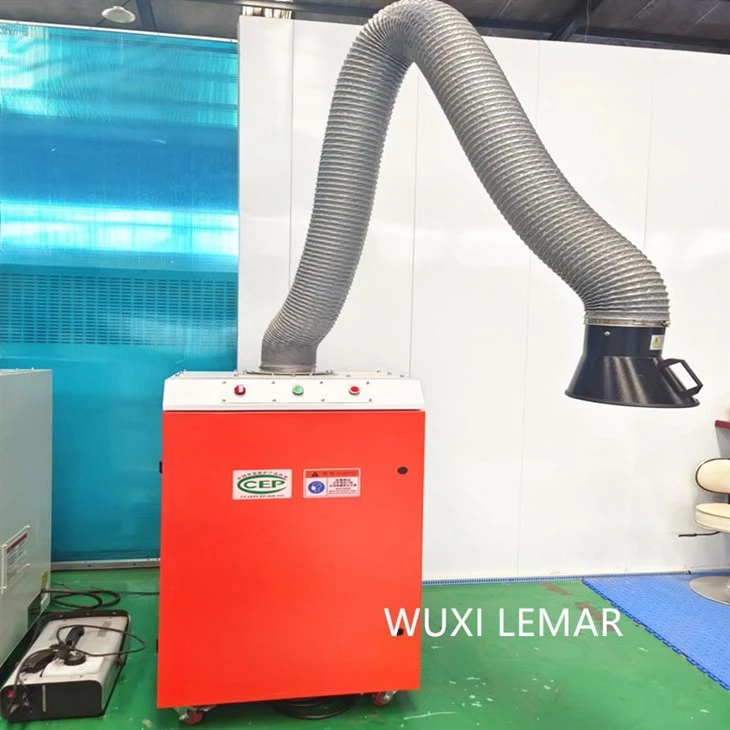

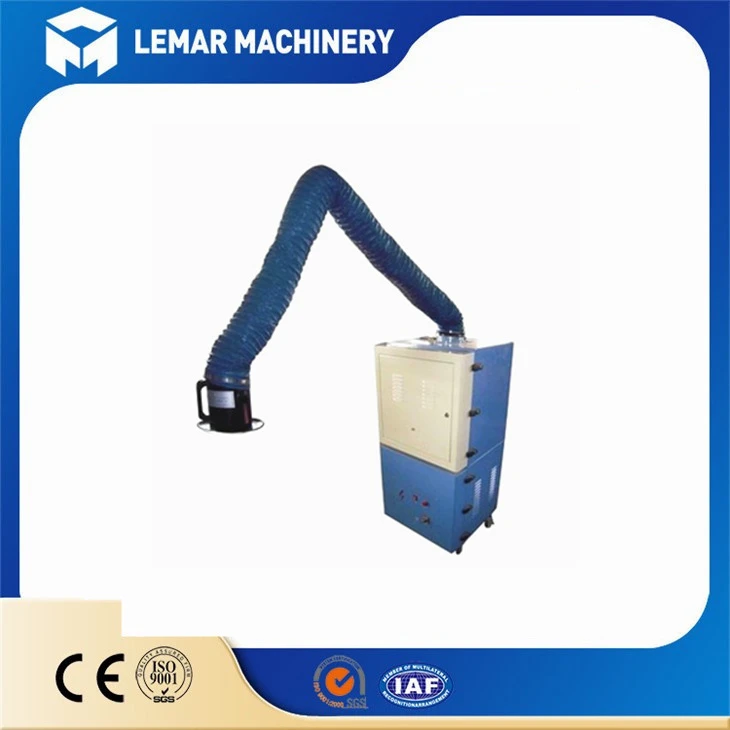

Products Display
Summary
We have many years of experience in producing welding equipment, and our products are exported to the United States, Europe, and the Middle East.
Our address
505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI, CHINA
Phone Number
+86 159 952 699 47(WA/WE)
evasummer@lemarmetal.com
CE Approved Welding Fume Extractor is not just a product label; it also represents that this welding fume purification equipment meets the strict standards stipulated by EU laws in terms of safety, health, environmental protection, and performance. For any enterprise operating in the European market or emphasizing international standards, purchasing and using CE-certified welding fume extractors is a key investment in protecting employees, fulfilling legal responsibilities, and achieving sustainable development.
