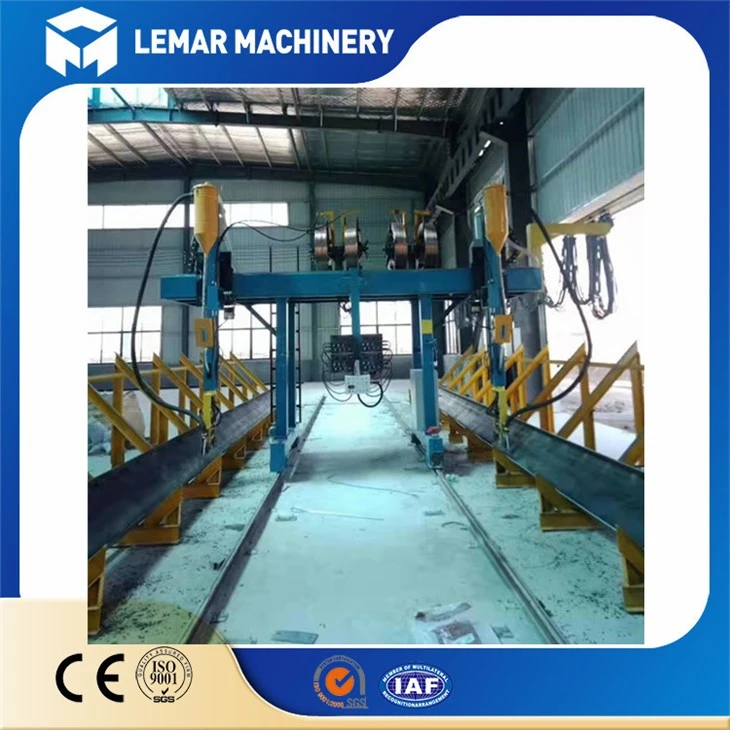

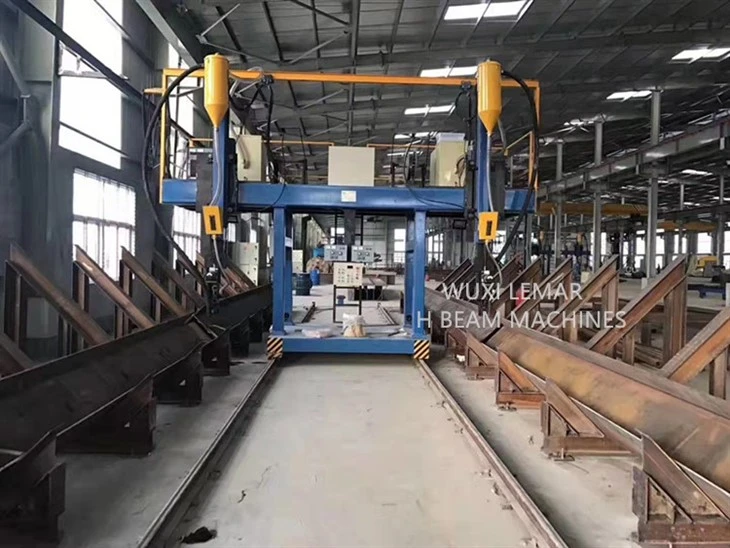

Double Cantilever Submerged Arc Welding Machine

The rigidity and strength of the H-shaped steel gantry welding frame have been calculated in detail, and the design is advanced and reasonable. After the main parts are welded, the stress is relieved, the operation is safe and reliable, and the service life is long.

The traveling mechanism is controlled by two AC motors through frequency conversion to realize bilateral synchronous drive.

The side of the steel rail is equipped with a wheel support mechanism to ensure the smooth and safe operation of the gantry of the H-shaped steel gantry welding machine.

Through multiple sets of adjustable eccentric support wheels and high-precision rectangular guide rails, the welding head runs smoothly up and down, left and right. Both the left and right movement of the slide plate and the up and down movement of the welding arm adopt a motor reducer and a rack and pinion mechanism to adapt to the welding of different specifications of steel, avoiding the phenomenon that the positioning cannot be stopped in the weld.

The middle cylinder is driven to ensure stable and reliable operation.

H-shaped steel gantry welding machine is equipped with H-shaped steel arc guide frame, which can be used for boat-shaped welding of H-shaped steel.

The arc guide frame adopts three-axis mechanical follow-up.

The up and down follow-up adopts pneumatic and welding arm self-weight guide wheels to compress the workpiece. Welding deviation phenomenon.
