H Beam Auto Welding Assembly Machine
The steel structure production line should have enough space for assembly and welding, which shall not affect the welding operation and welder's observation, and shall not hinder the loading and unloading of weldments. All positioning elements and clamping mechanisms should be kept at a proper distance from the weld bead, or arranged under or on the side of the weldment. The actuator of the clamping mechanism should be able to expand or contract or index.
Products parameters
|
Web plate height |
Web Plate Thickness |
Straightening Speed |
Flange Plate Thickness |
Flange Plate Thickness |
Main Machine Power |
|
200-1500mm |
6-14mm |
0.35-3m/min |
200-800mm |
6-40mm |
17.5KW |
Products features
Feature

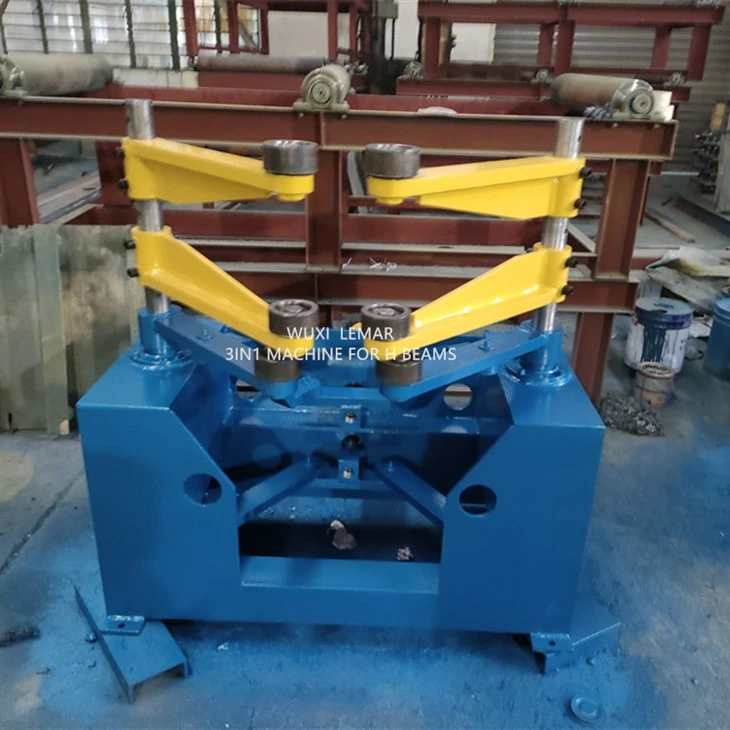

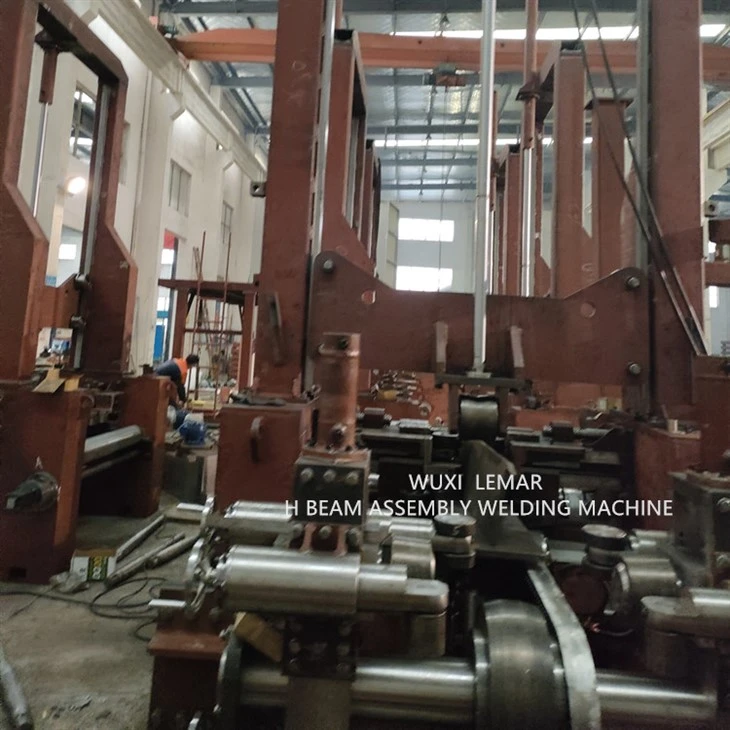

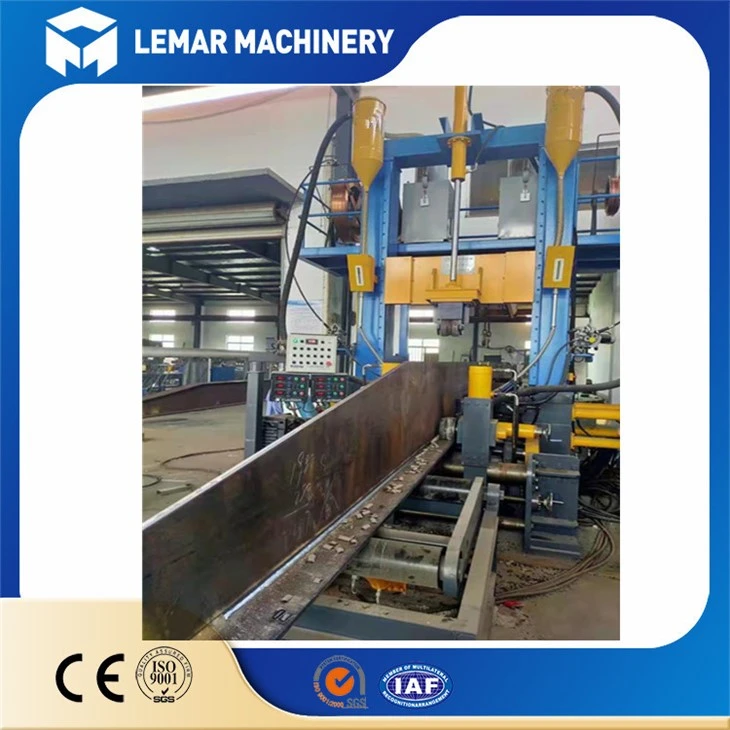

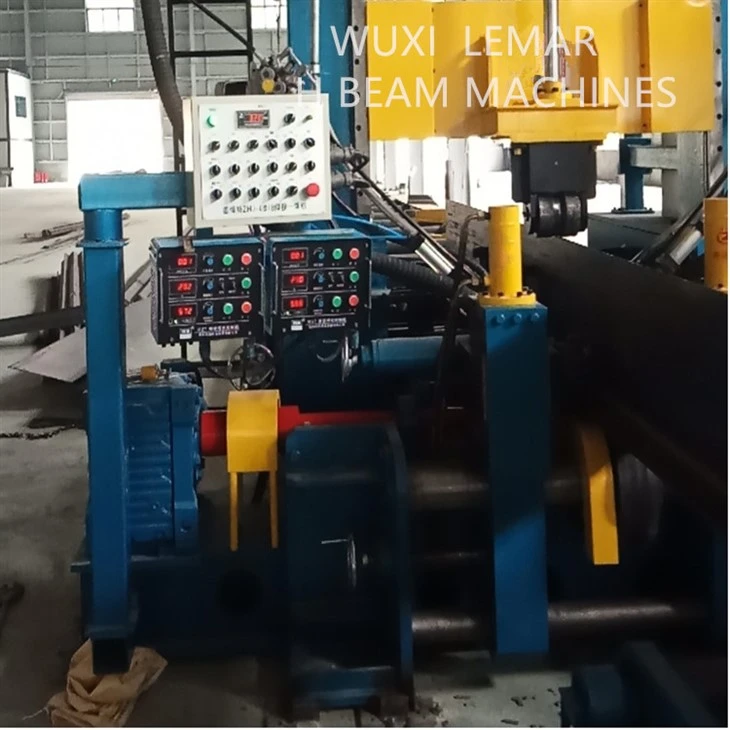

This H beam auto welding assembly machine is a dedicated H-beam assembling, welding and straightening machine. It combines the three processes on one machine to improve the production efficiency of the H-beam production line, reduce costs and save installation space. It can efficiently produce H-shaped steel and T-shaped steel.
Our advantages
Wuxi Lemar machine is different from others：
|
Wuxi Lemar |
Others |
|
Web height：200-2000 ㎜,Web thickness： 6-25㎜, Flange width：150-800 ㎜,Flange thickness： 6-30㎜ |
Web height：200-1500 ㎜,Web thickness： 6-14㎜, Flange width：200-800 ㎜,Flange thickness： 6-20㎜ |
|
Two sets of Chengdu Zhenzhong MZ-1250B digital inverse single arc single-wire buried arc welding system (current voltage can be preset welded parameters according to the thickness of the steel plate). |
Only with ordinary submerged arc welding, the current, voltage, and welding speed cannot be set according to the thickness of H -shaped steel plate. It is difficult for the operator to master the welding process. |
|
The hydraulic upper pressure straightening is used, and the correction force is large, and the correction amount can be adjusted during the welding production process. Straightening voltage cylinder diameter ¢ 100mm |
Straightening with eccentric wheel adjustment, you need to stop in welding production to adjust the correction amount, and the Straightening power is small. |
