Using a gantry frame as the main machine is the feature of H beam steel structure Submerged welding machine.The gantry frame structure is composed of beams, columns and upper platform.The gantry frame adopts square pine channel steel structure, the process eliminates stress, and the structure is firm and stable.

1.Each walking beam is driven by a motor reducer to form a dual drive system, which runs smoothly and reliably.

2.The web clamp wheels are arranged in the front and rear four groups, and the upper and lower layers of combination structure can be corrected after correction of Web's tiny bending to improve the accuracy of the group and solve the phenomenon of the establishment of the group;

3.The lifting of pressure beam is stable and flexible: the upper and lower lifting mechanisms use rectangular guide rails and square groove pulleys for orientation. The rectangular guide rail of this h beam automatic welding machine has the advantages of resistance and high force; the square groove pulley rolling friction has the advantages of small resistance and flexible rolling.

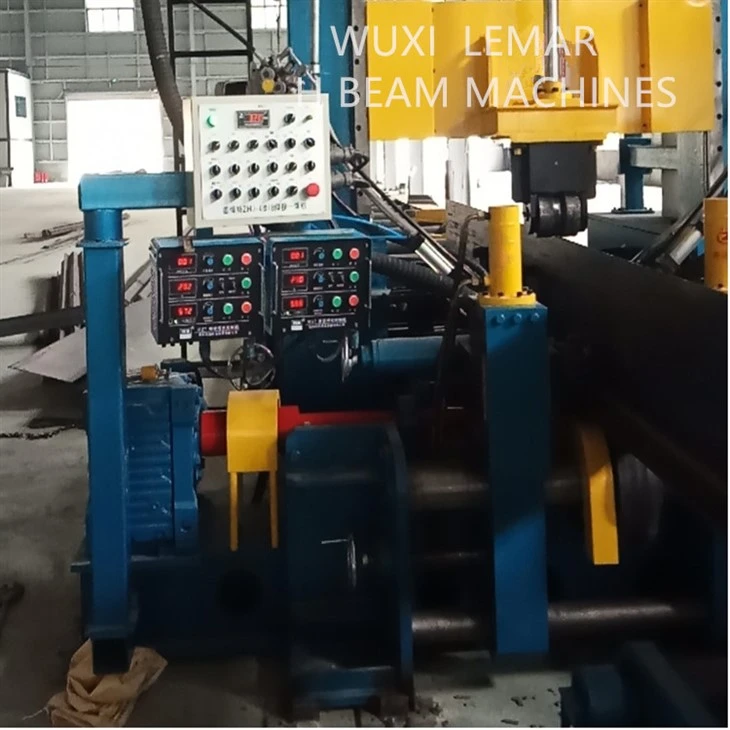

4.The electric control system consists of an electric control box and two operation panels. The electric control box is installed on the walking beam, and two operation panels are fixed on the front of the upper platform. They are placed separately for easy operation.
