Product Description

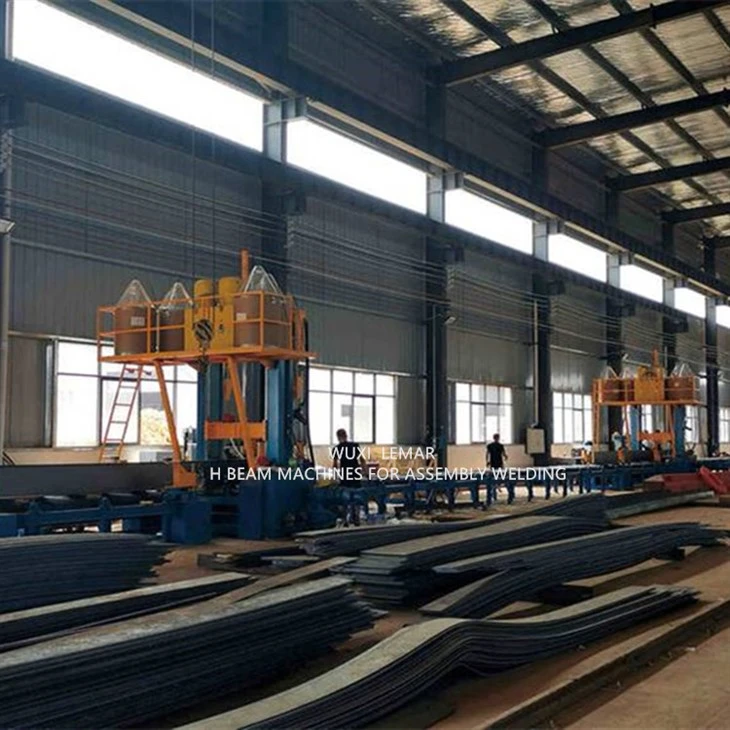

H-Beam Automatic Welding Production Line is a new-designed production line. It adopts foreign advanced technology and has become a unique, perfect and reliable automatic H-beam production line. The H-Beam Automatic Welding Production Line is mainly used for automatic submerged arc welding of box beams or H-beam structures.
Product Details
Function:H beam Box beam welding Assemly and flange sraightening
●Web height: 200-2000㎜
●Web thickness: 6-25㎜
●Flange width: 150-800㎜
●Flange thickness: 6-30㎜
● Equipped with 2 sets of Chengdu Huayuan digital inverter MZ-1250B power supply
New
New Assembly-Welding-Straightening compares to with traditional separate equipment：
No. | Traditional separate 3 machines | Assembly-Welding-Straightening 3in1 machine |
1 | The use area of production site is about 4000 square meters | The use area of production site is about 2000 square meters |
2 | About 4 operators of four major pieces | Welding machine 2 people operate |
3 | The total amount of traditional equipment power consumption is about 250kW | A machine electricity for a welding machine 155KW |
4 | Need to form a vertical welding assembly after welding | No need to assemble and directly submerged arc welding |
5 | Traditional equipment requires driving and hanging 8 times | It only takes 2 times to complete the driving hanging |
6 | Traditional machines are cold correction methods | The work mode of the welding machine is easy to correct |
7 | Traditional units stand up to about 3 driving driving driving | Only one operation of the operation equipment is driving |
8 | Traditional dragon door welding requires 4 welding | Structural parts can be formed in secondary welding |
9 | Gantry type submerged arc welding machine welding workpieces need to invest in V -shaped frames and road rail contract costs around 5000usd | No need to invest in V -shaped frames and road rails and other expenses |
