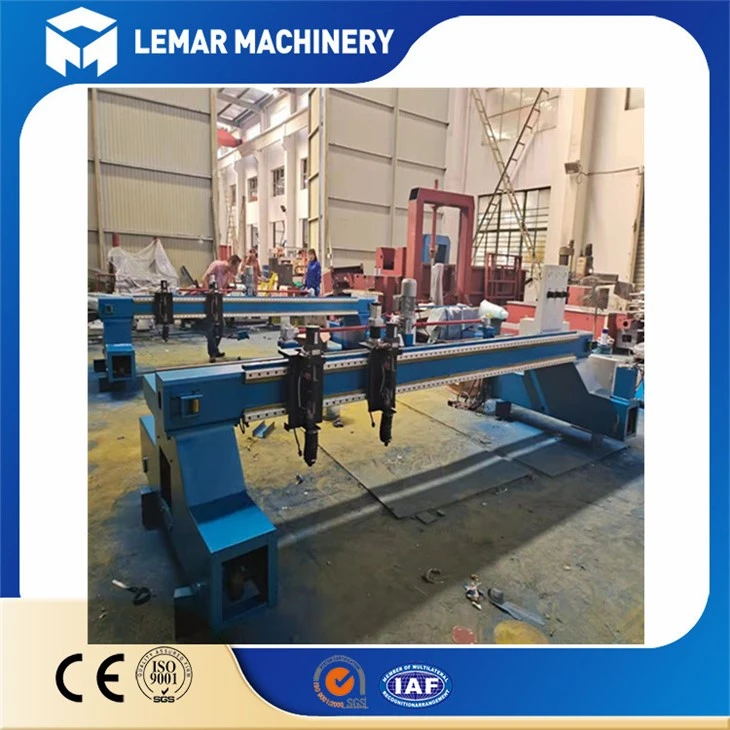

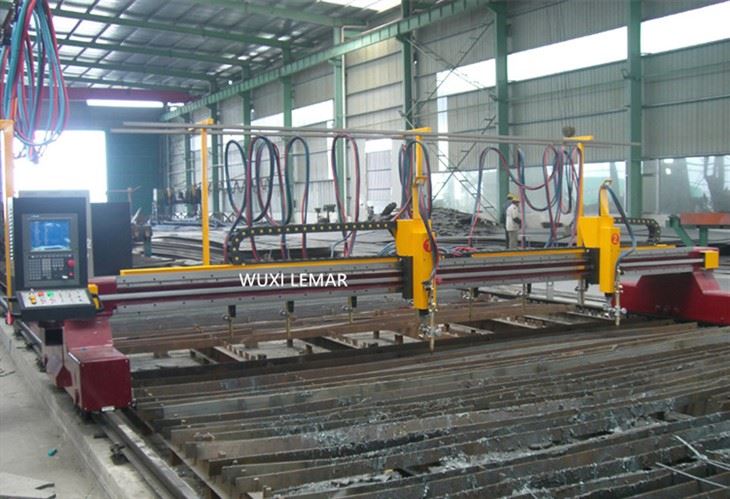

Automatic CNC Plasma Cutting Machine
Introduction
Automatic CNC Plasma Cutting Machine is a computer-controlled, precision machinery and combination of oxygen-acetylene gas cutting three efficient thermal cutting equipment CNC cutting torches can cut any shape of plates. On the other side of the door frame installation how to torch, multiple plates can be used to cut straight, cutting heating and cooling of plate at the same time, eliminate the side bending.
There are many types you can choose according to your actual needs:
1.2 Cutting Heads --1 is Plasma and 1 is Flame oxygen fuel cutting
2.add strips cutting heads--it is according to your beam specification,strip can be 6 groups or 9 groups.
3.Plasma Flame and strips together to get higher efficiency.
Products parameters
|
Model |
Driving form |
Rail distance |
Cutting thickness |
Cutting speed |
Max speed |
Cutting width |
Vertical range of cutting torch |
|
CNCI-3000 |
Single |
3000mm |
6-200mm |
100-750rpm |
6000mm |
2100mm |
150mm |
|
CNCI-4000 |
Single |
4000mm |
6-200mm |
100-750rpm |
6000mm |
3100mm |
150mm |
|
CNCI-5000 |
Double |
5000mm |
6-200mm |
100-750rpm |
6000mm |
4100mm |
150mm |
Products Description
Equipment Features
High-precision cutting: cutting accuracy ± 0.2mm, repeated positioning accuracy ± 0.1mm.
High efficiency and flexibility: cutting speed up to 20m/min (thin plate), support complex graphics (such as serrated, curve) fast switching.
Energy saving and environmental protection: compared to flame cutting, energy consumption is reduced by 30%, and smoke and dust are centrally treated (in line with ISO 14001 standard).
Intelligent operation: automatic perforation, corner deceleration, collision detection, support offline programming and remote monitoring.
Selection Of Key Parameters
cutting ability: maximum cutting thickness (such as air plasma cutting carbon steel ≤ 50mm), material type.
Table size: standard specification 1.5 × 3m to 6 × 20m, customization requirements are optional.
Power supply: determine the cutting efficiency and energy consumption (such as 120A power supply is suitable for carbon steel below 20mm).
Numerical control system function: whether to support 3D cutting, automatic edge seeking, multi-torch synchronization.
Extended configuration: such as automatic loading and unloading system, laser assisted positioning, real-time quality inspection module.
customer visit
