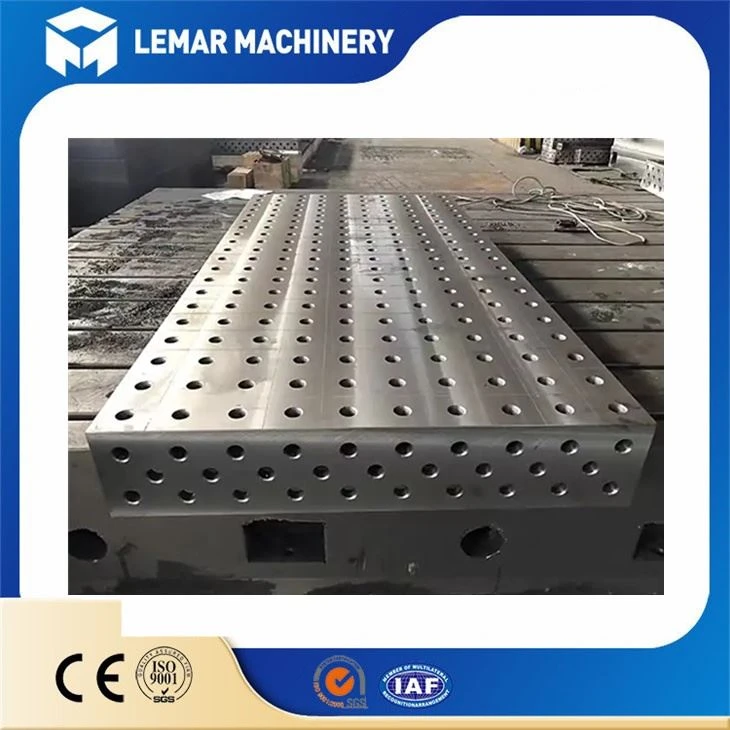

High Cost Performance Welding Fixture Table

Structural Features:

High Cost Performance Welding Fixture Table, in layman's terms, is a "useful and affordable welding workbench". It is a modular and standardized tooling fixture platform mainly used for accurately and efficiently positioning and clamping workpieces to complete processes such as welding, assembly, and inspection.

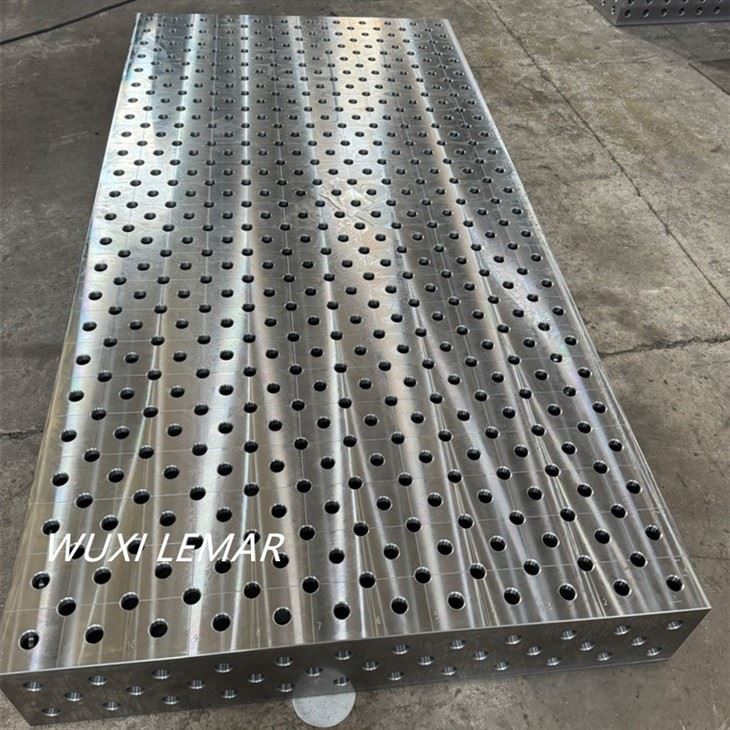

The welding platform is the foundation, providing a sturdy tabletop with a standard hole system.

Cost-effectiveness is the key, meaning it is not the top-of-the-line or most expensive product, but one that achieves the best balance between performance, quality, durability, and price. It can meet the majority of production needs without causing unnecessary cost waste.

3D Flexible welding platform china factory

Products parameters

table details

Products Description

Main components

High Cost Performance Welding Fixture Table usually includes:

Platform body:

Material: Usually made of high-strength cast iron or high-quality carbon steel.

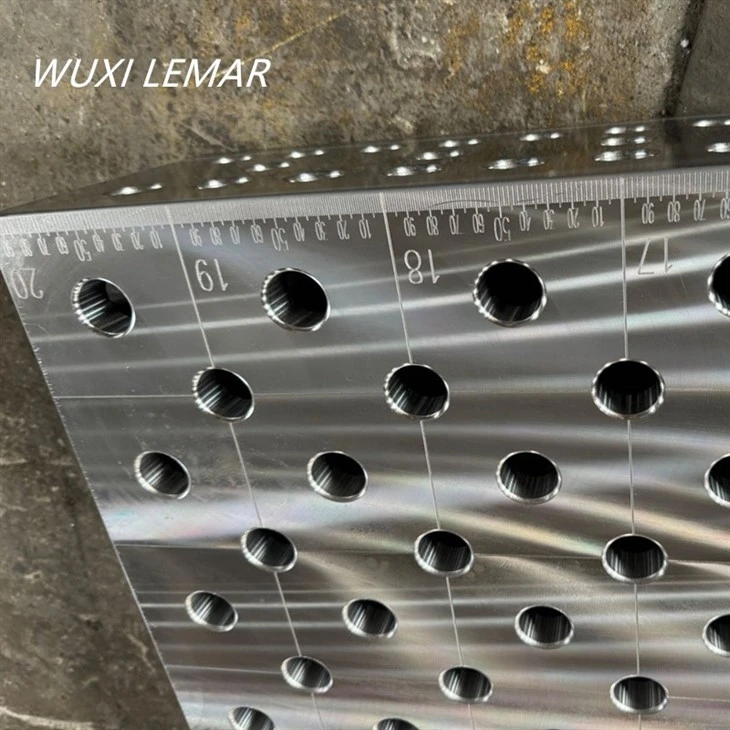

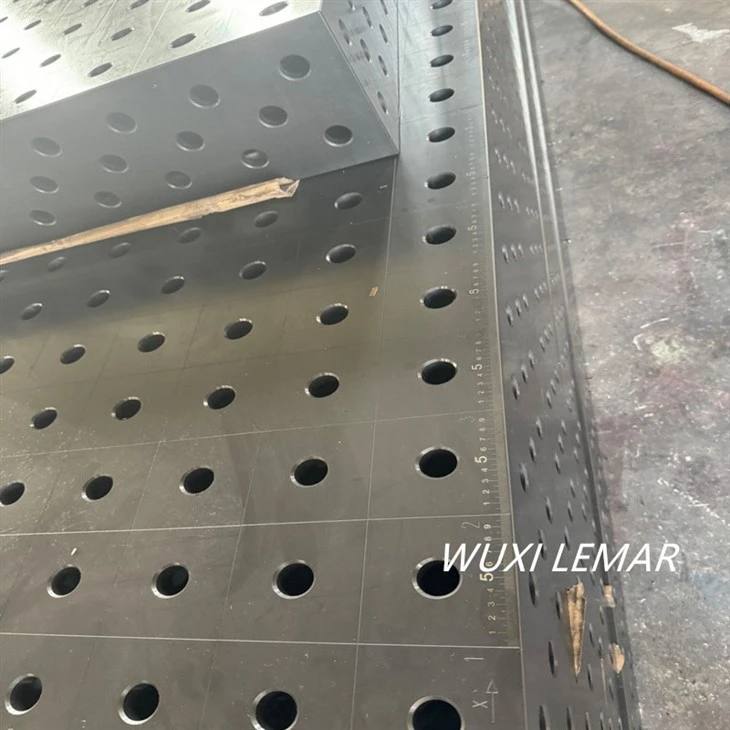

Working surface: Covered with precision holes and slots arranged at standard intervals (usually D28 or L-shaped hole systems). These holes are used for inserting various functional accessories.

Heat treatment: The table surface undergoes heat treatment such as quenching, giving it high hardness, high wear resistance and good stability.

Functional accessories (the core of its flexibility):

Positioning components: Locating pins, positioning blocks, etc., used to determine the position of the workpiece.

Clamping components: Quick clamps, pressers, bolts, etc., used to firmly fix the workpiece.

Supporting components: Support blocks of various heights, angle devices, V-shaped blocks, etc., used to support workpieces of different shapes.

Special modules: Special fixture modules designed according to specific products, which can be quickly installed on the platform.

High Cost Performance Welding Fixture Table is essentially a "smart" industrial infrastructure investment. Through its standardized modular design and reasonable pricing, it provides strong support for flexible production in small and medium-sized enterprises as well as large workshops.

It not only solves the problem of "having a place to weld" but also addresses how to carry out welding production "faster, better, and more economically". If you are troubled by issues such as frequent product model changes, high fixture costs, and unstable welding accuracy, investing in a cost-effective welding platform is undoubtedly a very wise choice.
