Product Description:

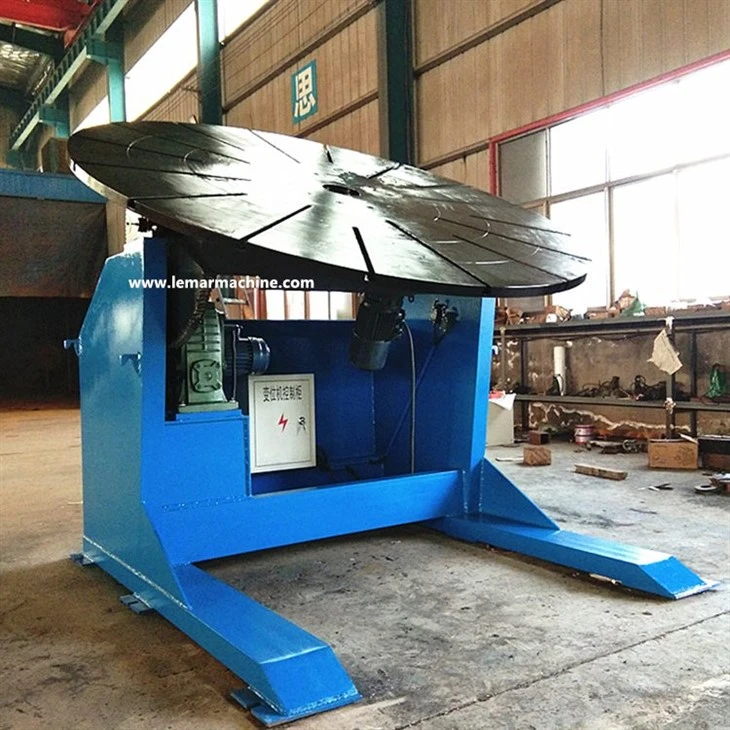

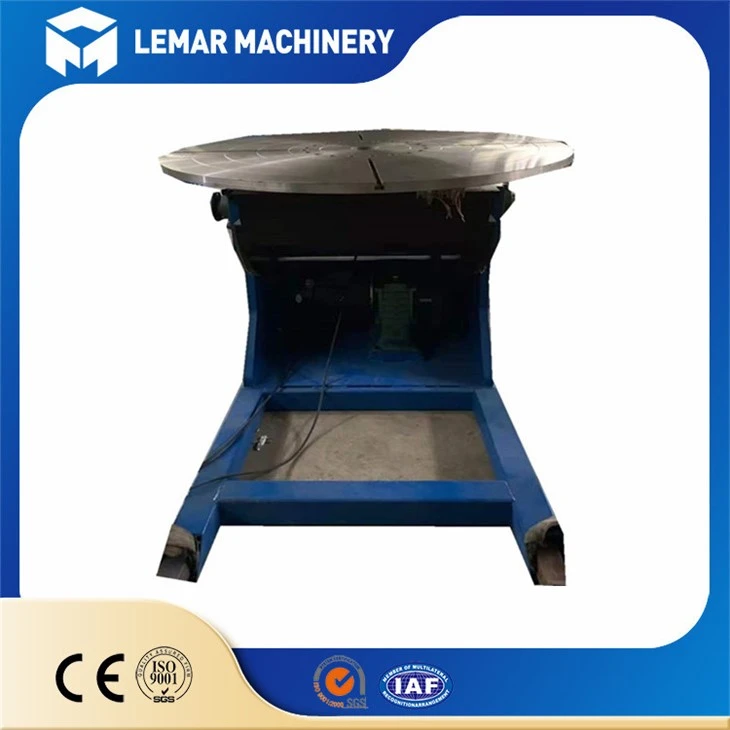

Welding positioner is a kind of automatic pipe welding machine for construction, chemical, power industry and etc. This 1000kg welding and rotating turntable can lift, turn and rotate the work piece to make the metal work-piece in the best welding position. We produce tilt type, elevator type, double column rotary type and others. The welding positioner we produced can be matched with welding manipulator to become welding centre, and can also be matched with robotic machine to realize automatic welding operation.
Product Characters:
1.Horizontal Loading weight:1000kg/Vertical Loading weight:500kg

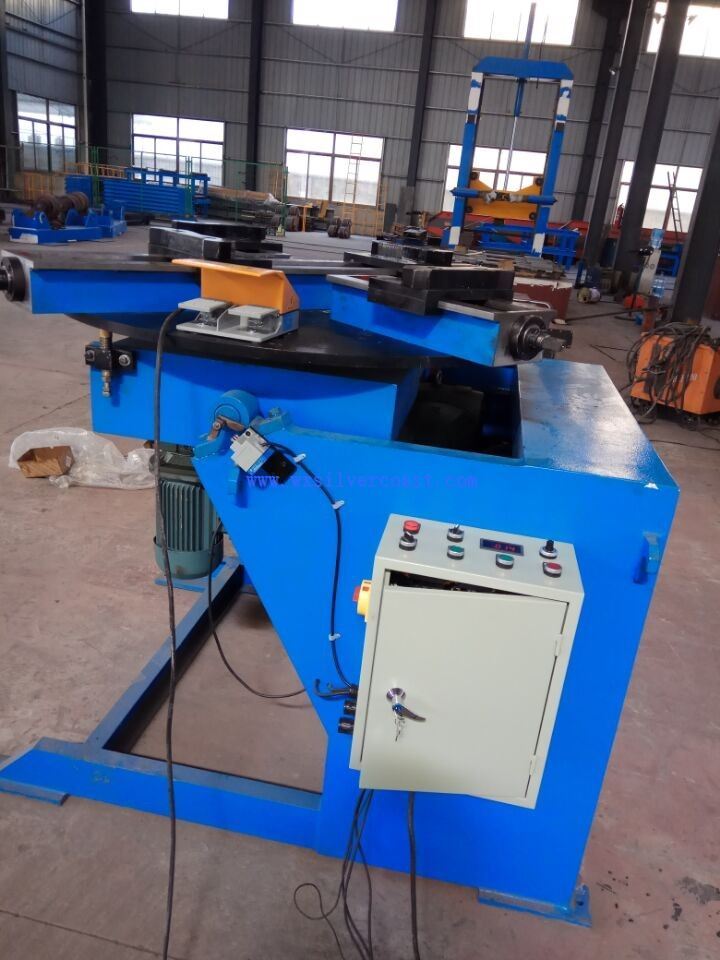

2.Welding positioner is generally made of rotary table, flip mechanism and electric control system, through flipping and rotation of the worktable to made the workpiece fixed to it reaching the desired angle for welding and assembly.
3.Worktable rotary speed is frequency variable speed control type, and can obtain the optimum welding speed.
4.Because of eccentricity and center of gravity distance, for workpiece that is longer and more position offset, it is needed to select slightly larger models. Standard welding positioner can not meet all kinds specifications of workpiece, so when you choose the product, it is required to provide the workpiece shape and weight, as well as processing techniques, we will provide the appropriate solution for reference.
Technical Parameters:
Max. Loading Weight:1000kg
Overturning Velocity:0.4rpm, 0-90°
Rotating Velocity:0.09-0.9rpm, 0-360°
Working table over turn mode: electrical, with control pedal.
Size of Working Table:Φ1200mm
Turning Angle:0-900
Speed Adjustment Way: AC frequency stepless adjustment
Rated load Max Eccentricity:150mm
Rated load Max gravity center distance:200mm
Max Rotating Diameter When 90°:Φ1750mm
Rotating Motor Power:1.1kw
Overturning Motor Power:1.1kw
Power:380V/50HZ, Three-phase five-wire system
