Product Description:

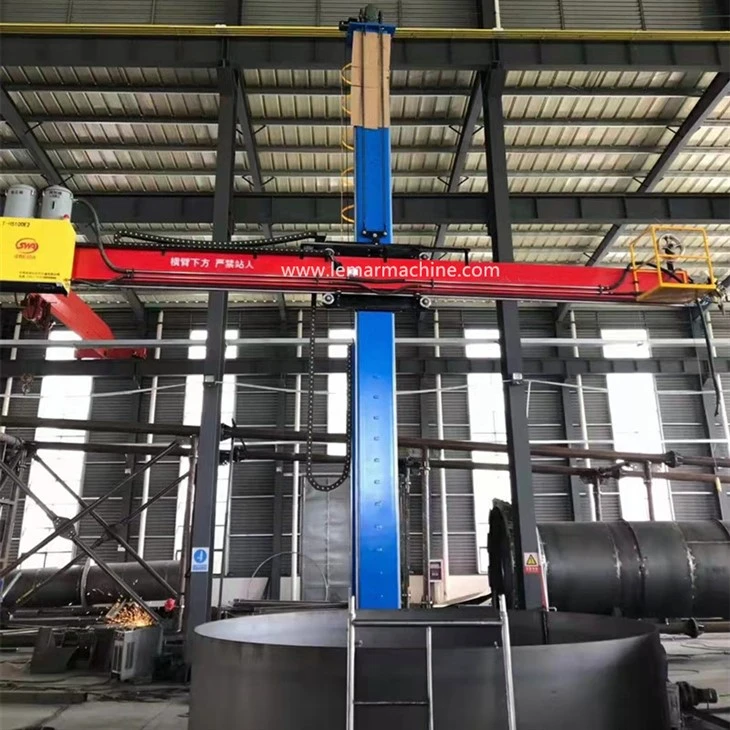

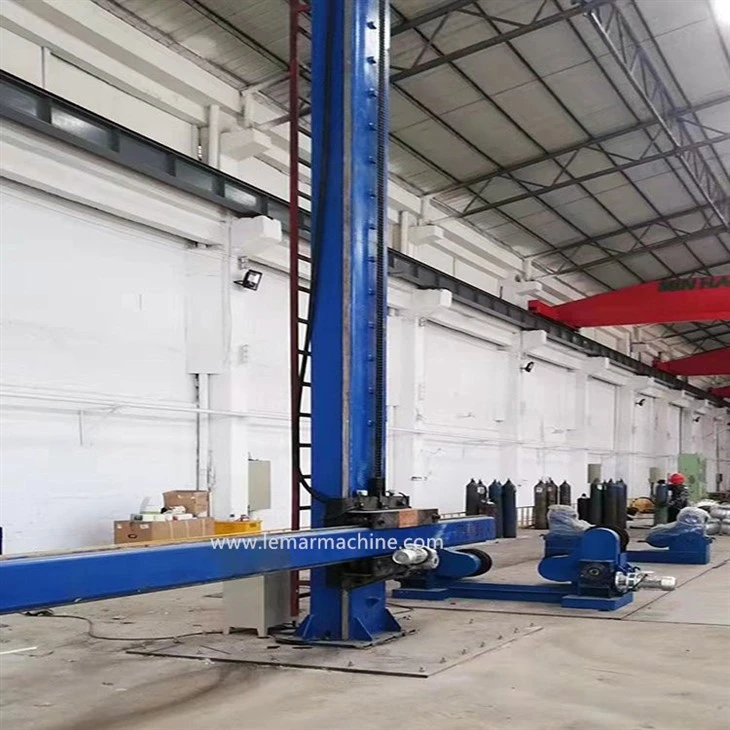

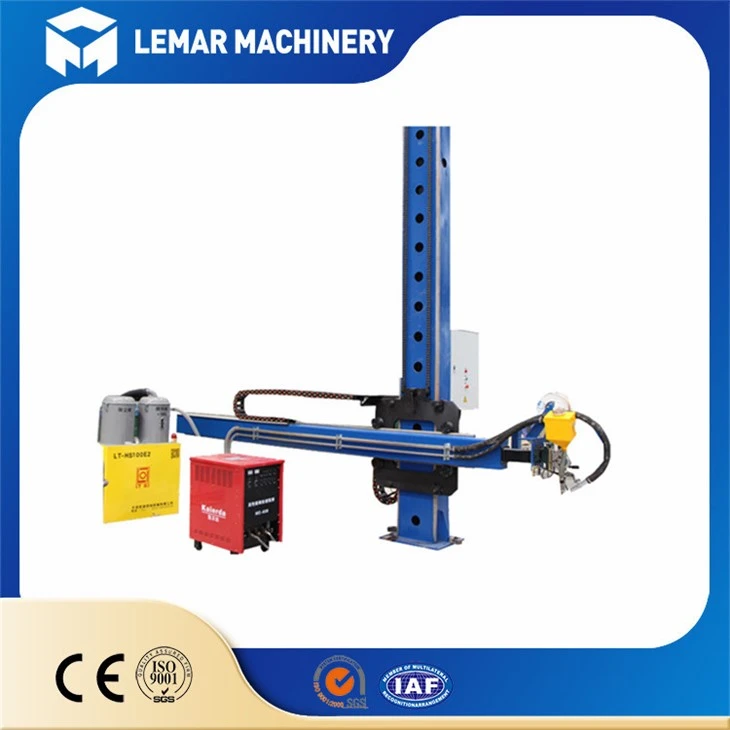

Automatic Column And Boom Welding Machine, also known as welding manipulator, is a high-precision, highly integrated active mechanical equipment that can be used in conjunction with welding roller racks and welding positioners to Realize welding automation.
Product Features:
1.The column is a rectangular beam and the guide rail is 16Mn steel.
2.The column is assembled by sheet metal, the welding internal stress is treated after welding, and then machined, the rectangular guide rail is more stable and reliable.
3.The guide rail is processed by large-scale gantry milling, which has the advantages of small processing deformation and high surface accuracy.
4.The front end of the welding arm is equipped with an electric cross adjustment mechanism, which can align the welding gun to the position of the welding seam to be welded, and the adjustment is convenient. Additional auxiliary devices such as ladders and top guards are convenient for users to adjust, maintain and ensure safety.
Specification:
| HJ4040 | HJ5050 | HJ6060 | HJ7070-8080 | HJ9090-120120 | ||
| Structure type | Optional:Fixed type,Manual rotation,Electric rotation,Moving and rotation | |||||
| Lifting stroke (mm) | 1500-3000 | 4000 | 5000 | 6000 | 7000-8000 | 9000-12000 |
| Telescopic stroke (mm) | 1500-3000 | 4000 | 5000 | 6000 | 7000-8000 | 9000-12000 |
| Speed regulation mode of wishbone | Frequency | |||||
| Lifting speed | 450mm/min | 1000mm/min | ||||
| Telescopic speed (mm/min) | 100-1000mm/min | |||||
Small distance between the lower edge of the cross arm and the track surface (mm) | 1100 (mobile rotary) 950 (fixed rotary) | 1118 (mobile rotary) 1170 (fixed rotary) | ||||
Allowable large load in front of cross arm (kg) | 100 | 200 | 300 | |||
| Column rotation | ±180° | |||||
| 0.36rpm or manually | ||||||
| 2000 | ||||||
| Trolley walking | 1200 | 2000 | 2200 | 2500 | ||
| Inner gauge of trolley (mm) | Manual and pneumatic 2 options | |||||
| locking mechanism | Wired Hand Control Box | |||||
Remote control box cable power supply | 220V/380V/400V/415V/440V/460V-3P-50HZ/60HZ | |||||
