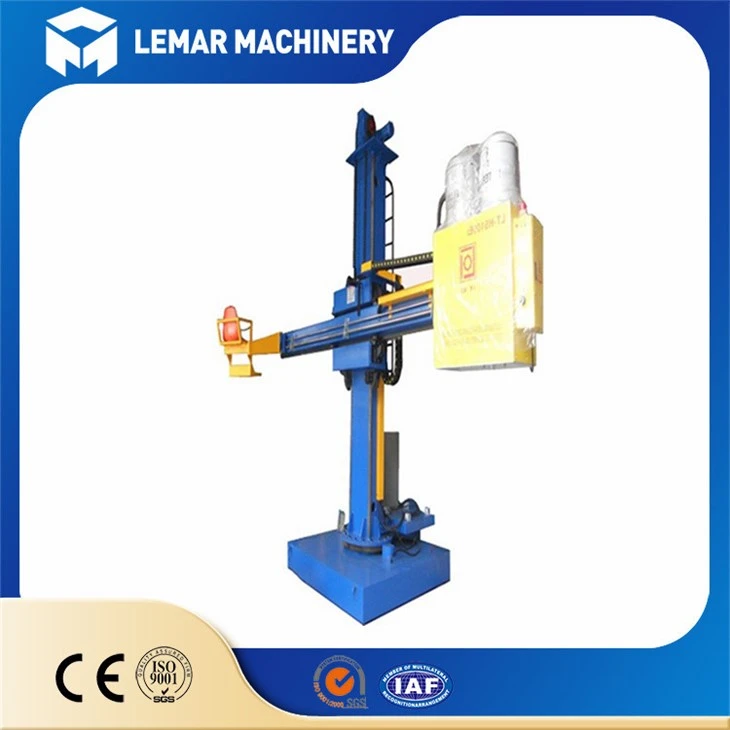

Automatic Welding Manipulator Machine
The Automatic Welding Manipulator Machine has the advantages of good force on the guide seat, wide contact surface of the guide wheel, stable and reliable transmission, etc. The equipment is mainly composed of a column, a cross arm, a guide device, and a lifting mechanism. The horizontal movement of the welding manipulator's cross arm is realized by a motor driven by a special worm gear reducer. The movement speed can be adjusted arbitrarily within a certain range according to the welding needs.
Products parameters
MZ-1000 Welding machine for Automatic column and boom welding manipulator
|
No. |
Name |
MZ-1000 |
|
|
1 |
Output characteristics |
Drop feature |
|
|
2 |
Power input voltage/frequency |
3 phase 380V±10%/50Hz |
|
|
3 |
The rated power output |
KW |
52 |
|
4 |
Rated input current |
A |
83 |
|
5 |
Rated duty cycle |
100% |
|
|
6 |
Current adjusting range |
A |
60-1000 |
|
7 |
Voltage adjustment range |
V |
20-50 |
|
8 |
Output open circuit voltage |
Submerged arc welding：90±10 Manual welding：75±5 |
|
|
9 |
Full of efficiency |
92% |
|
|
10 |
Full load efficiency factor |
0.88 |
|
|
11 |
Wire diameter |
mm |
3-6 |
|
12 |
Wire feeding speed |
cm/min |
40-450 |

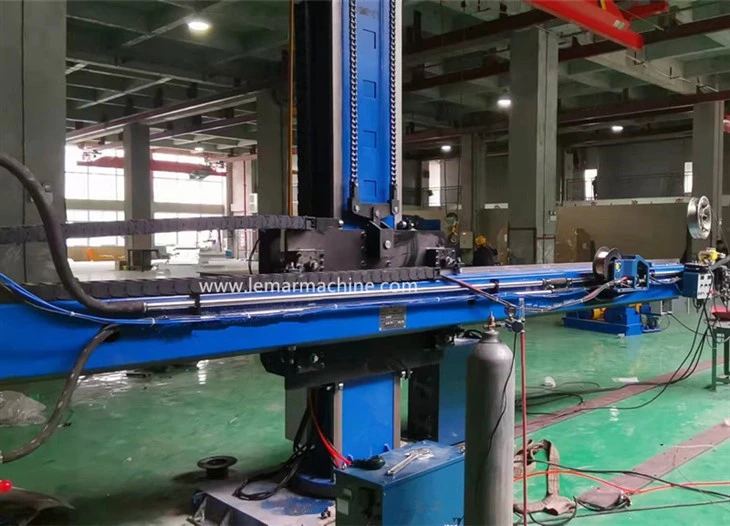

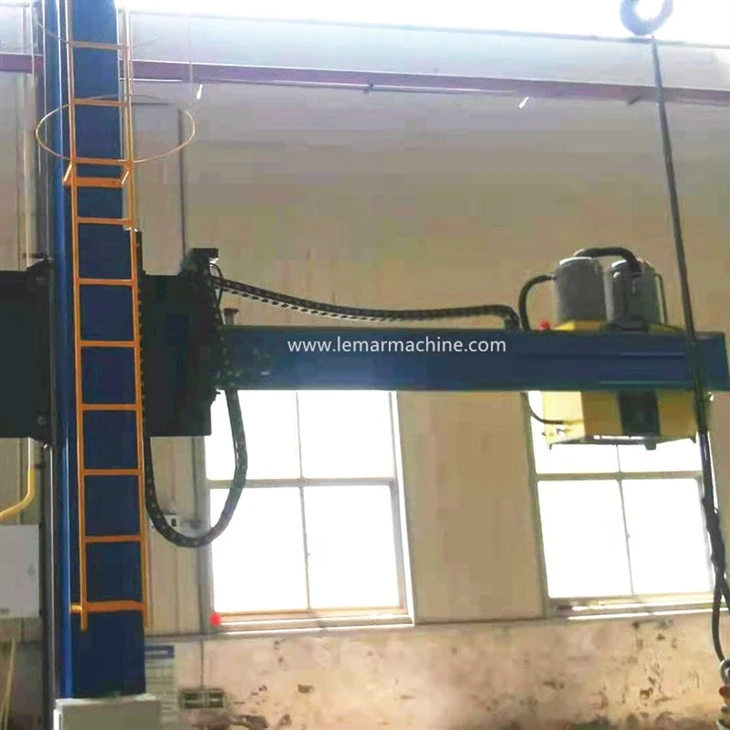

Products Display
