Product Description

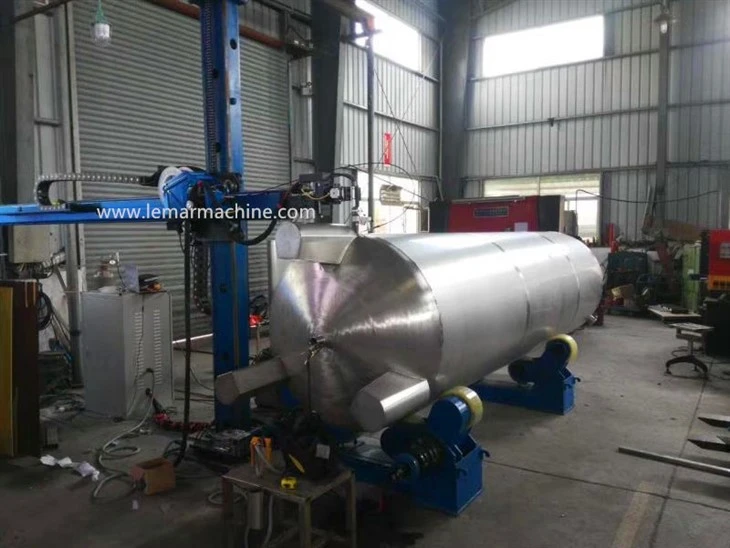

The cantilever welding platform is an equipment for automatic welding of elastic longitudinal seams and outer circumferential seams.

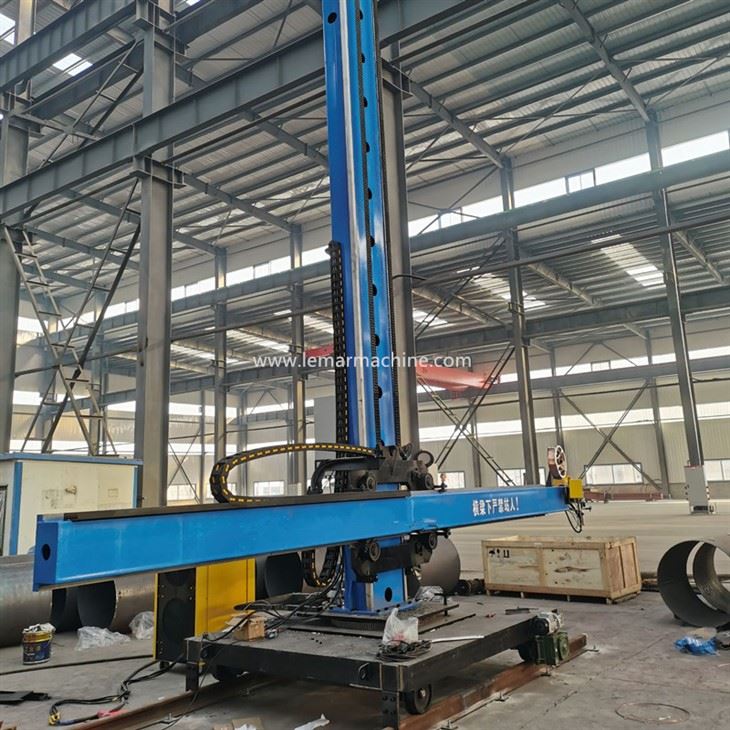

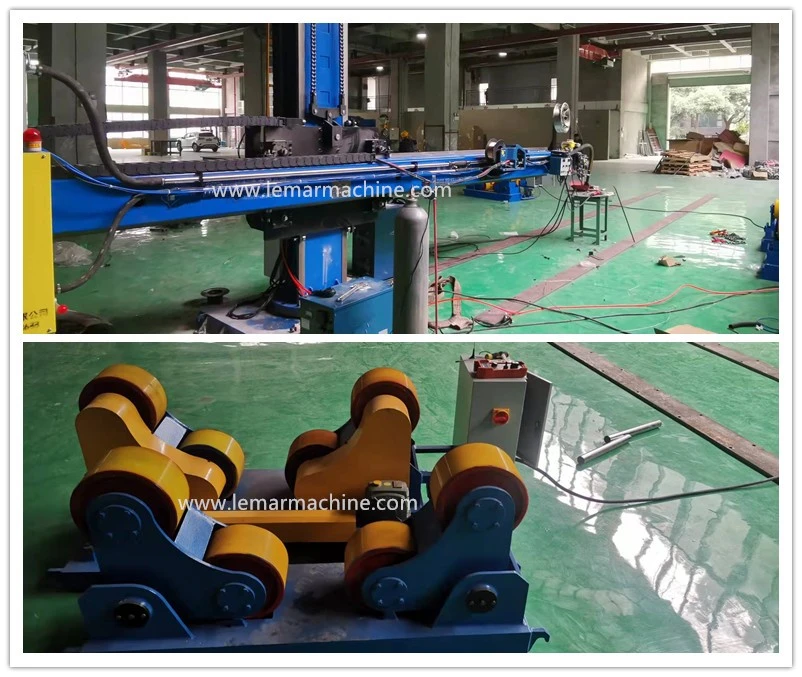

It also named Column and boom welding machine or welding manipulators,composed of a column, a walking mechanism, a lifting mechanism, a lifting platform, and a control system. Frame and automatic arc submerged welding are used together to realize the welding of the outer longitudinal circumferential seam, the walking positioning, and the small bending. At the same time, it can realize the welding machine and the variable station body.
Specification:
| Structure type | Optional:Fixed type,Manual rotation ,Electric rotation,Moving and rotation | ||||||
| Lifting stroke (mm) | 1500-3000 | 4000 | 5000 | 6000 | 7000-8000 | 9000-12000 | |
| Telescopic stroke (mm) | 1500-3000 | 4000 | 5000 | 6000 | 7000-8000 | 9000-12000 | |
| Speed regulation mode of wishbone | Frequency | ||||||
| Lifting speed | 450mm/min | 1000mm/min | |||||
| Telescopic speed (mm/min) | 100-1000mm/min | ||||||
Small distance between the lower edge of the cross arm and the track surface (mm) | 1100 (mobile rotary) 950 (fixed rotary) | 1118 (mobile rotary) 1170 (fixed rotary) | |||||
Allowable large load in front of cross arm (kg) | 100 | 200 | 300 | ||||
Column rotation | ±180° | ||||||
| 0.36rpm or manually | |||||||
| 2000 | |||||||
| Trolley walking | 1200 | 2000 | 2200 | 2500 | |||
| Inner gauge of trolley (mm) | Manual and pneumatic 2 options | ||||||
| locking mechanism | Wired Hand Control Box | ||||||
| Remote control box cable power supply | 220V/380V/400V/415V/440V/460V-3P-50HZ/60HZ | ||||||
| power supply | Gas shielded welding, mig welding, tig welding | ||||||
| Gas shielded welding is suitable for plate thickness ≥ 3mm. The main applicable materials are: carbon steel stainless steel aluminum plate | |||||||
Submerged arc welding is mainly used for ≥6mm plates, mainly carbon steel,but also stainless steel. It is recommended to choose a water-cooled welding torch and a water-cooler to prevent the welding temperature from being too high. | |||||||
Matters needing attention when using welding manipulator:
①The welding tongs cannot be used after being immersed in water to cool down after being overheated;
②When loading and unloading acetylene gas cylinders or LPG cylinders, please handle with care, and do not throw, bump, slip, roll, etc.;
③When performing carbon dioxide gas shielded welding, preheat the carbon dioxide gas for 15 minutes before operation;
④The length of the welder's second measuring handle and ground wire should not exceed 30 meters;
⑤The no-load voltage of the communication welding machine shall not exceed 80 volts;
⑥ After the welding on the manipulator is completed, cut off the power supply, separate the ground wire from the barrier wire, and ensure that the sparks of the molten slag are calmed down before leaving the site;
⑦The length of the power cord measured by the welding machine at one time does not exceed 5 meters;
⑧It is strictly forbidden to replace the ground wire with metal objects such as metal pipes, metal feet, tracks, and structural steel bars.
