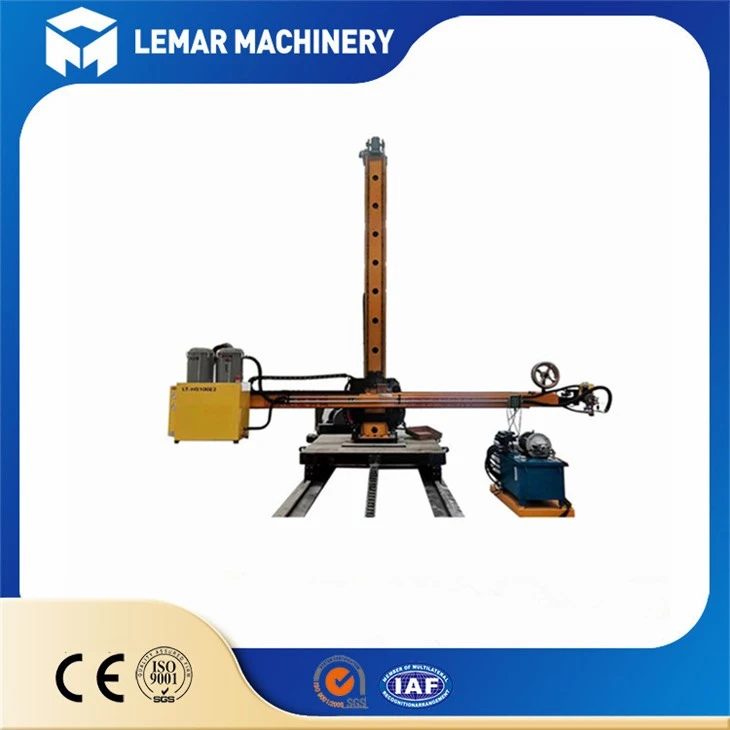

Automatic Column And Boom Welding Manipulator
Automatic Column And Boom Welding Manipulator is suitable for all kinds of circular welds and longitudinal welds.It has the advantages of advanced technology, reliable quality and simple operation.
It is mainly composed of beams, drag chains, lifting systems, columns, sliding seats, machine heads and carriages, workstation controllers, welding oscillation,flux recovery,etc.
Products Description
|
Model |
HJ3040 |
|
Effective boom extension stroke |
4m~6m |
|
Effective vertical stroke |
3m |
|
Boom extension speed |
120-1200mm/min |
|
Boom elevation speed |
500mm/min |
|
Column rotation degree |
180°(manual) |
|
End loading |
100KG |
|
Trolley travel speed |
2000mm/min |
|
Centre distance |
1200mm |
Products Description
1. Fixed manual rotation
2. Fixed electric rotation
3. Fixed electric walking
4. Walking and turning, the default is electric specification.
