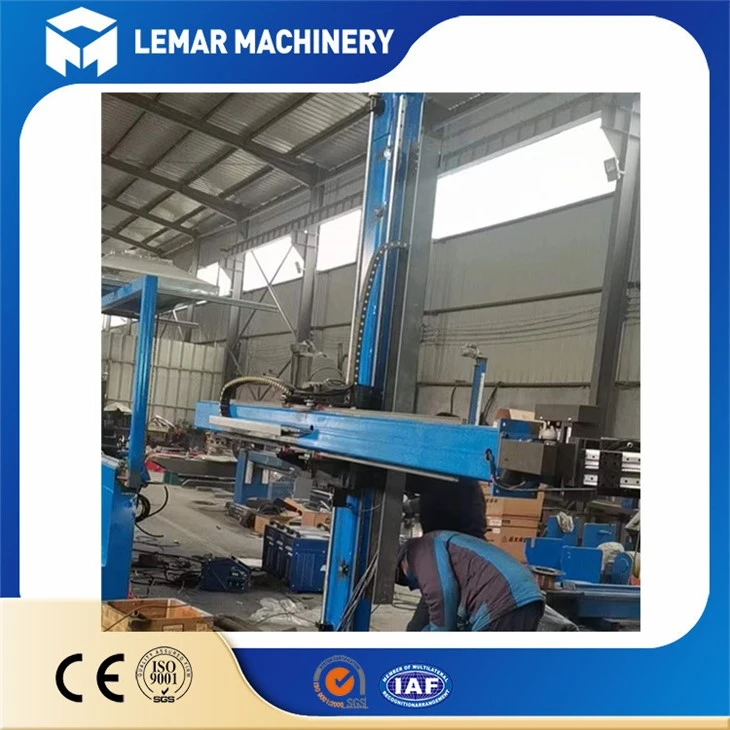

Features:
1.The column for the rectangular beam, rectangular double-track structure, high-quality carbon steel guide material. The column is welded and assembled with standard profiles (the internal design has inner ribs, which can prevent cantilever bending of the column). After welding, the internal stress is machined. Column and guide block clamping method for each guide are three surface clamping, more stable than the use of triangular rails and reliable.
2.The same arm assembled with sheet metal forming, rectangular double-track structure, the guide material for high-quality carbon steel, tempering after welding and then machining, to ensure straightness after processing and equipment operation of the stability. In addition to the horizontal arm welded with standard profiles assembled (the internal design of the inner ribs, can effectively prevent the stretching arm bending, the arm of the telescopic sag and degree of winding was further control).
Main equipment technical parameters:
| No. | Item | Unit | HJ3030 |
| 1 | Cross arm lift stroke | mm | 3000 |
| 2 | Cross arm telescopic stroke | mm | 5000 |
| 3 | Cross arm rail width | mm | 25 |
| 4 | Width of column guide rail | mm | 25 |
| 5 | Guide wheel support | Rectangular rail (three sides support) | |
| 6 | Telescopic speed of cross arm | mm/min | 120-1200 |
| 7 | Drive mode | ||
| 8 | Speed regulation method | ||
| 9 | Cross arm telescopic motor power | kW | 0.55 |
| 10 | Boom lift speed | mm/min | 500 |
| 11 | Drive mode | Chain wheel and chain pairs | |
| 12 | Column lifting motor power | kW | 1.1 |
| 13 | Cross arm front bearing capacity |
|
50 |
| 14 | Control line length | m | 10 |
| 15 | Equipment structure type | fixed | |
| 16 | Cross stroke | Up and down | mm |
| Left and right | mm | 100 | |
| 17 | Min diameter of cylinder | mm | big than Φ500 |
| 18 | Cross arm lowest point | mm | 500(Effective location) |
| 19 | Height of cross arm | mm | 4000(Effective location) |
Product specifications
|
Model |
HJ3040 |
|
Effective boom extension stroke |
4m~6m |
|
Effective vertical stroke |
3m |
|
Boom extension speed |
120-1200mm/min |
|
Boom elevation speed |
500mm/min |
|
Column rotation degree |
180°(manual) |
|
End loading |
100KG |
|
Trolley travel speed |
2000mm/min |
|
Centre distance |
1200mm |
Feature
1. In order to make the boom positioning stable and stable, the column is equipped with a brake motor.
2. The guide frame has safety pins and the column has a row of safety holes. When the chain breaks, the safety pin will enter the safety hole. In this way, serious accidents were successfully avoided.
3. The guide frame connects the boom and the column to make vertical adjustment and horizontal extension possible.
4. The boom is also equipped with a cross electric adjuster, which can adjust the welding position.
5. The stepless speed regulation frequency converter is used to control the extension of the boom, with stable and reliable performance. And the converter has a fault detection mechanism, and an alarm will be issued when a fault occurs.
6. This column arm manipulator adopts a fully sealed oil immersion lubrication method to prevent dust, slag and other impurities.
