20 years experiene in Automatic Welding and CNC Cutting.

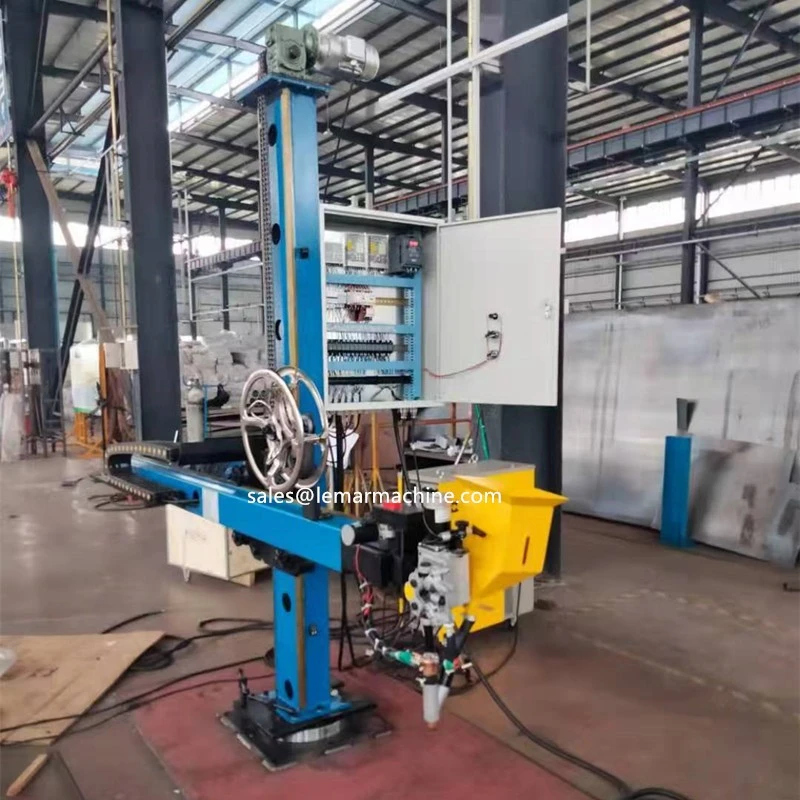

Cross Welding Manipulator is an important welding auxiliary equipment, mainly used to assist in completing various types of welding operations, especially in the welding of complex structures.
It is combined with welding rollers and welding positioners to automatically weld the internal and external circumferential seams, fillet welds, and internal and external longitudinal seams of components. It can choose different structural forms according to user needs, such as fixed, rotary, full position, etc.
| Model | HJ2020 |
| Effective stroke | 2000*2000mm |
| Rotate type | Electric or Manual |
| Front end loading weight | 20kg |
| Speed adjust mode | Frequency |
| Swing stroke | max to 50mm |
| Arc welding stroke | max to 50mm |
Cross Welding Manipulator mainly consists of guide rails, tilt adjustment mechanism, vertical guide mechanism, welding gun clamp and welding gun. The tilt adjustment mechanism allows the welding gun to rotate positively and negatively around the center.
