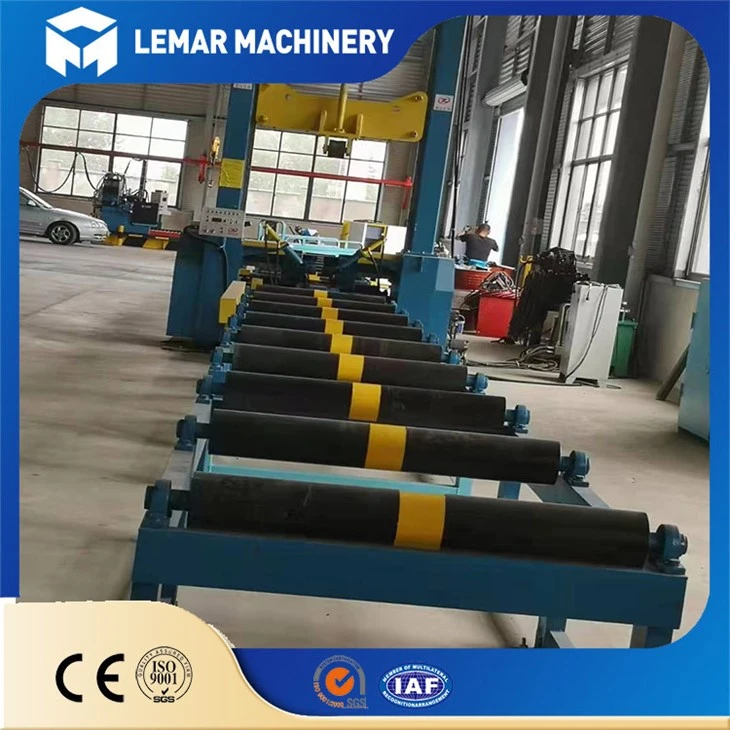

Heavy Duty H Beam Assembling Machine

Introduction

Heavy Duty H Beam Assembling Machine is a piece of equipment used to assemble heavy duty H-beams. H-beam is a steel structure material commonly used in buildings and bridge structures with high strength and stability.

Products features

The Heavy Duty H Beam Assembling Machine is made of high-quality materials to ensure that it can handle the tasks of heavy construction operations. It has a sturdy frame designed to provide support and stability, allowing for precision and accuracy during assembly.

The machine is also equipped with state-of-the-art technology that enables it to operate efficiently and effectively. It is easy to use and requires minimal training to operate, making it a valuable asset to any construction project.

Additionally, the Heavy Duty H Beam Assembling Machine is designed with safety in mind. It is equipped with safety features to prevent accidents and injuries, ensuring workers can operate the machine with confidence.

Products composition

Assembling machine:(Structure Principle)
(1)Host machine:Including Main drive roller bearing power components, the door frame device, clamping device of web, wing powder compact device, hydraulic alignment device, etc.
Main drive roller moving roller components:The motor drives the cycloidal pinwheel reducer, and then through the sprocket, chain transmission, drive the main drive roller rotation (attached drive roller 2 group), making walking hbeam.
Web clamping device:Two groups of web plate fastening device for synchronous movement, through the coupling and the shaft connection between two groups.Total power of the motor drive gear reducer, and then through a screw transmission so that the web clamp sliding seat together to walk in the middle.

Web clamping mechanism of two side by clamping bolt tightening on the sliding seat directly, through the shaft linkage with open or shrink, to meet the requirements of the web the clamping, realized the machine automatically.
(2)the pull rod of the system:On the bar system mainly includes:Pull rod box, rod oil cylinder, pull rod.When not set of wing, web transmission into the machine, the wings, not in the required position precision, web and web need support at this time.Rod for the system is able to wing, web preliminary positioning and its process are respectively, by the surface tension in the oil cylinder and the web of the tensioning oil cylinder control.Pull rod box by pull rod connected between each other.

(3)Input roller:Input roller of H beam assembly machine is mainly with the input process of hbeam, it consists of, passive and active raceway groove, the arrangement and the spacing between rolling suitcase.

(4)Output roller:Output of raceway is mainly with the output process of hbeam, it consists of, passive and active raceway groove

(5)Hydraulic system assembly:Hydraulic system mainly includes:Hydraulic pump station, the main pressure cylinder, wing plate positioning cylinder, web positioning cylinder, wing powder tight oil cylinder (3pcs), web clamping cylinder (2pcs), rubber hose, oil pipe, seamless steel pipe.
