Cast Iron Modular Fixture System
Precision. Rigidity. Flexibility.

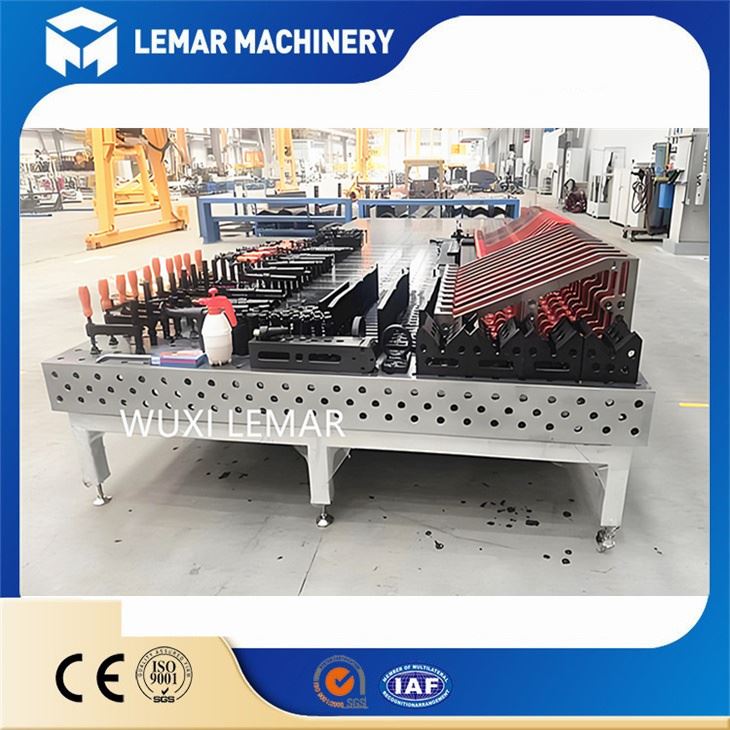

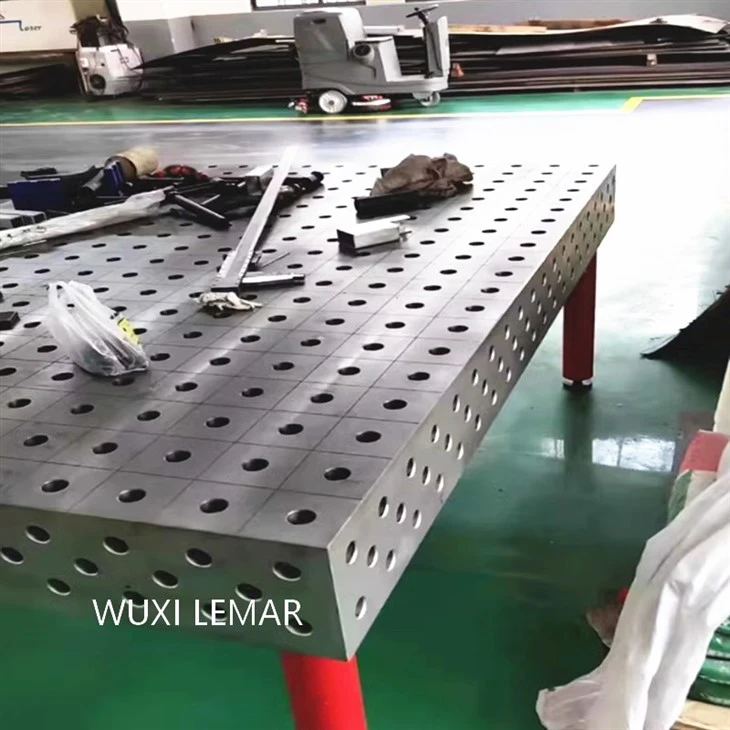

Introducing our Cast Iron Modular Fixture System
– a versatile, high-strength platform designed for machining, inspection, and assembly applications. Built from high-grade cast iron, this system delivers exceptional vibration damping, long-term stability, and repeatable precision across a wide range of manufacturing environments.
high quality
advanced equipment
professional team
global shipping
Technical Specifications
| Parameters | Specification |
|---|---|
| Base Material | High-grade Mechanite / Gray Cast Iron |
| Surface Finish | Ground flatness ≤ 0.02mm / 1000mm |
| Hole Pattern | Standard grid: 100mm × 100mm (customizable) |
| Hole Type | Precision-bored Ø28mm with threaded inserts |
| Hardness | Can reach HV550-600 after nitrided treatment |
| Interchangeability | Fully compatible with industry-standard modular fixturing components |
Our Service Processes
Our free service hotline:+86 159 952 699 47(Eva summer)
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receive
5
>>
After-sale Services
6
Core Advantages
✅ Superior Rigidity & Damping
Cast iron construction provides excellent vibration absorption, improving surface finish and tool life during heavy machining.
✅ True Modular Flexibility
Reusable components allow endless configuration possibilities. Build, disassemble, and reconfigure fixtures in minutes.
✅ High Precision & Repeatability
Grid-based hole patterns and precision-ground surfaces ensure accurate positioning down to ±0.01mm.
✅ Long-Term Durability
Stress-relieved cast iron resists deformation over time, ensuring consistent performance for years.
✅ Fast Setup, Less Downtime
Eliminate waiting for custom fixtures. Respond to production changes instantly.
System Composition
The system includes a wide range of modular components:
Base Plates:
T-slotted or dowel-pinned grids in various sizes
01
Location Elements:
Locating pins, stops, and reference blocks
02
Clamping Elements:
Swing clamps, strap clamps, toggle clamps
03
Support Elements:
Risers, angle plates, and extension blocks
04
Adapter Plates:
For vise, tombstone, or rotary table mounting
05
All components are CNC precision-machined and hardened for long life and interchangeability.
Why choose our cast iron modular fixture system?
In-House Manufacturing:
Full control over quality and precision
Customizable Grid Patterns:
Tailored to your machine table or application
Rapid Delivery:
Standard sizes in stock, custom sizes available
Technical Support:
Application engineering assistance for complex setups
